Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2SC-6R8-RFIXED IND 6.8UH 2.2A 55 MOHM SMD |
0 |
|
Datasheet |
UNI-PAC™ 2SC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.2 A | 3.9A | Shielded | 55mOhm Max | 70 @ 100kHz | 30MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

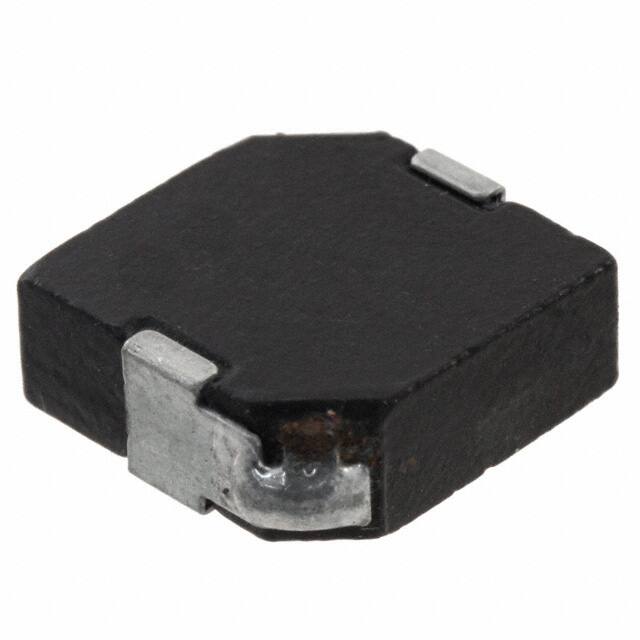

PM13666S-1R0MFIXED IND 1UH 25A 14.4 MOHM SMD |
0 |
|
Datasheet |
PM13666S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 25 A | - | Shielded | 14.4mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
ELJ-FD4R7KFFIXED IND 4.7UH 130MA 3.38OHM SM |
0 |
|
Datasheet |
FD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±10% | 130 mA | - | Unshielded | 3.38Ohm Max | 15 @ 7.96MHz | 30MHz | - | - | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

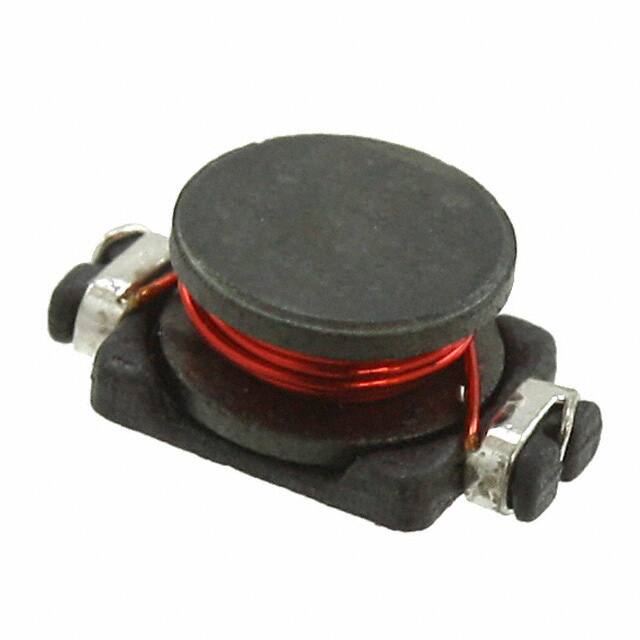

P0770.152NLTFIXED IND 1.5UH 2.6A 50 MOHM SMD |
0 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 2.6 A | 2.6A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SRR1208-181YLFIXED IND 180UH 1.2A 270MOHM SMD |
0 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±15% | 1.2 A | 1.7A | Shielded | 270mOhm Max | 14 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
ISC1812ES181KFIXED IND 180UH 111MA 5.72OHM SM |
0 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 111 mA | - | Shielded | 5.72Ohm Max | 40 @ 796kHz | 4.5MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SCRH124-100FIXED IND 10UH 4.1A 28 MOHM SMD |
0 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.1 A | 4.5A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-331FIXED IND 330UH 780MA 990MOHM SM |
0 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 780 mA | 500mA | Shielded | 990mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
B82111E0000C024FIXED IND 56UH 1.5A 300 MOHM TH |
0 |
|
Datasheet |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.5 A | - | Unshielded | 300mOhm | - | 70MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 1.024" L (6.50mm x 26.00mm) | - |
|
#B952AS-H-121M=P3FIXED IND 120UH 800MA 460MOHM SM |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 800 mA | 970mA | Shielded | 460mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
#B952AS-H-2R7N=P3FIXED IND 2.7UH 4.9A 16 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 4.9 A | 7.3A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
#B952AS-H-390M=P3FIXED IND 39UH 1.4A 150 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.4 A | 1.8A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
#B952AS-H-560M=P3FIXED IND 56UH 1.2A 195 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.2 A | 1.5A | Shielded | 195mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
#B952AS-H-5R1N=P3FIXED IND 5.1UH 3.8A 26 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 5.1 µH | ±30% | 3.8 A | 4.9A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
VLBU6565100T-R12LMAGNETICS |
0 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±15% | 70 A | 69A | Unshielded | 0.18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
FCUL1040-H-R36M=P3FIXED IND |
0 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FCUL1040-H-R18M=P3FIXED IND |
0 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FCUL1040-H-R42M=P3FIXED IND |
0 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISC1812BN102KFIXED IND 1MH 66MA 16 OHM SMD |
0 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 66 mA | - | Shielded | 16Ohm Max | 30 @ 252kHz | 2MHz | - | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ISC1812BN391KFIXED IND 390UH 92MA 8.2 OHM SMD |
0 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 92 mA | - | Shielded | 8.2Ohm Max | 40 @ 796kHz | 3.5MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
