Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP4020CC-R22YIND SMD 0.22UH 13A |
0 |
|
Datasheet |
SRP4020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 220 nH | ±30% | 13 A | 24A | Shielded | 7.3mOhm Max | - | 270MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRP4020CC-R56MIND SMD 0.56UH 7.3A |
0 |
|
Datasheet |
SRP4020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 560 nH | ±20% | 7.3 A | 10A | Shielded | 16mOhm Max | - | 105MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRP4020CC-R68MIND SMD 0.68UH 7A |
0 |
|
Datasheet |
SRP4020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 680 nH | ±20% | 7 A | 10A | Shielded | 19mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRP4020CC-220MIND SMD 22UH 1.2A |
0 |
|
Datasheet |
SRP4020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 22 µH | ±20% | 1.2 A | 1.4A | Shielded | 500mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
AIUR-08-150KFIXED IND 15UH 4.4A 26 MOHM TH |
0 |
|
Datasheet |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 4.4 A | - | Unshielded | 26mOhm Max | - | - | - | -25°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
L08051R2CEWTRFIXED IND 1.2NH 1A 50 MOHM SMD |
0 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.2 nH | ±0.2nH | 1 A | - | Unshielded | 50mOhm Max | 60 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
|
L08051R6CEWTRFIXED IND 1.6NH 600 MOHM SMD |
0 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.6 nH | ±0.2nH | - | - | Unshielded | 600mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
|
L08051R8CEWTRFIXED IND 1.8NH 1A 60 MOHM SMD |
0 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.8 nH | ±0.2nH | 1 A | - | Unshielded | 60mOhm Max | 50 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|

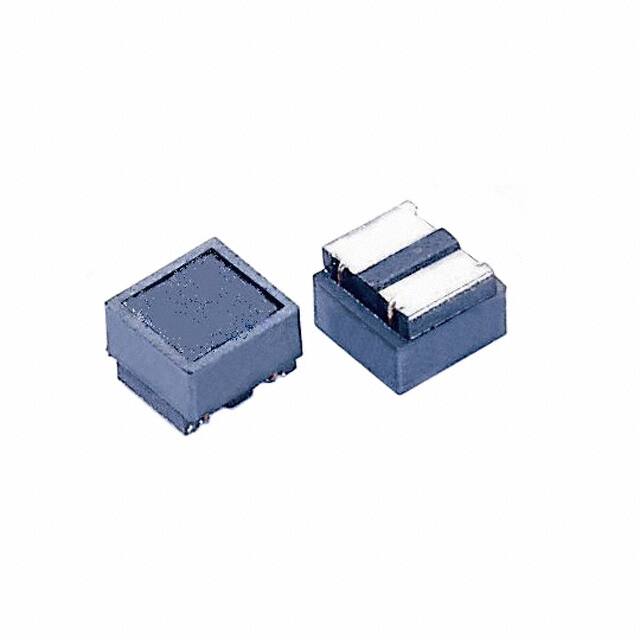

SC1212-102FIXED IND 1MH 145MA 12 OHM SMD |
0 |
|
Datasheet |
SC1212 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 mH | ±30% | 145 mA | 30mA | Shielded | 12Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.091" (2.30mm) |
|
|
SC1212-222FIXED IND 2.2MH 110MA 23.5OHM SM |
0 |
|
Datasheet |
SC1212 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 mH | ±30% | 110 mA | 20mA | Shielded | 23.5Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.091" (2.30mm) |
|
|
SC1212-681FIXED IND 680UH 175MA 9 OHM SMD |
0 |
|
Datasheet |
SC1212 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 µH | ±30% | 175 mA | 37mA | Shielded | 9Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.091" (2.30mm) |
|
|
PM74SH-150M-RCFIXED IND 15UH 1.6A 62 MOHM SMD |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.6 A | 1.35A | Shielded | 62mOhm Max | 31 @ 2.52MHz | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM74SH-2R7M-RCFIXED IND 2.7UH 2.78A 27MOHM SMD |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 2.78 A | 3.1A | Shielded | 27mOhm Max | 10 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM74SH-330M-RCFIXED IND 33UH 1.15A 115MOHM SMD |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.15 A | 900mA | Shielded | 115mOhm Max | 25 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM74SH-102M-RCFIXED IND 1MH 250MA 2.4 OHM SMD |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 250 mA | 150mA | Shielded | 2.4Ohm Max | 90 @ 252kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM74SH-120M-RCFIXED IND 12UH 1.8A 50 MOHM SMD |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.8 A | 1.4A | Shielded | 50mOhm Max | 27 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM74SH-121M-RCFIXED IND 120UH 600MA 420MOHM SM |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 600 mA | 450mA | Shielded | 420mOhm Max | 30 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM74SH-151M-RCFIXED IND 150UH 530MA 480MOHM SM |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 530 mA | 410mA | Shielded | 480mOhm Max | 51 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM74SH-180M-RCFIXED IND 18UH 1.5A 70 MOHM SMD |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.5 A | 1.1A | Shielded | 70mOhm Max | 29 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM74SH-181M-RCFIXED IND 180UH 475MA 660MOHM SM |
0 |
|
Datasheet |
PM74SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 475 mA | 375mA | Shielded | 660mOhm Max | 52 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
