Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR7045-1R5MFIXED IND 1.5UH 3.5A 27 MOHM SMD |
0 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.5 A | 4.5A | Unshielded | 27mOhm Max | 26 @ 7.96MHz | 109MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SDR7045-3R3MFIXED IND 3.3UH 2.8A 36 MOHM SMD |
0 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.8 A | 3.7A | Unshielded | 36mOhm Max | 23 @ 7.96MHz | 47MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SDR7045-6R8MFIXED IND 6.8UH 2.25A 54MOHM SMD |
0 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.25 A | 2.7A | Unshielded | 54mOhm Max | 22 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
MGV10043R3M-10FIXED IND 3.3UH 10A 11.8MOHM SMD |
0 |
|
- |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 10 A | 18.6A | Shielded | 11.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.169" (4.30mm) |
|
|
MGV1004R19M-10FIXED IND 190NH 40A 1 MOHM SMD |
0 |
|
- |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 190 nH | ±20% | 40 A | 90A | Shielded | 1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.169" (4.30mm) |
|

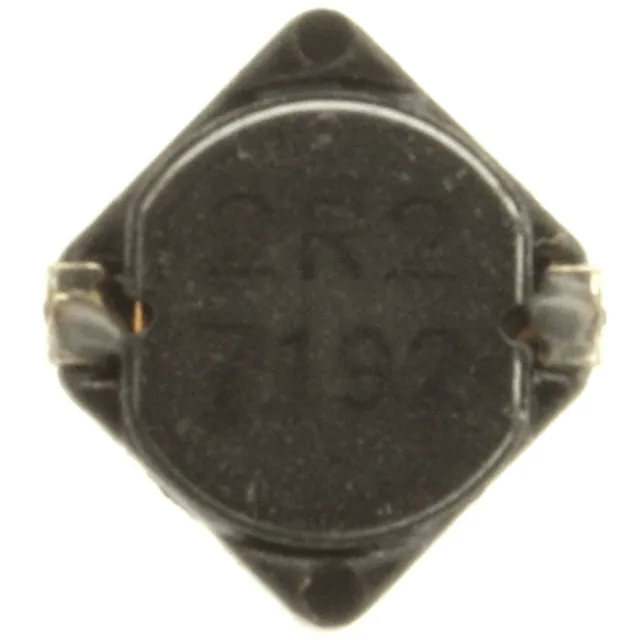

B82470A1222MFIXED IND 2.2UH 1.35A 90MOHM SMD |
0 |
|
Datasheet |
B82470-A1-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.35 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.047" (1.20mm) |
|
SDR1006-182KLFIXED IND 1.8MH 170MA 6.8OHM SMD |
0 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 170 mA | 380mA | Unshielded | 6.8Ohm Max | 31 @ 252kHz | 1.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-2R5MLFIXED IND 2.5UH SMD |
0 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-392KLFIXED IND 3.9MH 110MA 14.8OHM SM |
0 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 110 mA | 280mA | Unshielded | 14.8Ohm Max | 32 @ 252kHz | 1.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-3R9MLFIXED IND 3.9UH 4.6A 27 MOHM SMD |
0 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 4.6 A | 8.4A | Unshielded | 27mOhm Max | 34 @ 7.96MHz | 48MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SDR1006-5R6MLFIXED IND 5.6UH 3.8A 40 MOHM SMD |
0 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 3.8 A | 6.4A | Unshielded | 40mOhm Max | 33 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
0512CDMCDS-R33NCFIXED IND 330NH 5A 13 MOHM SMD |
0 |
|
Datasheet |
0512CDMC/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±30% | 5 A | 10.6A | Shielded | 13mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
|
|
0512CDMCDS-R47NCFIXED IND 470NH 4.5A 16 MOHM SMD |
0 |
|
Datasheet |
0512CDMC/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±30% | 4.5 A | 9.6A | Shielded | 16mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
|
|
HL02300GTTROPC INDUCTORS |
0 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 30 nH | ±2% | 65 mA | - | Unshielded | 2.2Ohm Max | 15 @ 450MHz | 2GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
PF0580.153NLTFIXED IND 15UH 850MA 197MOHM SMD |
0 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±15% | 850 mA | 850mA | Unshielded | 197mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.222NLTFIXED IND 2.2UH 2.2A 49 MOHM SMD |
0 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±15% | 2.2 A | 2.2A | Unshielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.152NLTFIXED IND 1.5UH 2.7A 40 MOHM SMD |
0 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±15% | 2.7 A | 2.7A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.103NLTFIXED IND 10UH 1.1A 132 MOHM SMD |
0 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±15% | 1.1 A | 1.1A | Unshielded | 132mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.102NLTFIXED IND 1UH 3.1A 35 MOHM SMD |
0 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±15% | 3.1 A | 3.6A | Unshielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.563NLTFIXED IND 56UH 460MA 700MOHM SMD |
0 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±15% | 460 mA | 460mA | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
