Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DENO-23-0001FIXED IND 16A 15 MOHM TH |
648 |
|
Datasheet |
DENO | Radial, Vertical (Open) | Bulk | Active | - | - | - | - | 16 A | - | - | 15mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 0.906" Dia x 0.394" W (23.00mm x 10.00mm) | - |
|
S1210R-122KFIXED IND 1.2UH 574MA 490MOHM SM |
4,219 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±10% | 574 mA | - | Shielded | 490mOhm Max | 40 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210R-152KFIXED IND 1.5UH 532MA 570MOHM SM |
3,138 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 532 mA | - | Shielded | 570mOhm Max | 40 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
2100LL-151-V-RCFIXED IND 150UH 3.9A 43 MOHM TH |
1,588 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 150 µH | ±15% | 3.9 A | - | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
2100LL-391-H-RCFIXED IND 390UH 2.4A 112 MOHM TH |
673 |
|
Datasheet |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 390 µH | ±15% | 2.4 A | - | Shielded | 112mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2100LL-181-H-RCFIXED IND 180UH 3.7A 48 MOHM TH |
608 |
|
Datasheet |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 180 µH | ±15% | 3.7 A | - | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
S1210R-471KFIXED IND 470NH 653MA 450MOHM SM |
490 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±10% | 653 mA | - | Shielded | 450mOhm Max | 40 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
2100LL-1R0-V-RCFIXED IND 1UH 21.4A 2 MOHM TH |
351 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 1 µH | ±20% | 21.4 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
2100LL-120-H-RCFIXED IND 12UH 10.9A 6 MOHM TH |
121 |
|
Datasheet |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 12 µH | ±15% | 10.9 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|

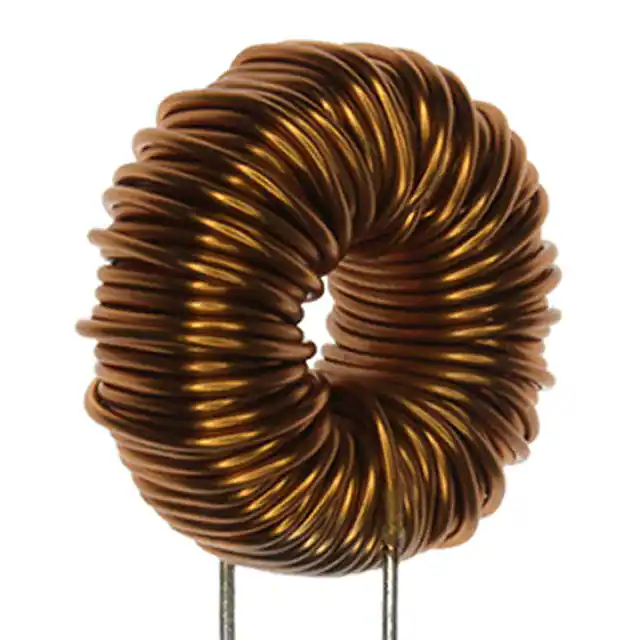

7447071FIXED IND 470UH 3A 110 MOHM TH |
279 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 470 µH | ±20% | 3 A | - | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | - |
|
PQ2614BLA-4R7KFIXED IND 4.7UH 30A 1.6 MOHM SMD |
625 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 30 A | 36.9A | Shielded | 1.6mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-330KFIXED IND 33UH 30A 1.6 MOHM SMD |
521 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 30 A | 2.6A | Shielded | 1.6mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-2R2KFIXED IND 2.2UH 30A 1.6 MOHM SMD |
267 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | 84A | Shielded | 1.6mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-3R3KFIXED IND 3.3UH 30A 1.6 MOHM SMD |
192 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 30 A | 54A | Shielded | 1.6mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
74439346082FIXED IND 8.2UH 5.3A 23MOHM SMD |
1,988 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 8.2 µH | ±20% | 5.3 A | 8.4A | Shielded | 23mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
PQ2614BLA-6R8KFIXED IND 6.8UH 30A 1.6 MOHM SMD |
1,279 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 30 A | 26A | Shielded | 1.6mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
74439346056FIXED IND 5.6UH 6.9A 15MOHM SMD |
772 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 5.6 µH | ±20% | 6.9 A | 13.6A | Shielded | 15mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
PQ2614BHA-150KFIXED IND 15UH 30A 1.9 MOHM SMD |
744 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 30 A | 14A | Shielded | 1.9mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BHA-220KFIXED IND 22UH 30A 1.9 MOHM SMD |
161 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 30 A | 8.6A | Shielded | 1.9mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
2200HT-221-V-RCFIXED IND 220UH 4.3A 91 MOHM TH |
161 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 4.3 A | - | Shielded | 91mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
