Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

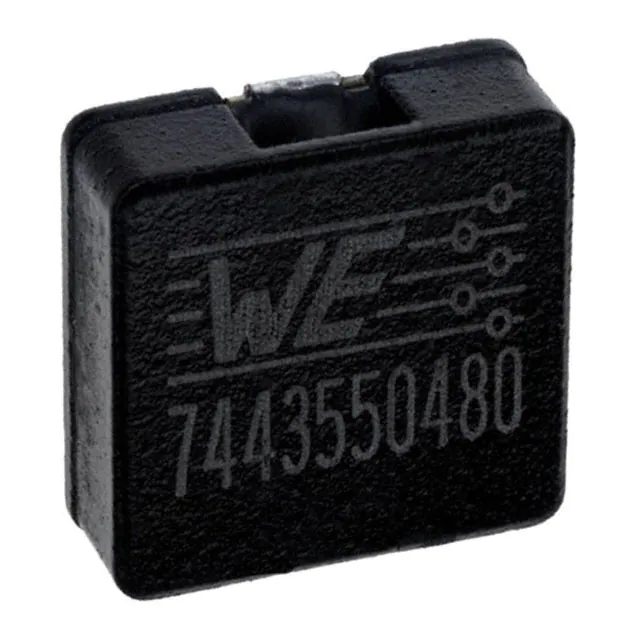

7443550480FIXED IND 4.8UH 11A 10.5MOHM SMD |
1,826 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.8 µH | ±20% | 11 A | 13A | Shielded | 10.5mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|

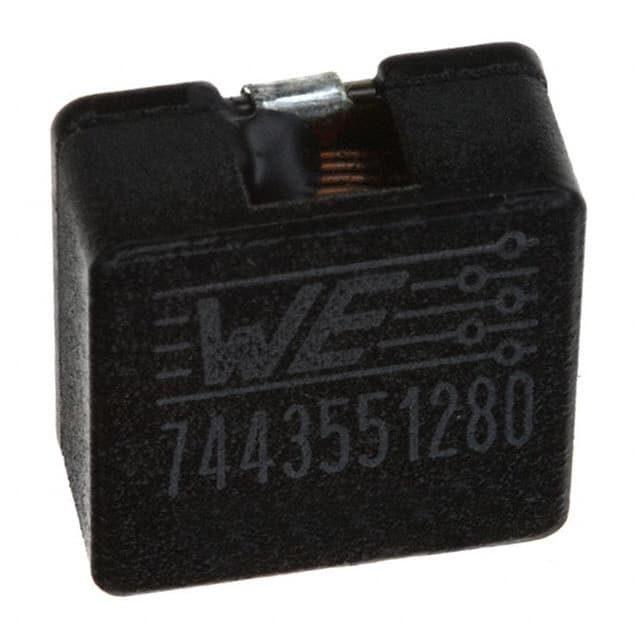

7443551280FIXED IND 2.8UH 20A 3.3 MOHM SMD |
1,750 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 20 A | 17.5A | Shielded | 3.3mOhm | - | 35MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

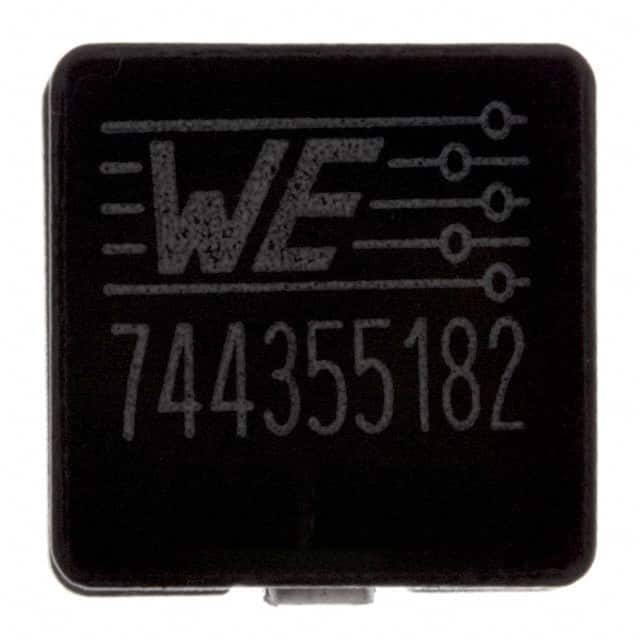

744355182FIXED IND 820NH 27A 0.9 MOHM SMD |
1,544 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±20% | 27 A | 35A | Shielded | 0.9mOhm | - | 72MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

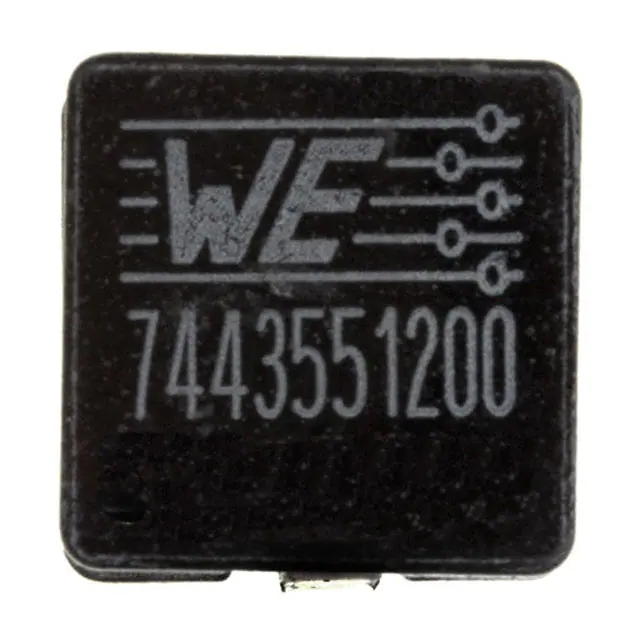

7443551200FIXED IND 2UH 23A 2.6 MOHM SMD |
1,302 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 23 A | 22A | Shielded | 2.6mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|
7443551130FIXED IND 1.3UH 25A 1.8 MOHM SMD |
1,183 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.3 µH | ±20% | 25 A | 25A | Shielded | 1.8mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

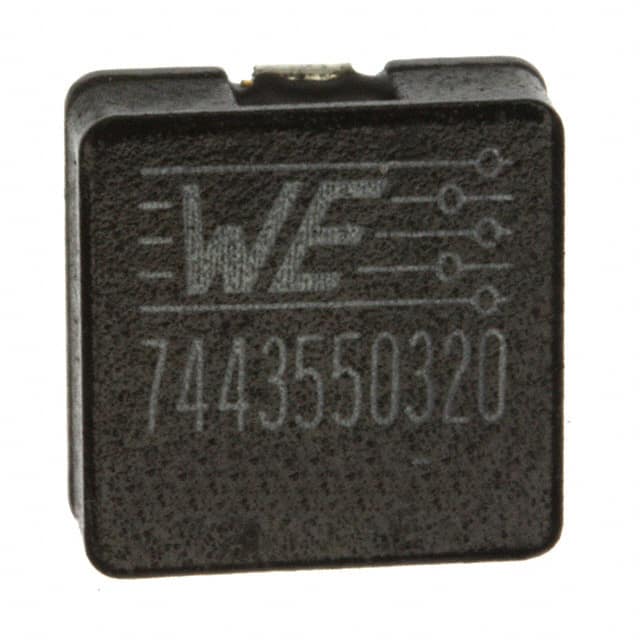

7443550320FIXED IND 3.2UH 16A 5.3 MOHM SMD |
384 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.2 µH | ±20% | 16 A | 15A | Shielded | 5.3mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|

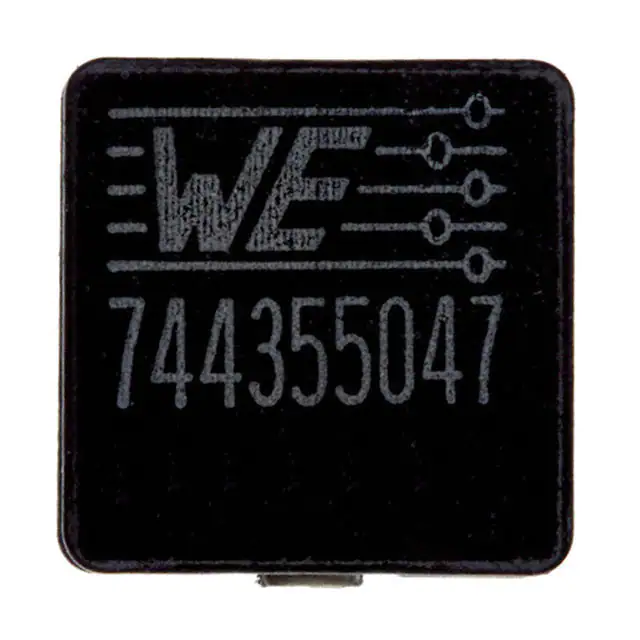

744355047FIXED IND 470NH 26A 0.9 MOHM SMD |
341 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 26 A | 50A | Shielded | 0.9mOhm | - | 95MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|
7843332000WE-CHSA SMT HIGH CURRENT INDUCTO |
128 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 20 µH | ±20% | 4.3 A | 7A | Shielded | 60.9mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
HCV1707R1-R48-RFIXED IND 480NH 32A 1.7 MOHM SMD |
6,480 |
|
Datasheet |
HCV1707 | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 480 nH | ±10% | 32 A | 47A | Unshielded | 1.7mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.681" L x 0.551" W (17.30mm x 14.00mm) | 0.272" (6.90mm) |
|
PA2729.203NLFIXED IND 20.7UH 8.5A 12MOHM SMD |
1,015 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 20.7 µH | ±15% | 8.5 A | 10.7A | Shielded | 12mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

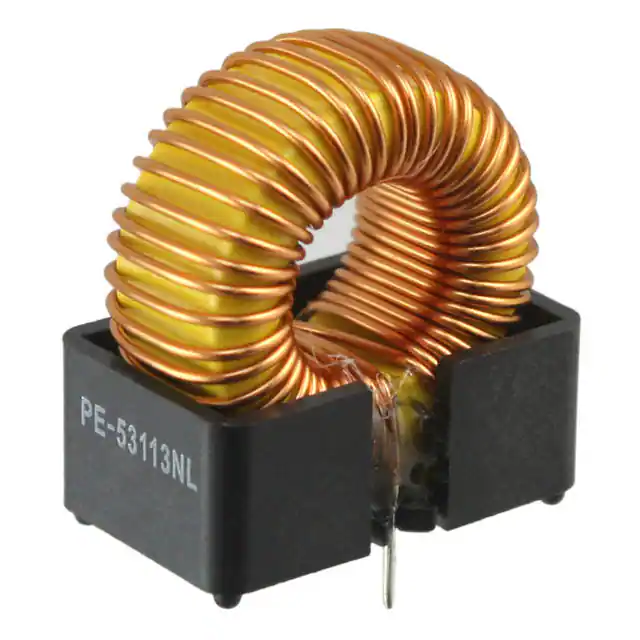

PE-53113NLFIXED IND 150UH 2A 100 MOHM TH |
559 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|

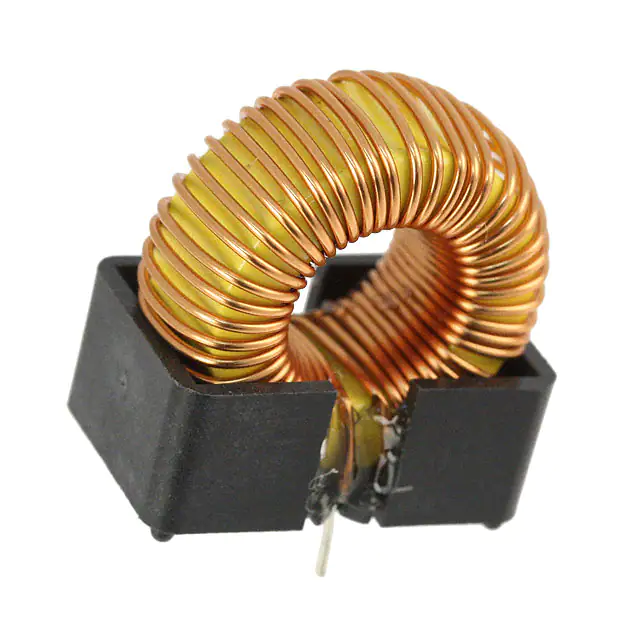

PE-53115NLFIXED IND 150UH 3A 100 MOHM TH |
327 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 150 µH | ±20% | 3 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
IHLP6767GZER4R7M5AFIXED IND 4.7UH 24A 5.23MOHM SMD |
1,397 |
|
Datasheet |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 24 A | 26A | Shielded | 5.23mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
EXL1V1010-100-RINDUCTOR MOLDED 10UH 14.6A |
339 |
|
Datasheet |
EXL1V1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 15.5 A | 14.6A | Shielded | 13.75mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
PE-53932SNLFIXED IND 37UH 2.24A 100MOHM SMD |
258 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 37 µH | ±20% | 2.24 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
1025-68KFIXED IND 100UH 84MA 8 OHM TH |
8,792 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75085 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
IHDM1008BCEV1R3M20HIGH CURRENT THROUGH-HOLE INDUCT |
341 |
|
Datasheet |
IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.3 µH | ±20% | 84 A | 259A | Unshielded | 0.48mOhm Max | - | 95MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|

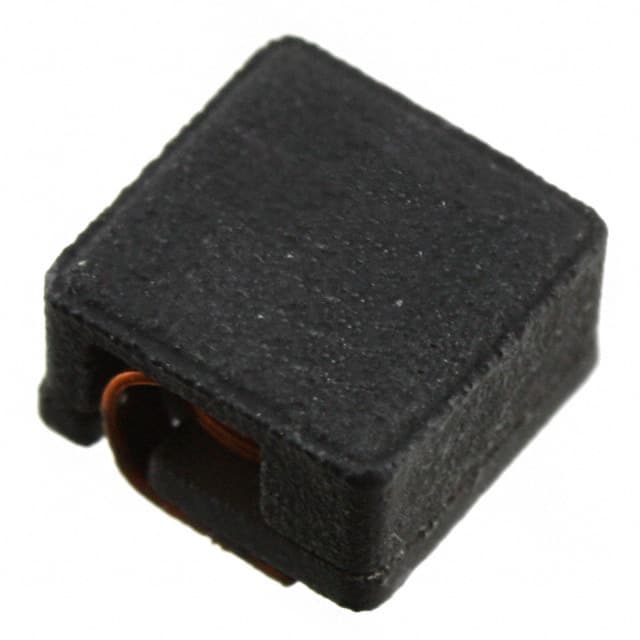

HCP0704-1R0-RFIXED IND 1UH 12A 6.2 MOHM SMD |
1,000 |
|
Datasheet |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±25% | 12 A | 17A | Shielded | 6.2mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.165" (4.20mm) |
|
|
IHLP6767DZER4R7M11FIXED IND 4.7UH 18A 9.32MOHM SMD |
271 |
|
Datasheet |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 18 A | 12A | Shielded | 9.32mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
7447798221FIXED IND 22UH 4.7A 37.3MOHM SMD |
8,994 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 4.7 A | 3.5A | Shielded | 37.3mOhm Max | - | 17MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
