Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

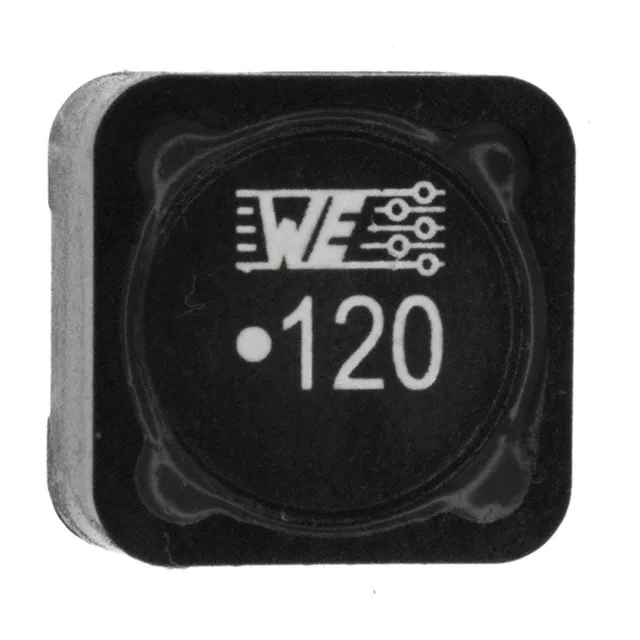

744770112FIXED IND 12UH 5.9A 24 MOHM SMD |
760 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 5.9 A | 6.3A | Shielded | 24mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

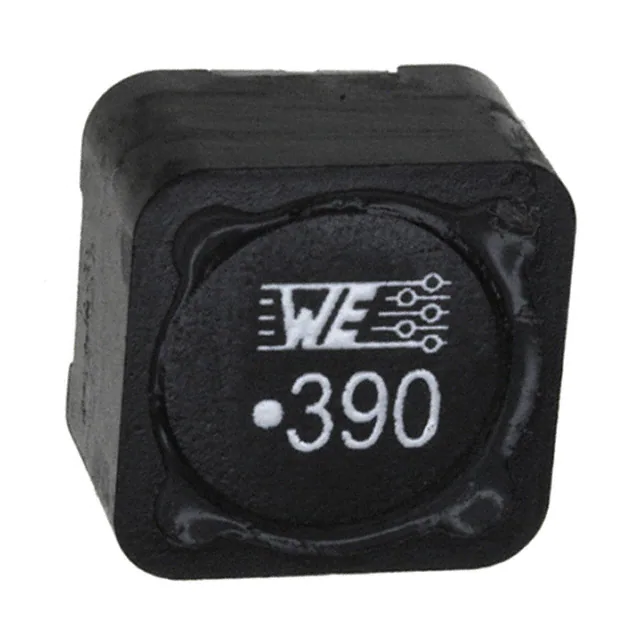

744770139FIXED IND 39UH 3A 73 MOHM SMD |
699 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 3 A | 3.5A | Shielded | 73mOhm Max | - | 8.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
HPL505028FR10MRD3PFIXED IND 100NH 34A 880MOHM SMD |
686 |
|
Datasheet |
HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±20% | 34 A | 27.5A | Unshielded | 0.88mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
7443330100FIXED IND 1UH 20A 2.65 MOHM SMD |
640 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 20 A | 27.5A | Shielded | 2.65mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

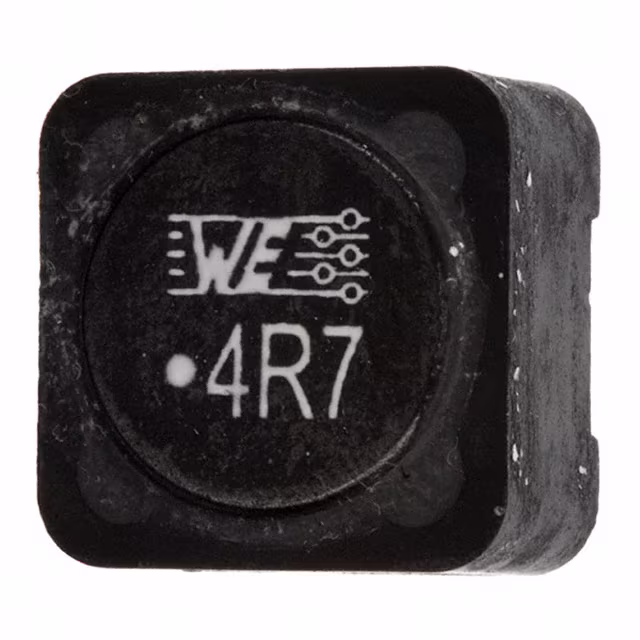

74477004FIXED IND 4.7UH 8.5A 16 MOHM SMD |
550 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | -20%, +40% | 8.5 A | 9.3A | Shielded | 16mOhm Max | - | 31.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330150FIXED IND 1.5UH 18A 4 MOHM SMD |
439 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 18 A | 27A | Shielded | 4mOhm Max | - | 78MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
PIS150H-471MFIXED IND 470UH 1.81A 0.25OHM SM |
390 |
|
Datasheet |
PIS150H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 1.81 A | 2.3A | Shielded | 250mOhm | - | - | - | -40°C ~ 150°C | - | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.571" (14.50mm) |
|

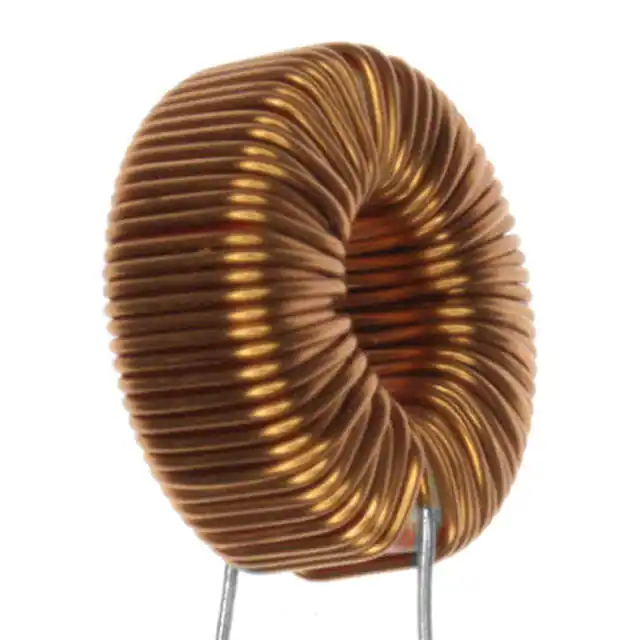

7447060FIXED IND 300UH 2A 150 MOHM TH |
270 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 300 µH | ±20% | 2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.827" Dia x 0.433" L (21.00mm x 11.00mm) | - |
|
MWLA1707S-101MTFIXED IND 100UH 118MOHM 6500MA |
354 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 100 µH | ±20% | 5.3 A | 6.5A | Shielded | 118mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.276" (7.00mm) |
|
4602-RCFIXED IND 1UH 2A 50 MOHM TH |
2,436 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 1 µH | ±20% | 2 A | - | Unshielded | 50mOhm Max | 60 @ 7.96MHz | 190MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
IHLP5050FDERR47M01FIXED IND 470NH 41A 1.2 MOHM SMD |
1,757 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 41 A | 63A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
|
IHLP5050FDER5R6M01FIXED IND 5.6UH 13.5A 10MOHM SMD |
761 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 13.5 A | 32A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
|
IHLP5050FDER6R8M01FIXED IND 6.8UH 11.5A 14MOHM SMD |
559 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 11.5 A | 16.5A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
SPM10040T-2R2M-HZFIXED IND 2.2UH 16.7A 7.46 MOHM |
690 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 16.7 A | 9.7A | Shielded | 7.46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|

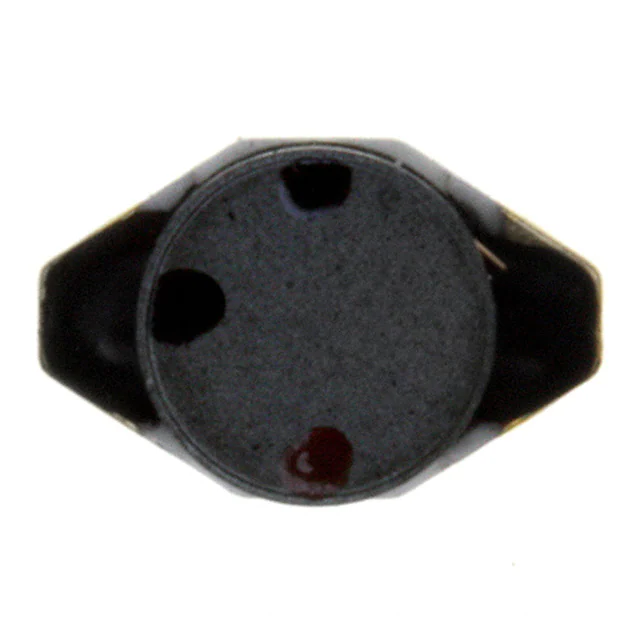

7445510FIXED IND 10UH 1.2A 160 MOHM SMD |
10,264 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.1A | Unshielded | 160mOhm Max | - | 26MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

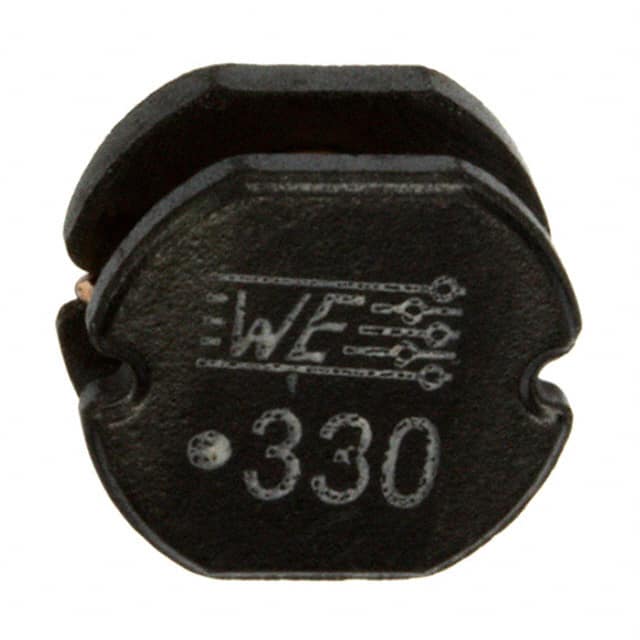

744776133FIXED IND 33UH 1.78A 120MOHM SMD |
1,359 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.78 A | 1.89A | Unshielded | 120mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

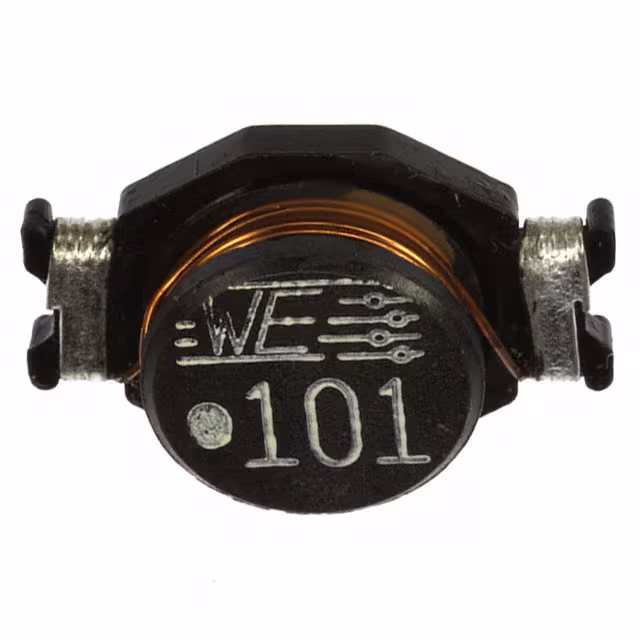

7445720FIXED IND 100UH 2A 202 MOHM SMD |
980 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2 A | 3A | Unshielded | 202mOhm Max | - | 6.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|

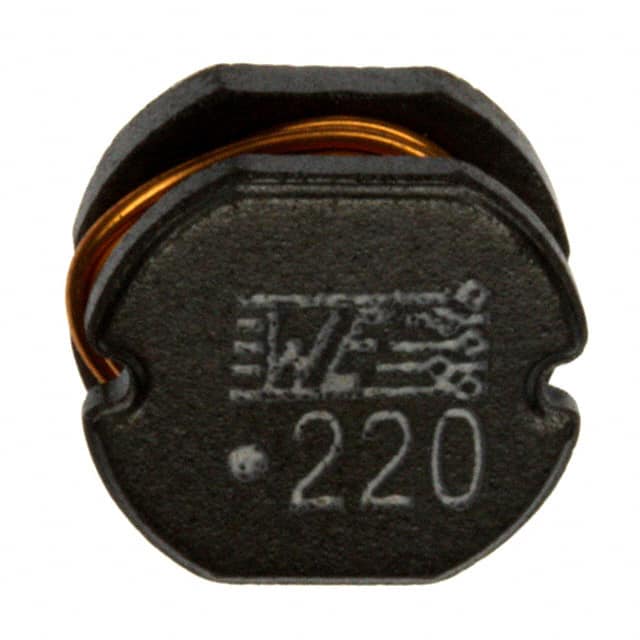

744776122FIXED IND 22UH 2.04A 100MOHM SMD |
359 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.04 A | 2.07A | Unshielded | 100mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
60B154CFIXED IND 150UH 6A 38 MOHM SMD |
285 |
|
Datasheet |
6000B | Nonstandard | Tray | Active | Wirewound | - | 150 µH | ±15% | 6 A | - | Unshielded | 38mOhm Max | - | 3.9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
PM2201.102NLTFIXED IND 1UH 9.6A 14.6MOHM SMD |
2,671 |
|
Datasheet |
PM2201.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 9.6 A | 9.6A | Unshielded | 14.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
