Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744771212FIXED IND 120UH 1.3A 170MOHM SMD |
722 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.3 A | 1.56A | Shielded | 170mOhm Max | - | 5.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447714022FIXED IND 2.2UH 8.6A 8 MOHM SMD |
594 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 8.6 A | 9.5A | Shielded | 8mOhm Max | - | 53MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|

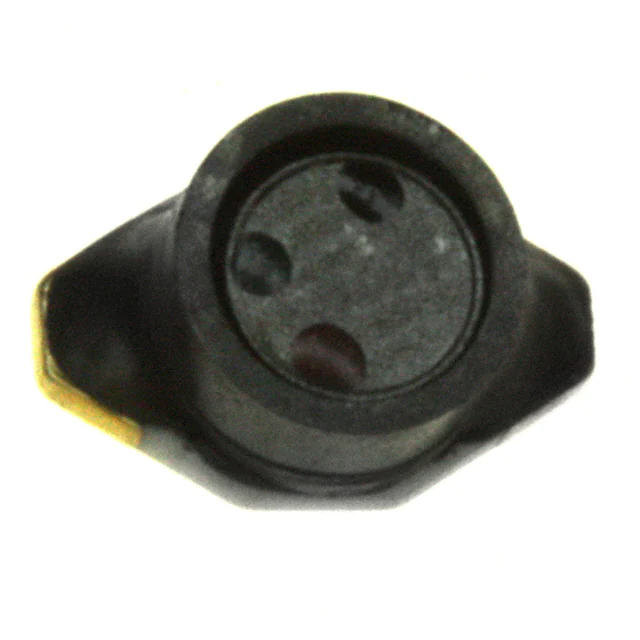

74451115FIXED IND 15UH 800MA 0.09OHM SMD |
531 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±20% | 800 mA | 270mA | Shielded | 90mOhm Max | - | 25.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7447714068FIXED IND 6.8UH 5.2A 22 MOHM SMD |
458 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.2 A | 5.8A | Shielded | 22mOhm Max | - | 23.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
744771115FIXED IND 15UH 3.75A 30 MOHM SMD |
452 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.2 A | 4.5A | Shielded | 28mOhm Max | - | 16.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447715101FIXED IND 100UH 1.3A 270MOHM SMD |
375 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | 1.4A | Shielded | 270mOhm Max | - | 6.9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
7447714151FIXED IND 150UH 1.2A 300MOHM SMD |
329 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.2 A | 1.4A | Shielded | 300mOhm Max | - | 4.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
744771006FIXED IND 6.8UH 6.25A 22MOHM SMD |
311 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.25 A | 6.4A | Shielded | 22mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447714270FIXED IND 27UH 2.6A 74 MOHM SMD |
176 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.6 A | 3.4A | Shielded | 74mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
IHLP5050EZER2R2M01FIXED IND 2.2UH 20A 5.5 MOHM SMD |
150 |
|
Datasheet |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 20 A | 32A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
PA5175.103NLTFIXED IND 10UH 5A 43 MOHM SMD |
4,953 |
|
Datasheet |
PA5175.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 5.4A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
SCIHP1367-100MFIXED IND 10UH 10A 18.5 MOHM SMD |
4,135 |
|
Datasheet |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 10 A | 15.5A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
VLBU6565100T-R07LINDUCTORS FOR POWER CIRCUITS, WO |
2,659 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 70 nH | ±15% | 70 A | 110A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
IHLP2525EZER4R7M01FIXED IND 4.7UH 6.5A 30.3MOHM SM |
1,737 |
|
Datasheet |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 6.5 A | 7A | Shielded | 30.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
|
IHLP2525EZER8R2M01FIXED IND 8.2UH 5A 50.7 MOHM SMD |
1,457 |
|
Datasheet |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 5 A | 5A | Shielded | 50.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
VLBU6565100T-R10LFIXED IND 100NH 70A 0.18MOHM SMD |
1,059 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 70 A | 80A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
HCM1A1307V2-560-RFIXED IND 56UH 4A 65 MOHM SMD |
631 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 56 µH | ±20% | 4 A | 4.3A | Shielded | 65mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
83472CFIXED IND 4.7UH 1.1A 130MOHM SMD |
4,690 |
|
Datasheet |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4.7 µH | ±20% | 1.1 A | 1.66A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
SD6030-101-RFIXED IND 94.4UH 760MA 520 MOHM |
2,306 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 94.4 µH | ±30% | 760 mA | 420mA | Shielded | 520mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
PA5005.332NLTFIXED IND 3.3UH 11A 12.5MOHM SMD |
2,214 |
|
Datasheet |
PA5005.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | ±20% | 11 A | 12.5A | Shielded | 12.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
