Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7045T-100M1R8-HFIXED IND 10UH 1.8A 56.4MOHM SMD |
995 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.8 A | 1.8A | Shielded | 56.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRR1208-150MLFIXED IND 15UH 4A 36 MOHM SMD |
26,983 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4 A | 5.6A | Shielded | 36mOhm Max | 21 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-120MLFIXED IND 12UH 4.8A 25 MOHM SMD |
25,250 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4.8 A | 6.5A | Shielded | 25mOhm Max | 19 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-330YLFIXED IND 33UH 2.8A 62 MOHM SMD |
19,679 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 2.8 A | 3.8A | Shielded | 62mOhm Max | 23 @ 2.52MHz | 6.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-100MLFIXED IND 10UH 5A 21 MOHM SMD |
16,314 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5 A | 6.7A | Shielded | 21mOhm Max | 20 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
SRP3020TA-2R2MFIXED IND 2.2UH 3.5A 75 MOHM SMD |
14,242 |
|
Datasheet |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 3.5 A | 3.7A | Shielded | 75mOhm Max | 10 @ 100kHz | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRR1208-4R5MLFIXED IND 4.5UH 6.5A 14 MOHM SMD |
12,542 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.5 µH | ±20% | 6.5 A | 10A | Shielded | 14mOhm Max | 24 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRP3020TA-100MFIXED IND 10UH 1.4A 422 MOHM SMD |
9,218 |
|
Datasheet |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 1.4 A | 1.6A | Shielded | 422mOhm Max | 10 @ 100kHz | 20MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRR1208-332KLFIXED IND 3.3MH 320MA 6.4OHM SMD |
8,630 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 320 mA | 350mA | Shielded | 6.4Ohm Max | 20 @ 252kHz | 500kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|

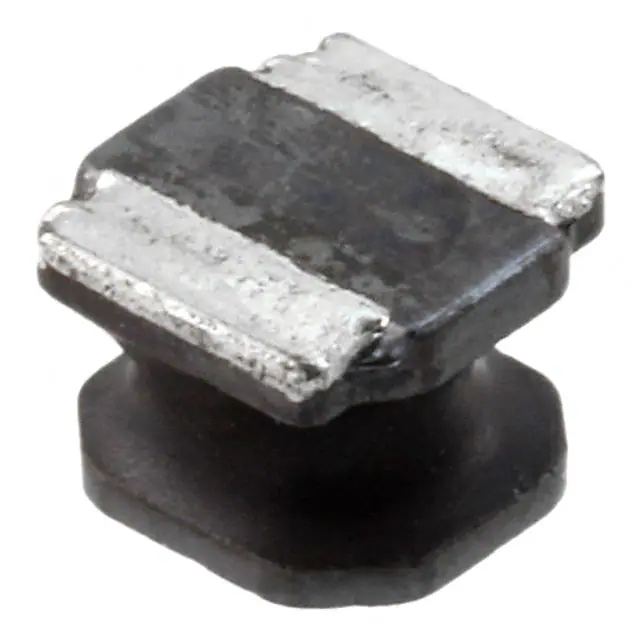

74404054221FIXED IND 220UH 500MA 1.4OHM SMD |
7,393 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 500 mA | 550mA | Shielded | 1.4Ohm | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
SRR1208-6R5MLFIXED IND 6.5UH 6A 18 MOHM SMD |
7,003 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.5 µH | ±20% | 6 A | 8.4A | Shielded | 18mOhm Max | 25 @ 7.96MHz | 20MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
B82111E0000C021FIXED IND 12UH 4A 40 MOHM TH |
6,832 |
|
Datasheet |
B82111E | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4 A | - | Unshielded | 40mOhm | - | 140MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.276" Dia x 1.024" L (7.00mm x 26.00mm) | - |
|
|
SRP3020TA-4R7MFIXED IND 4.7UH 2.6A 200MOHM SMD |
6,550 |
|
Datasheet |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 2.6 A | 3A | Shielded | 200mOhm Max | 10 @ 100kHz | 34MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRR1208-680YLFIXED IND 68UH 1.8A 135 MOHM SMD |
6,548 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±15% | 1.8 A | 2.6A | Shielded | 135mOhm Max | 20 @ 2.52MHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
74404054471FIXED IND 470UH 350MA 2.95OHM SM |
6,089 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 350 mA | 400mA | Shielded | 2.95Ohm | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
P0770.153NLTFIXED IND 15UH 900MA 230MOHM SMD |
4,658 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 900 mA | 900mA | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SRR1208-103KLFIXED IND 10MH 180MA 19.2OHM SMD |
4,522 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 180 mA | 200mA | Shielded | 19.2Ohm Max | 24 @ 79.6kHz | 300kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
PA4390.151HLTFIXED IND 150NH 68A 0.185MOHM SM |
4,128 |
|
Datasheet |
PA4390.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 68 A | 73A | Shielded | 0.185mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
|
SRR1208-102KLFIXED IND 1MH 500MA 1.65 OHM SMD |
3,629 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 500 mA | 670mA | Shielded | 1.65Ohm Max | 11 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-101YLFIXED IND 100UH 1.5A 170MOHM SMD |
3,090 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±15% | 1.5 A | 2.1A | Shielded | 170mOhm Max | 15 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
