Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404024047FIXED IND 4.7UH 1.12A 175MOHM SM |
4,829 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.12 A | 1.2A | Shielded | 175mOhm | - | 52MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
74404042330FIXED IND 33UH 650MA 460MOHM SMD |
4,625 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 650 mA | 900mA | Shielded | 460mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
74404032010FIXED IND 1UH 2.2A 33 MOHM SMD |
4,239 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.2 A | 3A | Shielded | 33mOhm | - | 138MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
CLF7045NIT-6R8N-DFIXED IND 6.8UH 3.1A 29MOHM SMD |
3,847 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.1 A | 3.1A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
74404032100FIXED IND 10UH 840MA 230MOHM SMD |
3,794 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 840 mA | 870mA | Shielded | 230mOhm | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74404042068FIXED IND 6.8UH 1.45A 98MOHM SMD |
3,662 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.45 A | 2A | Shielded | 98mOhm | - | 39MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
AIUR-06-331KFIXED IND 330UH 1.3A 394 MOHM TH |
3,444 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.3 A | 1.62A | Unshielded | 394mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
RL622-331K-RCFIXED IND 330UH 540MA 850MOHM TH |
3,348 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 540 mA | - | Unshielded | 850mOhm Max | 20 @ 796kHz | 2.3MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
74404042033FIXED IND 3.3UH 2A 55 MOHM SMD |
3,344 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.9A | Shielded | 55mOhm | - | 56MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
74404024100FIXED IND 10UH 470MA 435MOHM SMD |
2,738 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 0.65 A | 800mA | Shielded | 435mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
RL622-3R3K-RCFIXED IND 3.3UH 5.5A 25 MOHM TH |
2,676 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 5.5 A | - | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 79MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
74404042220FIXED IND 22UH 700MA 290MOHM SMD |
2,601 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 1.1A | Shielded | 290mOhm | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

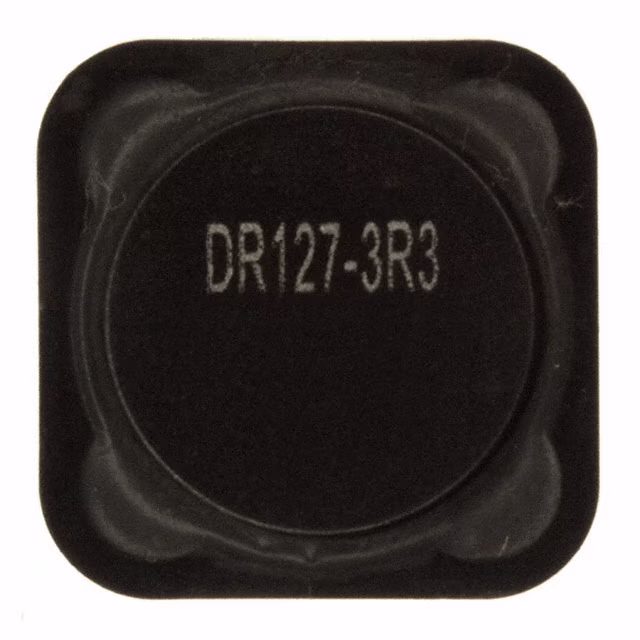

DR127-3R3-RFIXED IND 3.3UH 10.5A 5.67 MOHM |
2,270 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 10.5 A | 21.5A | Shielded | 5.67mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
74404024068FIXED IND 6.8UH 850MA 300MOHM SM |
2,252 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 850 mA | 1A | Shielded | 300mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74404032470FIXED IND 47UH 400MA 1.05OHM SMD |
2,176 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 400 mA | 410mA | Shielded | 1.05Ohm | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
B82442T1472K000FIXED IND 4.7UH 1.95A 73MOHM SMD |
2,153 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 1.95 A | 4.3A | Unshielded | 73mOhm Max | 15 @ 7.96MHz | 30MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442T1473K000FIXED IND 47UH 700MA 519MOHM SMD |
2,150 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 700 mA | 1.35A | Unshielded | 519mOhm Max | 15 @ 2.52MHz | 8MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
74404042150FIXED IND 15UH 850MA 210MOHM SMD |
2,139 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 1.4A | Shielded | 210mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
RL622-101K-RCFIXED IND 100UH 910MA 280MOHM TH |
2,031 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 910 mA | - | Unshielded | 280mOhm Max | 20 @ 796kHz | 3.7MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
AIUR-06-330KFIXED IND 33UH 3.6A 51 MOHM TH |
1,761 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 3.6 A | 5.2A | Unshielded | 51mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
