Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

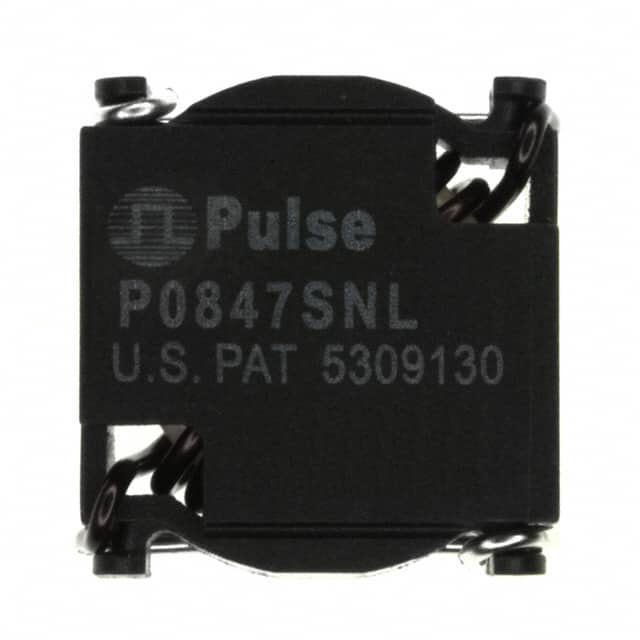

P0847SNLFIXED IND 10UH 5A 25 MOHM SMD |
0 |
|
Datasheet |
LCI-50 | Nonstandard | Tube | Active | Toroidal | - | 10 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
LQW43FT100M0HLFIXED IND 10UH 1000MA POWRTRN |
0 |
|
Datasheet |
LQW43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 710 mA | 1A | Shielded | 130mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.146" (3.70mm) |
|
|
LQW43FT220M0HLFIXED IND 22UH 700MA POWRTRN |
0 |
|
Datasheet |
LQW43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 700mA | Shielded | 180mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.146" (3.70mm) |
|
HCTI-100-7.0FIXED IND 100UH 7A 37 MOHM TH |
0 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
1210R-473JFIXED IND 47UH 163MA 7 OHM SMD |
0 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±5% | 163 mA | - | Unshielded | 7Ohm Max | 30 @ 2.5MHz | 13MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
FP1507R1-R185-RFIXED IND 185NH 45A 0.52MOHM SMD |
1 |
|
Datasheet |
FP1507R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 185 nH | ±10% | 45 A | 40A | Shielded | 0.52mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2-SMD | 0.575" L x 0.335" W (14.60mm x 8.50mm) | 0.264" (6.70mm) |
|
P1330R-102KFIXED IND 1UH 2.78A 35 MOHM SMD |
0 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±10% | 2.78 A | 1.526A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
PM2110-151K-RCFIXED IND 150UH 4.3A 49 MOHM SMD |
0 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 150 µH | ±10% | 4.3 A | - | Unshielded | 49mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.590" (14.99mm) |
|

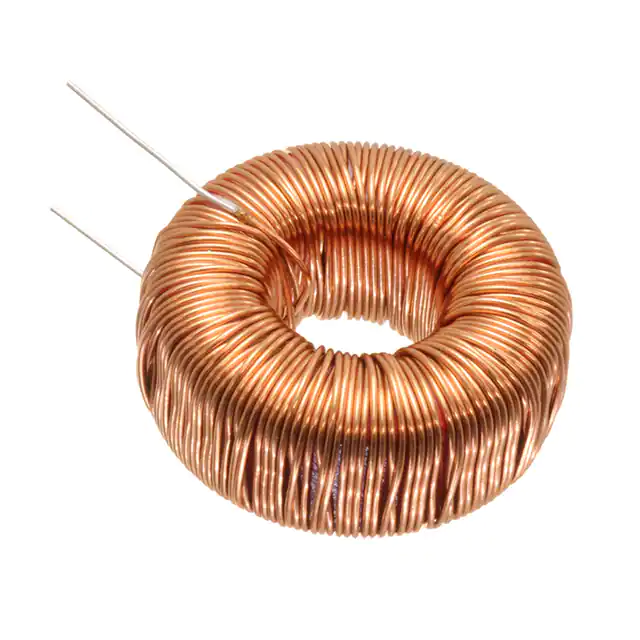

7441110FIXED IND 1.619MH 1.8A 480 MOHM |
0 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1.619 mH | ±20% | 1.8 A | 700mA | Shielded | 480mOhm Max | - | 500kHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.571" W (30.00mm x 14.50mm) | - |
|
7687709102FIXED IND 1MH 720MA 1.4 OHM SMD |
0 |
|
Datasheet |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 720 mA | 900mA | Shielded | 1.4Ohm Max | - | 1.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
PM2120-820K-RCFIXED IND 82UH 6.4A 32 MOHM SMD |
2 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 82 µH | ±10% | 6.4 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.870" (22.10mm) |
|
HCMA1707-330-RFIXED IND 33UH 9A 37 MOHM SMD |
32 |
|
Datasheet |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 9 A | 10A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
2100LL-101-H-RCFIXED IND 100UH 4.3A 36 MOHM TH |
0 |
|
Datasheet |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 100 µH | ±15% | 4.3 A | - | Shielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2209-H-RCFIXED IND 47UH 6.7A 24 MOHM TH |
0 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 6.7 A | - | Shielded | 24mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
2100LL-470-V-RCFIXED IND 47UH 5.2A 24 MOHM TH |
0 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 5.2 A | - | Shielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|

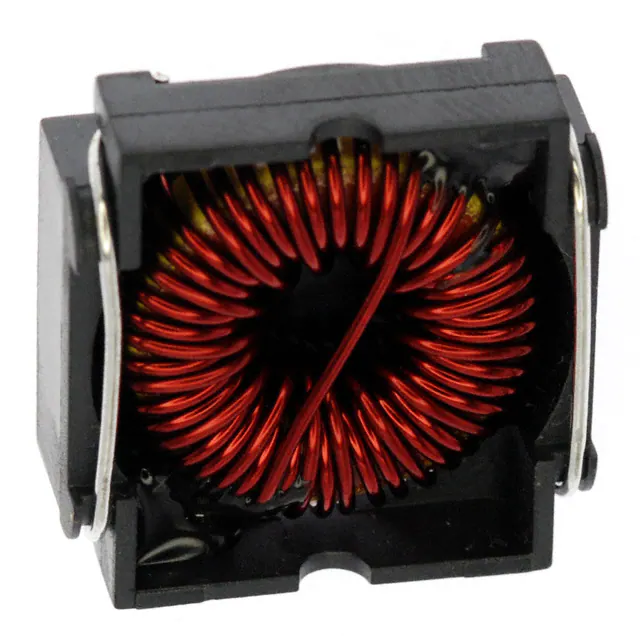

PE-54040SNLFIXED IND 38UH 3A 50 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 38 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PE-53932NLFIXED IND 37UH 2.24A 100 MOHM TH |
0 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 37 µH | ±20% | 2.24 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
IHD1EB101LFIXED IND 100UH 1.1A 208 MOHM TH |
0 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±15% | 1.1 A | 730mA | Unshielded | 208mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | - |
|
784325055WE-HCIA SMT FLAT WIRE HIGH CURRE |
0 |
|
Datasheet |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.2 µH | ±20% | 10 A | 14.3A | Shielded | 9.45mOhm Max | - | 31MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
SRP1510CA-220MIND,16.5X15.5X9.7MM,22UH20%,16A, |
22 |
|
Datasheet |
SRP1510CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 16 A | 20A | Shielded | 15.8mOhm Max | 30 @ 100kHz | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
