Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6030CA-1R0MFIXED IND 1UH 18A 6.05 MOHM SMD |
6 |
|
Datasheet |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 18 A | 23A | Shielded | 6.05mOhm Max | - | 52MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
SRP6030CA-1R2MFIXED IND 1.2UH 16A 7.4 MOHM SMD |
25 |
|
Datasheet |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 16 A | 22A | Shielded | 7.4mOhm Max | - | 47MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
SRP6050CA-2R2MFIXED IND 2.2UH 13A 8.5 MOHM SMD |
0 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 13 A | 16A | Shielded | 8.5mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|

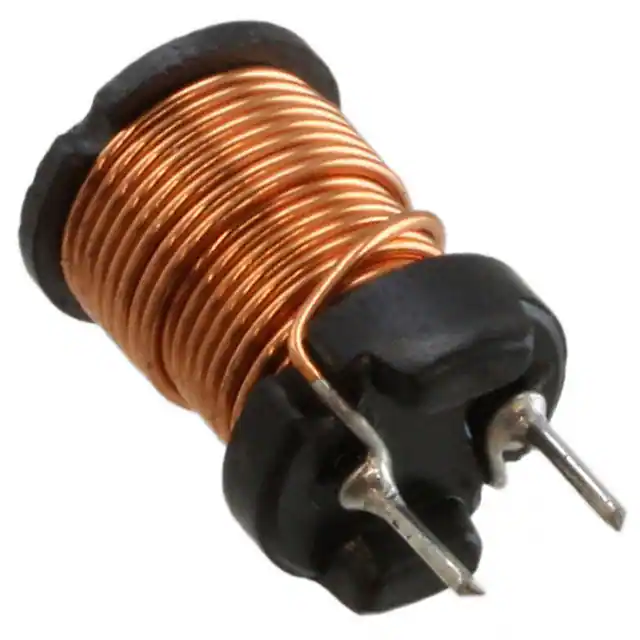

7447480101FIXED IND 100UH 2.4A 125 MOHM TH |
20 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.4 A | 2.5A | Unshielded | 125mOhm Max | - | 4.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
VLBU1024660R07MFFIXED IND 70NH 70A 0.23MOHM SMD |
0 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 70 nH | ±20% | 70 A | 93A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.236" (6.00mm) |
|
SRP6060FA-5R6MFIXED IND 5.6UH 10A 15.8MOHM SMD |
13 |
|
Datasheet |
SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±20% | 10 A | 10A | Shielded | 15.8mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|
LQH66SN4R7M03LFIXED IND 4.7UH 2.2A 35 MOHM SMD |
13 |
|
Datasheet |
LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.2 A | - | Shielded | 35mOhm Max | - | 30MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2525 (6363 Metric) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
CLF12555T-100M-DFIXED IND 10UH 3.9A 25.2MOHM SMD |
0 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 6.7A | Shielded | 25.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
|
LQH66SN220M03LFIXED IND 22UH 1.1A 121.8MOHM SM |
0 |
|
Datasheet |
LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.1 A | - | Shielded | 121.8mOhm Max | - | 15MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2525 (6363 Metric) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
74437358010FIXED IND 1UH 14A 0.00463OHM SMD |
0 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 14 A | 43.1A | Shielded | 4.63mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.157" (4.00mm) |
|
78438356010HTWE-MAIA SMT POWER INDUCTOR |
0 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1 µH | ±20% | 7.2 A | 6.5A | Shielded | 15.5mOhm Max | - | 46MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
VCHA105D-6R8MS6IND SMD 6.8UH AUTO GRADE CHOKE |
0 |
|
Datasheet |
VCHA105D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 6.8 µH | ±20% | 10.8 A | 11.4A | Unshielded | 14mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.213" (5.40mm) |
|
SLF12575T-100M5R4-HFIXED IND 10UH 5.4A 18.72MOHM SM |
3 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.4 A | 5.5A | Shielded | 18.72mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
VLBU1007090T-R15LFIXED IND 150NH 70A 0.18MOHM SMD |
6 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 70 A | 90A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.354" (9.00mm) |
|
FP1007R6-R39-RFIXED IND 390NH 61A 0.29MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±10% | 61 A | 28A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
60B474CFIXED IND 470UH 3.5A 100MOHM SMD |
0 |
|
Datasheet |
6000B | Nonstandard | Tray | Active | Wirewound | - | 470 µH | ±15% | 3.5 A | - | Unshielded | 100mOhm Max | - | 2.15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
PE-53819SNLFIXED IND 173UH 540MA 600MOHM SM |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
1430430CFIXED IND 300UH 3A 140 MOHM TH |
0 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 300 µH | ±10% | 3 A | - | Unshielded | 140mOhm Max | 26 @ 50kHz | 2.6MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.020" Dia (25.91mm) | 0.610" (15.50mm) |
|
|
1468505CFIXED IND 6.8MH 500MA 2.88OHM TH |
0 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 6.8 mH | ±10% | 500 mA | - | Unshielded | 2.88Ohm Max | 50 @ 50kHz | 500kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.961" Dia (24.40mm) | 0.610" (15.50mm) |
|
|
1410517CFIXED IND 1MH 1.7A 336 MOHM TH |
0 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1 mH | ±10% | 1.7 A | - | Unshielded | 336mOhm Max | 35 @ 50kHz | 1.2MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.012" Dia (25.70mm) | 0.728" (18.50mm) |
