Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
195P5FIXED IND 30MH 5A 230 MOHM CHASS |
3 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 30 mH | ±15% | 5 A | - | Unshielded | 230mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 4.200" W (95.25mm x 106.68mm) | 3.130" (79.50mm) |
|
197J5FIXED IND 14MH 5A 0.293OHM SMD |
3 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 14 mH | ±15% | 5 A | - | Unshielded | 293mOhm | - | 74.35kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|

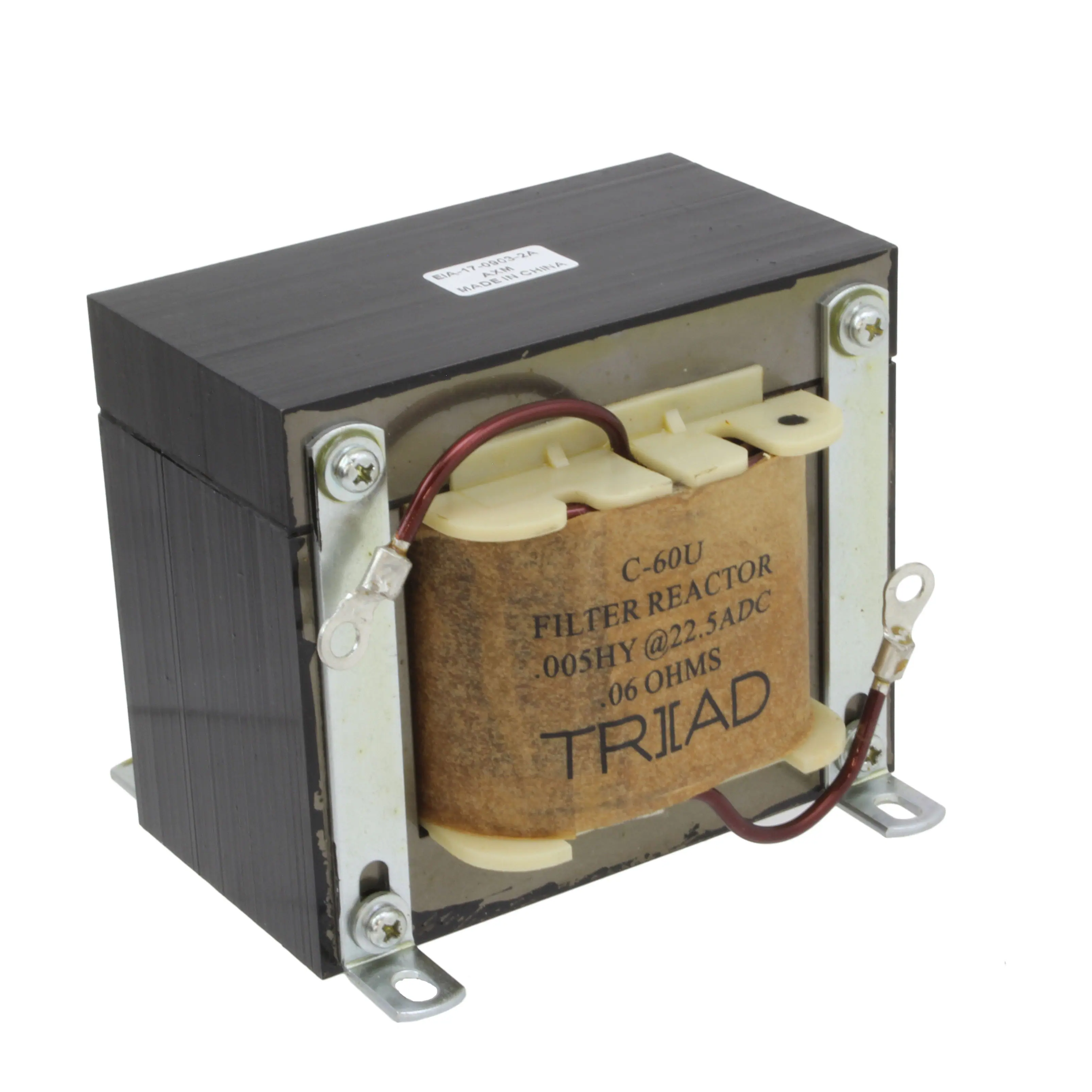

C-60UFIXED IND 5MH 22.5A 60 MOHM CHAS |
3 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 5 mH | -20%, +50% | 22.5 A | - | Unshielded | 60mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.500" L x 4.187" W (114.30mm x 106.35mm) | 3.750" (95.25mm) |
|
|
195J50FIXED IND 10MH 50A 23 MOHM CHASS |
2 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 50 A | - | Unshielded | 23mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 9.750" W (228.60mm x 247.65mm) | 7.500" (190.50mm) |
|
|
195E100FIXED IND 2.5MH 100A 6 MOHM CHAS |
2 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 100 A | - | Unshielded | 6mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 9.750" W (228.60mm x 247.65mm) | 7.500" (190.50mm) |
|
|
195G75FIXED IND 5MH 75A 10 MOHM CHASS |
3 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 75 A | - | Unshielded | 10mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 9.500" W (228.60mm x 241.30mm) | 7.760" (197.10mm) |
|
CLF6045NIT-331M-DFIXED IND 330UH 360MA 1.1OHM SMD |
1,914 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 360 mA | 360mA | Shielded | 1.1Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
CLF6045NIT-471M-DFIXED IND 470UH 280MA 1.56OHM SM |
1,340 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 280 mA | 280mA | Shielded | 1.56Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
 TDK.jpg)
|
MLF2012E8R2KT000FIXED IND 8.2UH 15MA 700MOHM SMD |
882 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±10% | 15 mA | - | Shielded | 700mOhm Max | 50 @ 4MHz | 35MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
SLF6025T-680MR42-PFFIXED IND 68UH 540MA 444MOHM SMD |
837 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 540 mA | 420mA | Shielded | 444mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
|
SLF6025T-6R8M1R3-PFFIXED IND 6.8UH 1.5A 53.04 MOHM |
812 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.5 A | 1.3A | Shielded | 53.04mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
|
SLF12575T-2R7N7R0-PFFIXED IND 2.7UH 7A 11.3 MOHM SMD |
500 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 7 A | 10A | Shielded | 11.3mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
BSCH001005053N0SCPFIXED IND 3NH 400MA 150MOHM SMD |
10,607 |
|
Datasheet |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3 nH | ±0.3nH | 400 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
MCLA1005V2-100-RFIXED IND 10NH 300MA 400MOHM SMD |
1,000 |
|
Datasheet |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.2GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
7847806270WE-MCI MULTILAYER CERAMIC SMD IN |
966 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±5% | 300 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 1.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQG15HN82NH02DFIXED IND 82NH 200MA 1.6OHM SMD |
926 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 82 nH | ±3% | 200 mA | - | Unshielded | 1.6Ohm Max | - | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MCLA1608V2-390-RFIXED IND 39NH 300MA 700MOHM SMD |
915 |
|
Datasheet |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 39 nH | ±5% | 300 mA | - | Unshielded | 700mOhm Max | 12 @ 100MHz | 1.4GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCLA1608V2-181-RFIXED IND 180NH 200MA 1.9OHM SMD |
900 |
|
Datasheet |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 180 nH | ±5% | 200 mA | - | Unshielded | 1.9Ohm Max | 8 @ 50MHz | 400MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
BSCH0010050522NJCPFIXED IND 22NH 300MA 420MOHM SMD |
880 |
|
Datasheet |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 300 mA | - | Unshielded | 420mOhm Max | 8 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MCLA1005V2-151-RFIXED IND 150NH 100MA 3.2OHM SMD |
850 |
|
Datasheet |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 150 nH | ±5% | 100 mA | - | Unshielded | 3.2Ohm Max | 8 @ 100MHz | 550MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
