Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1140-391K-RCFIXED IND 390UH 5.8A 82 MOHM TH |
42 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 5.8 A | 10.4A | Unshielded | 82mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
MPX1D2213LR47FIXED IND 470NH 90A 0.483MOHM SM |
117 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 90 A | 140A | Shielded | 0.483mOhm Max | - | 45MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L1R0FIXED IND 1UH 74A 1 MOHM SMD |
90 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 74 A | 84A | Shielded | 1mOhm Max | - | 22MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L1R5FIXED IND 1.5UH 68A 1.2 MOHM SMD |
60 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 68 A | 60A | Shielded | 1.2mOhm Max | - | 17MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L220FIXED IND 22UH 19.5A 13.2MOHM SM |
22 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 19.5 A | 20.5A | Shielded | 13.2mOhm Max | - | 3.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L3R3FIXED IND 3.3UH 54A 1.8 MOHM SMD |
49 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 54 A | 48A | Shielded | 1.8mOhm Max | - | 11MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L680FIXED IND 68UH 12.5A 30.8MOHM SM |
13 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 68 µH | ±20% | 12.5 A | 14A | Shielded | 30.8mOhm Max | - | 2.1MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
7443783533330FIXED IND 33UH 22A 9.9 MOHM TH |
36 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 22 A | 39.2A | Shielded | 9.9mOhm Max | - | 6.08MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
CTX20-10-52LP-RFIXED IND 20UH 16A 7 MOHM TH |
19 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 16 A | 16A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.594" Dia (40.50mm) | 0.709" (18.00mm) |
|
1538M22FIXED IND 10UH 20A 6 MOHM TH |
9 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 20 A | - | Unshielded | 6mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.720" Dia x 1.690" L (18.29mm x 42.93mm) | - |
|
HC3-4R7-RFIXED IND 4.7UH 33.8A 2.17 MOHM |
24 |
|
Datasheet |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 33.8 A | 38A | Unshielded | 2.17mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
HC3-6R0-RFIXED IND 6UH 33.8A 2.17MOHM SMD |
34 |
|
Datasheet |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 33.8 A | 30A | Unshielded | 2.17mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
MPXV1D2213L220FIXED IND 22UH 19.5A 13.2MOHM SM |
50 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 19.5 A | 20.5A | Shielded | 13.2mOhm Max | - | 3.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPXV1D2213LR47FIXED IND 470NH 90A 0.48MOHM SMD |
50 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 90 A | 140A | Shielded | 0.48mOhm Max | - | 45MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPXV1D2213L2R2FIXED IND 2.2UH 59A 1.4 MOHM SMD |
45 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 59 A | 56A | Shielded | 1.4mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPXV1D2213L470FIXED IND 47UH 15.5A 20.5MOHM SM |
33 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 15.5 A | 19A | Shielded | 20.5mOhm Max | - | 2.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
1539M19FIXED IND 50UH 14A 12 MOHM TH |
19 |
|
Datasheet |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 14 A | - | Unshielded | 12mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.110" (28.19mm) |
|

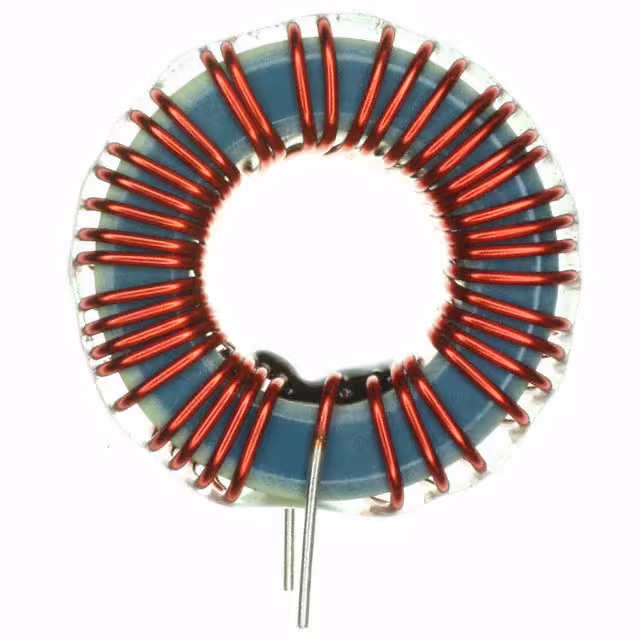

CTX150-5-52-RFIXED IND 150UH 7.7A 40.1MOHM TH |
39 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 7.7 A | 7.5A | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.827" Dia x 0.780" W (46.40mm x 19.80mm) | - |
|
|
CTX150-5-52LP-RFIXED IND 150UH 7.7A 40.1MOHM TH |
32 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 7.7 A | 7.5A | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.827" Dia (46.40mm) | 0.780" (19.80mm) |
|
|
1539M21FIXED IND 250UH 6.4A 59 MOHM TH |
18 |
|
Datasheet |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 6.4 A | - | Unshielded | 59mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.110" (28.19mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
