Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SHBC24W-2R4A0174VCMC 174UH 20A 2LN TH |
39 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 174 µH | ±20% | 20 A | - | Unshielded | 11.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 2.268" Dia (57.60mm) | 2.268" (57.60mm) |
|
|
SHBC24W-2R1A0311VCMC 311UH 15A 2LN TH |
42 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 311 µH | ±20% | 15 A | - | Unshielded | 20.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 2.268" Dia (57.60mm) | 2.268" (57.60mm) |
|
1540M22FIXED IND 900UH 3.75A 175MOHM TH |
15 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 900 µH | ±15% | 3.75 A | - | Unshielded | 175mOhm Max | - | - | - | - | - | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
|

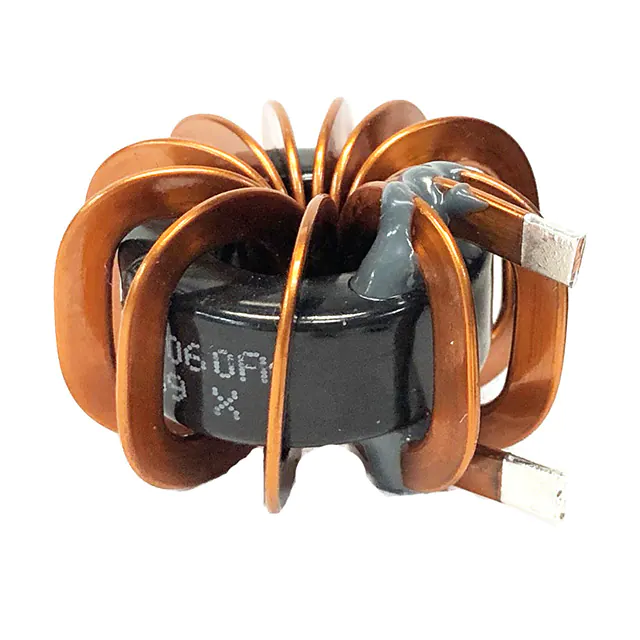

750343811FIXED IND 9.5UH 15A 6 MOHM TH |
55 |
|
Datasheet |
MID-FLT | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 9.5 µH | ±10% | 15 A | 15A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.654" Dia x 1.060" W (42.00mm x 27.00mm) | 1.654" (42.00mm) |
|
154MFIXED IND 2H 100MA 175 OHM CHASS |
18 |
|
Datasheet |
154 | Nonstandard | Bulk | Active | - | - | 2 H | ±15% | 100 mA | - | Unshielded | 175Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) |
|

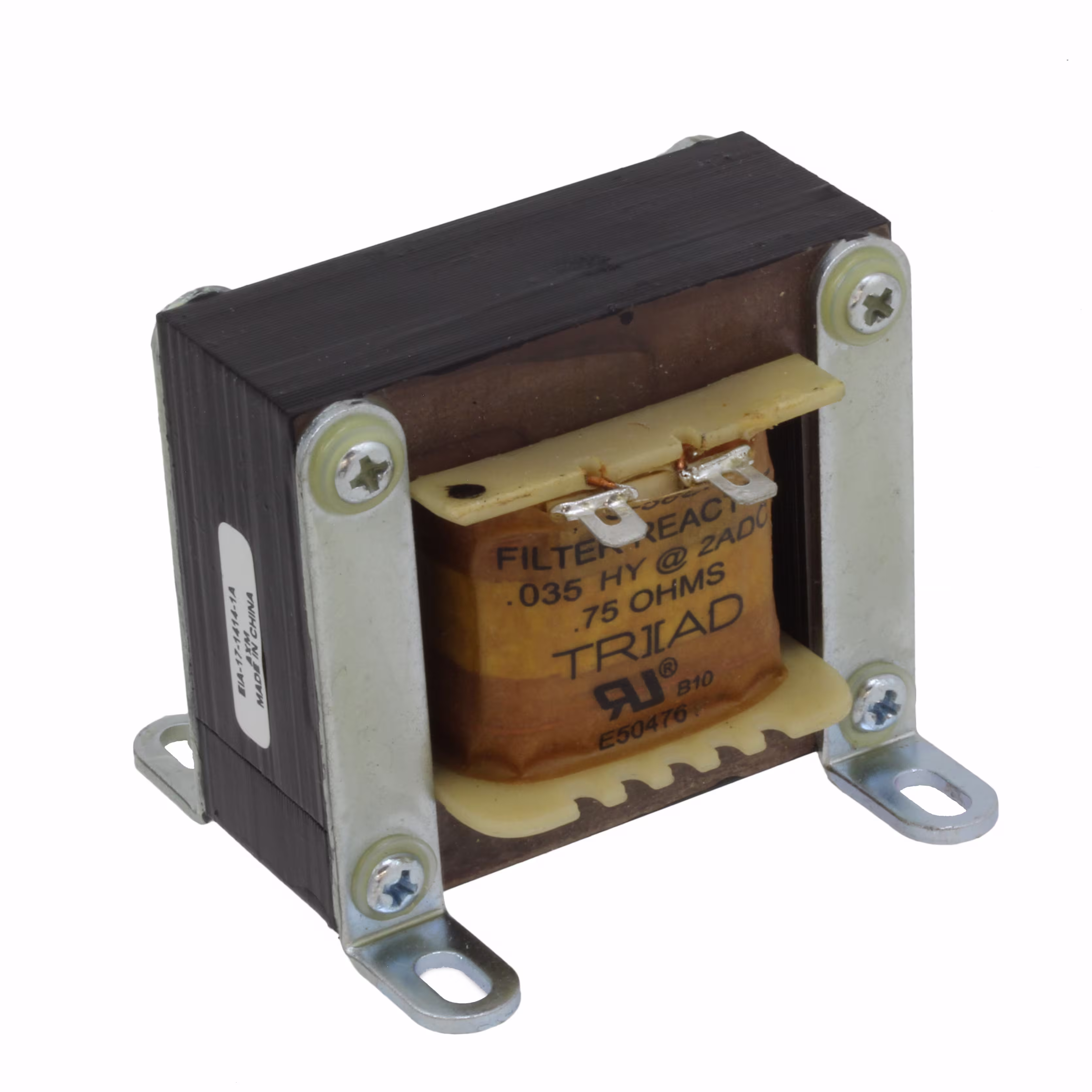

C-56UFIXED IND 35MH 2A 790 MOHM CHASS |
75 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 35 mH | -20%, +50% | 2 A | - | Unshielded | 790mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 2.625" L x 2.000" W (66.68mm x 50.80mm) | 2.250" (57.15mm) |
|

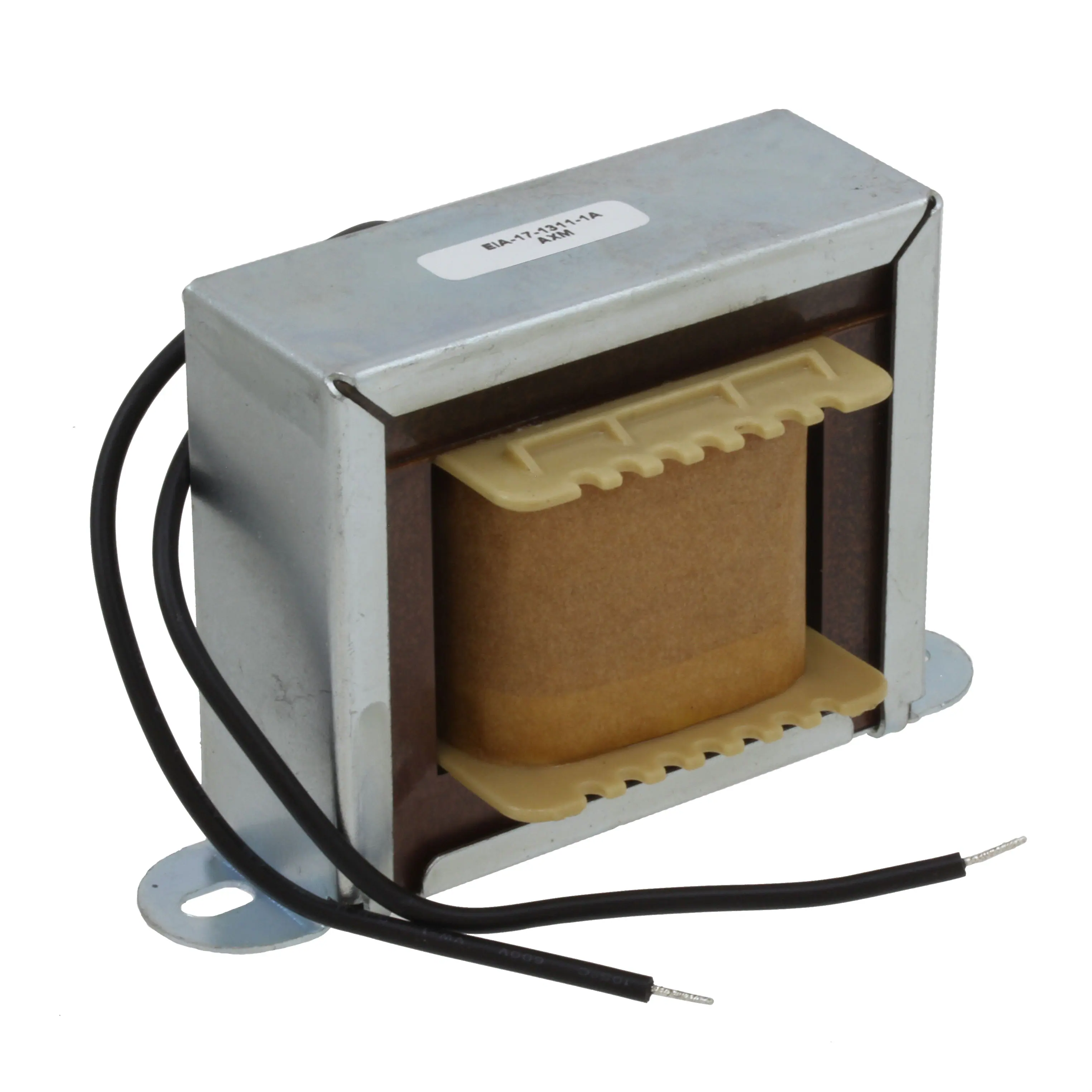

C-17XFIXED IND 1.5H 300MA 40 OHM CHAS |
21 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 1.5 H | -20%, +50% | 300 mA | - | Unshielded | 40Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.687" L x 2.000" W (93.65mm x 50.80mm) | 2.281" (57.94mm) |
|
760801101FIXED IND 255UH 11.2A 0.036OHM |
26 |
|
Datasheet |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 255 µH | ±20% | 11.2 A | 24A | Unshielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.362" Dia (60.00mm) | 1.339" (34.00mm) |
|
|
154EFIXED IND 20H 20MA 1.666K OHM |
9 |
|
Datasheet |
154 | Nonstandard | Bulk | Active | - | - | 20 H | ±15% | 20 mA | - | Unshielded | 1.666kOhm | - | - | - | - | - | - | Chassis Mount | - | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) |
|

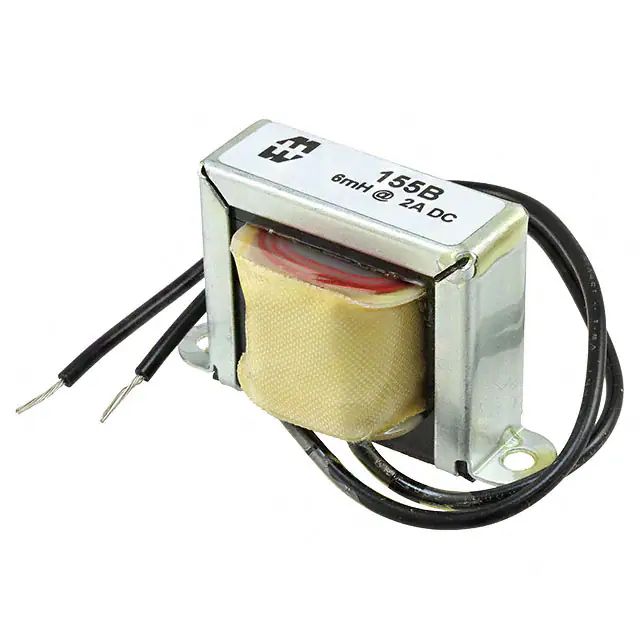

155BFIXED IND 6MH 2A 300 MOHM CHASS |
61 |
|
Datasheet |
155 | Nonstandard | Bulk | Active | - | - | 6 mH | ±15% | 2 A | - | Unshielded | 300mOhm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.380" W (60.45mm x 35.05mm) | 1.380" (35.05mm) |
|
194AFIXED IND 4H 50MA 167 OHM CHASS |
12 |
|
Datasheet |
194 | Nonstandard | Box | Active | - | - | 4 H | ±15% | 50 mA | - | Unshielded | 167Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.200" W (60.45mm x 30.48mm) | 1.375" (34.93mm) |
|
156RFIXED IND 1.5H 200MA 56 OHM CHAS |
18 |
|
Datasheet |
156 | Nonstandard | Bulk | Active | - | - | 1.5 H | ±15% | 200 mA | - | Unshielded | 56Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
|
|
194BFIXED IND 4H 90MA 108 OHM CHASS |
13 |
|
Datasheet |
194 | Nonstandard | Box | Active | - | - | 4 H | ±15% | 90 mA | - | Unshielded | 108Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
506WLSN3R30KT350TFIXED IND 3.3UH 350MA 1.2OHM SMD |
154 |
|
Datasheet |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±10% | 350 mA | - | Unshielded | 1.2Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
|
760801403FIXED IND 355UH 12.3A 0.035OHM |
48 |
|
Datasheet |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 355 µH | ±20% | 12.3 A | 23A | Unshielded | 35mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.087" Dia (53.00mm) | 1.969" (50.00mm) |
|

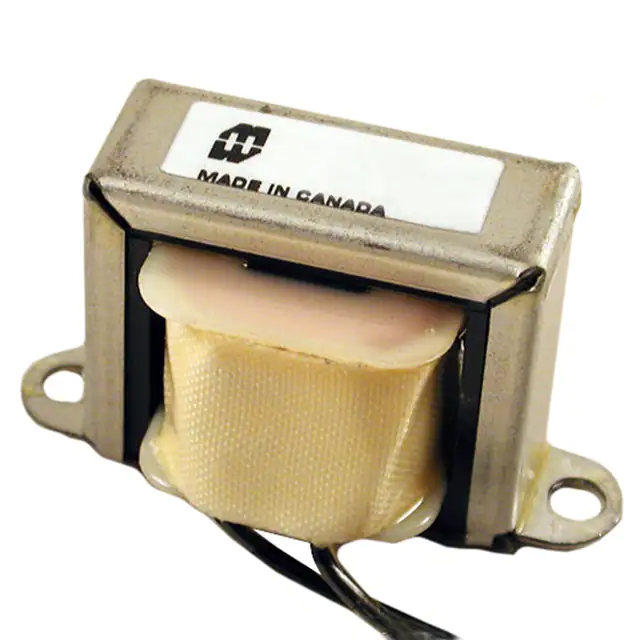

157DFIXED IND 1MH 10A 38 MOHM CHASS |
39 |
|
Datasheet |
157 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 10 A | - | Unshielded | 38mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
159ZEFIXED IND 28MH 3A 430 MOHM CHASS |
38 |
|
Datasheet |
159 | Nonstandard | Bulk | Active | - | - | 28 mH | ±15% | 3 A | - | Unshielded | 430mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
506WLSN1R47KT694TFIXED IND 1.47UH 694MA 330 MOHM |
75 |
|
Datasheet |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.47 µH | ±10% | 694 mA | - | Unshielded | 330mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
1539M31FIXED IND 5MH 2.2A 714 MOHM TH |
9 |
|
Datasheet |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 mH | ±10% | 2.2 A | - | Unshielded | 714mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
|
159ZGFIXED IND 15MH 4A 250 MOHM CHASS |
28 |
|
Datasheet |
159 | Nonstandard | Bulk | Active | - | - | 15 mH | ±15% | 4 A | - | Unshielded | 250mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
