Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447231102FIXED IND 1MH 800MA 860 MOHM TH |
80 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 1 mH | ±5% | 800 mA | 1A | Unshielded | 860mOhm Max | - | 1.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
744710205FIXED IND 2UH 5A 6.5 MOHM TH |
82 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 5 A | - | Unshielded | 6.5mOhm | - | 100MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.232" Dia x 0.551" L (5.90mm x 14.00mm) | - |
|
SRP1040VA-330MFIXED IND 33UH 5A 117.7MOHM SMD |
26 |
|
Datasheet |
SRP1040VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 5 A | 5.3A | Shielded | 117.7mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
FCUL0630-H-R22M=P3FIXED IND |
1,050 |
|
Datasheet |
FCUL0630 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 220 nH | ±20% | 26 A | 25A | Unshielded | 1.12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|

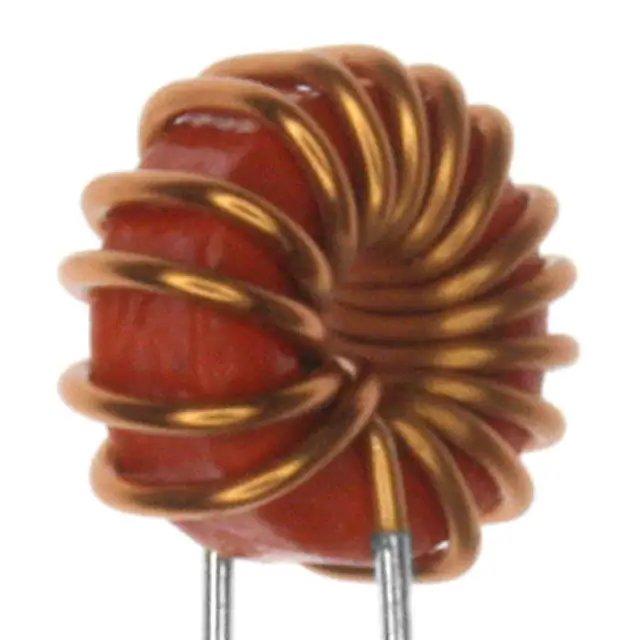

7447054FIXED IND 10UH 2A 20 MOHM TH |
97 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 10 µH | ±20% | 2 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.413" Dia x 0.217" W (10.50mm x 5.50mm) | - |
|
VLBU6565100T-R15LFIXED IND 150NH 70A 0.18MOHM SMD |
800 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 70 A | 52A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
PA4343.683ANLTIND POWDER MOLDED 13.5X12.6X6.2 |
84 |
|
Datasheet |
PA4343.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 4.8 A | 5A | Shielded | 100mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|

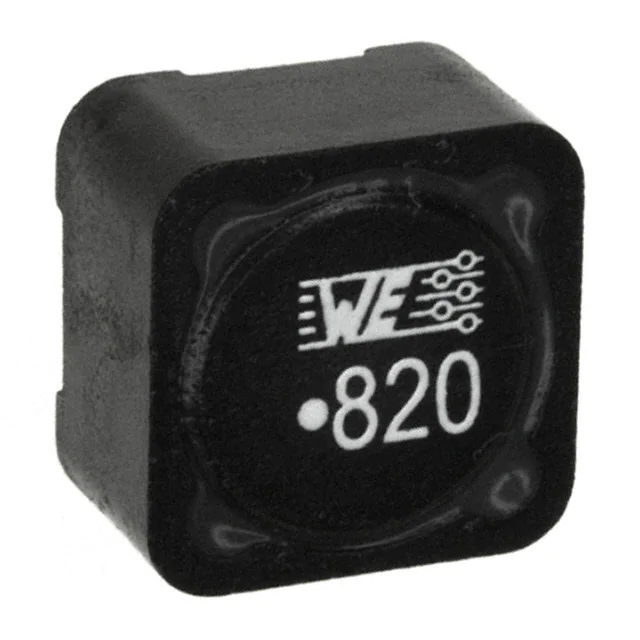

744770182FIXED IND 82UH 2.25A 160MOHM SMD |
54 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.25 A | 2.45A | Shielded | 160mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

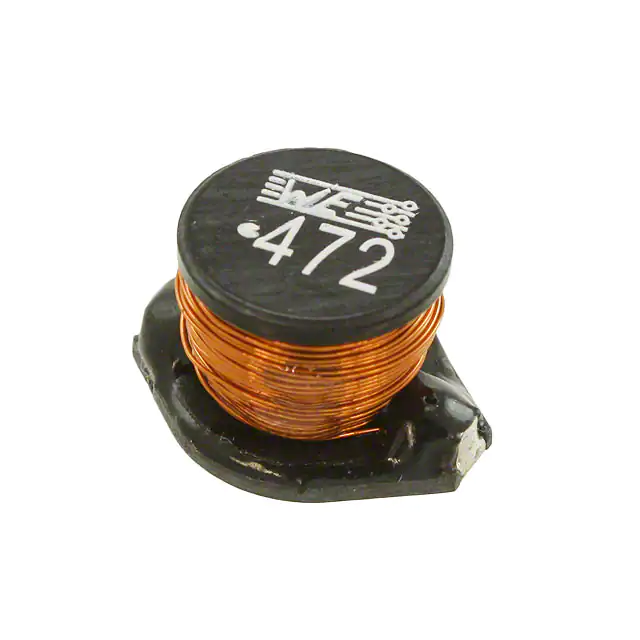

74458304FIXED IND 4.7MH 400MA 4.8OHM SMD |
69 |
|
Datasheet |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 400 mA | 900mA | Unshielded | 4.8Ohm Max | - | 500kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.472" (12.00mm) |
|
7447709222FIXED IND 2.2MH 530MA 3.75OHM SM |
78 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 530 mA | 750mA | Shielded | 3.75Ohm Max | - | 660kHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
IHLP6767DZER100M11FIXED IND 10UH 12A 18.92 MOHM |
49 |
|
Datasheet |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 12 A | 8A | Shielded | 18.92mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
1532HFIXED IND 100UH 400MA 3 OHM TH |
46 |
|
Datasheet |
1532 | Axial | Bulk | Active | Wirewound | - | 100 µH | ±10% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | - | 790 kHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
1422509CFIXED IND 2.2MH 900MA 1 OHM TH |
99 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 2.2 mH | ±10% | 900 mA | - | Unshielded | 1Ohm Max | 43 @ 50kHz | 900kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.996" Dia (25.30mm) | 0.610" (15.50mm) |
|
|
1422441CFIXED IND 220UH 4.1A 73 MOHM TH |
100 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 220 µH | ±10% | 4.1 A | - | Unshielded | 73mOhm Max | 33 @ 100kHz | 2.3MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.035" Dia (26.30mm) | 0.787" (20.00mm) |
|
TCK-154FIXED IND 4.7UH 1.15A 109MOHM SM |
94 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 4.7 µH | ±20% | 1.15 A | - | Unshielded | 109mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.158" W (4.50mm x 4.00mm) | 0.146" (3.70mm) |
|
744373965022FIXED IND 2.2UH 17A 0.0042OHM SM |
27 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 17 A | 41.1A | Shielded | 4.2mOhm Max | - | 21.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
2105-V-RCFIXED IND 22UH 7A 15 MOHM TH |
88 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 22 µH | ±15% | 7 A | - | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
AMDLA1707S-330MTFIXED IND 33UH 12A 37 MOHM SMD |
34 |
|
Datasheet |
AMDLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 12 A | 12A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
S1210R-682KFIXED IND 6.8UH 328MA 1.5OHM SMD |
70 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 328 mA | - | Shielded | 1.5Ohm Max | 40 @ 7.9MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
2100LL-390-H-RCFIXED IND 39UH 6.6A 15 MOHM TH |
38 |
|
Datasheet |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 39 µH | ±15% | 6.6 A | - | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
