Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1641-473KFIXED IND 47UH 200MA 2.11 OHM TH |
500 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75089 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 200 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641-103KFIXED IND 10UH 228MA 1.62 OHM TH |
497 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75088 | Axial | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±10% | 228 mA | 228mA | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-103KFIXED IND 10UH 228MA 1.62 OHM TH |
450 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 µH | ±10% | 228 mA | 228mA | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
784373170150Power Inductor 15 H 20 |
150 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 13.9 A | 21.7A | Shielded | 21mOhm Max | - | 6.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170560Power Inductor 56 H 20 |
150 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 56 µH | ±20% | 7.9 A | 10.3A | Shielded | 80mOhm Max | - | 2.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170056Power Inductor 5.6 H 20 |
150 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 24.2 A | 40.85A | Shielded | 6.5mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170330Power Inductor 33 H 20 |
150 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 10.2 A | 15.6A | Shielded | 36mOhm Max | - | 3.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170820Power Inductor 82 H 20 |
150 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 5.5 A | 9.6A | Shielded | 105mOhm Max | - | 2.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170047Power Inductor 4.7 H 20 |
150 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 27.5 A | 39.5A | Shielded | 5.2mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170220Power Inductor 22 H 20 |
150 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 12.15 A | 17.15A | Shielded | 27mOhm Max | - | 4.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170680Power Inductor 68 H 20 |
147 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 6.6 A | 8.2A | Shielded | 85mOhm Max | - | 2.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170082Power Inductor 8.2 H 20 |
142 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 20.6 A | 32.1A | Shielded | 9.2mOhm Max | - | 9.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170068Power Inductor 6.8 H 20 |
138 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 22.1 A | 33A | Shielded | 7.8mOhm Max | - | 9.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|

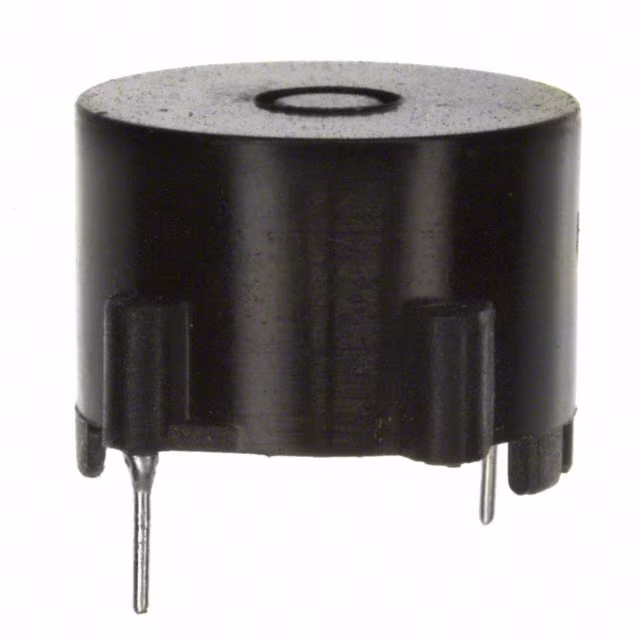

SH50F-0.9-330FIXED IND 330UH 900MA 740MOHM TH |
200 |
|
Datasheet |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
|
1641R-272KFIXED IND 2.7UH 545MA 280MOHM TH |
500 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.7 µH | ±10% | 545 mA | 545mA | Shielded | 280mOhm Max | 44 @ 7.9MHz | 92MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-182KFIXED IND 1.8UH 775MA 140MOHM TH |
500 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.8 µH | ±10% | 775 mA | 775mA | Shielded | 140mOhm Max | 44 @ 7.9MHz | 105MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-183KFIXED IND 18UH 305MA 890 MOHM TH |
500 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±10% | 305 mA | 235mA | Shielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-472KFIXED IND 4.7UH 390MA 550MOHM TH |
500 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.7 µH | ±10% | 390 mA | 390mA | Shielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-101KFIXED IND 100NH 1.83A 25 MOHM TH |
499 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±10% | 1.83 A | 1.83A | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-473KFIXED IND 47UH 200MA 2.11 OHM TH |
480 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±10% | 200 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
