Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17S474KMOLDED SHIELDED RF COILS AXIAL |
5,485 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 mH | ±10% | 31 mA | - | Shielded | 81.6Ohm Max | 45 @ 250kHz | 740kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
SMRF5025-470JLFMOLDED UNSHIELDED INDUCTOR |
790 |
|
Datasheet |
SMRF5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±5% | 1.75 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.230" (5.84mm) |
|
|
784373170470Power Inductor 47 H 20 |
148 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 8.4 A | 13.05A | Shielded | 55mOhm Max | - | 3.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
|
784373170100Power Inductor 10 H 20 |
126 |
|
Datasheet |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 17.9 A | 26A | Shielded | 11mOhm Max | - | 7.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.687" L x 0.667" W (17.45mm x 16.95mm) | 0.256" (6.50mm) |
|
4922R-41LFIXED IND 2.2MH 141MA 20 OHM SMD |
1,600 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±15% | 141 mA | 141mA | Unshielded | 20Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-38LFIXED IND 1.2MH 200MA 10 OHM SMD |
800 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±15% | 200 mA | 200mA | Unshielded | 10Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
S1812R-104JFIXED IND 100UH 169MA 7 OHM SMD |
485 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±5% | 169 mA | - | Shielded | 7Ohm Max | 40 @ 790kHz | 7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
7447704220WE-PD SMT SHIELDED POWER INDUCTO |
246 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 6.2 A | 7.2A | Unshielded | 33mOhm Max | - | 11.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.394" (10.00mm) |
|
|
7447704471WE-PD SMT SHIELDED POWER INDUCTO |
219 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±20% | 1.3 A | 1.7A | Shielded | 500mOhm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.394" (10.00mm) |
|
|
7447704150WE-PD SMT SHIELDED POWER INDUCTO |
185 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 7 A | 8.8A | Shielded | 26mOhm Max | - | 20.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.394" (10.00mm) |
|
SPD127R-222MFIXED IND 2.2UH 8.5A 15 MOHM SMD |
500 |
|
Datasheet |
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 8.5 A | 8.5A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

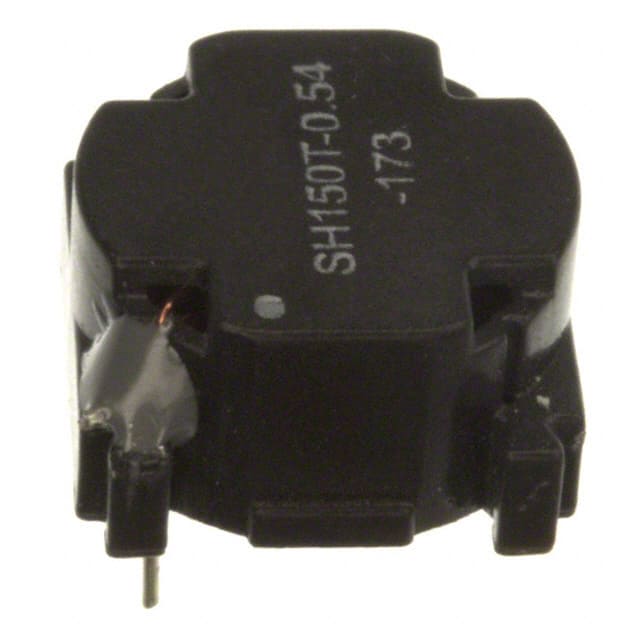

SH150T-0.54-173FIXED IND 173UH 540MA 600MOHM TH |
200 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 173 µH | ±20% | 540 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|
|
PGL6704.222HLTIND FLAT COIL HF 2.2UH 16A |
480 |
|
Datasheet |
PGL6704.222HLT | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 34 A | 16A | Unshielded | 1.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.748" L x 0.673" W (19.00mm x 17.1mm) | 0.531" (13.50mm) |
|
1008R-220KFIXED IND 22NH 1.235A 80MOHM SMD |
500 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 22 nH | ±10% | 1.235 A | - | Unshielded | 80mOhm Max | 35 @ 50MHz | 1.8GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1008R-152JFIXED IND 1.5UH 548MA 500MOHM SM |
455 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±5% | 548 mA | - | Unshielded | 500mOhm Max | 30 @ 7.9MHz | 92MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1008R-561KFIXED IND 560NH 808MA 230MOHM SM |
205 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 nH | ±10% | 808 mA | - | Unshielded | 230mOhm Max | 40 @ 25MHz | 195MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
ASPIAIG-Q1510-330M-TFIXED IND 33UH 13A 20 MOHM SMD |
438 |
|
Datasheet |
ASPIAIG-Q1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 33 µH | ±20% | 13 A | 16.7A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
|
ASPIAIG-Q1510-220M-TFIXED IND 22UH 16A 15.8MOHM SMD |
282 |
|
Datasheet |
ASPIAIG-Q1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 16 A | 18A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
|
ASPIAIG-Q1510-150M-TFIXED IND 15UH 18A 11.5MOHM SMD |
179 |
|
Datasheet |
ASPIAIG-Q1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 18 A | 20A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
|
ASPIAIG-Q1510-6R8M-TFIXED IND 6.8UH 26A 4.6MOHM SMD |
130 |
|
Datasheet |
ASPIAIG-Q1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 26 A | 31A | Shielded | 4.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
