Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F6433JLCAP FILM 0.043UF 5% 630VDC RAD |
2,200 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.311" W (13.00mm x 7.90mm) | 0.480" (12.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECH-U1C822JB5CAP FILM 8200PF 5% 16VDC 0805 |
3,104 |
|
Datasheet |
0805 (2012 Metric) | 8200 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
 Series Style B.jpg)
|
ECW-F2W184JAQCAP FILM 0.18UF 5% 450VDC RADIAL |
6,920 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.240" W (13.00mm x 6.10mm) | 0.657" (16.70mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-F4114JLCAP FILM 0.11UF 5% 400VDC RADIAL |
7,287 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.268" W (15.50mm x 6.80mm) | 0.504" (12.80mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F4124JLCAP FILM 0.12UF 5% 400VDC RADIAL |
5,674 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.276" W (15.50mm x 7.00mm) | 0.512" (13.00mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
MABA013390KHSCAP FILM 0.39UF 10% 800VDC RAD |
4,513 |
|
Datasheet |
Radial | 0.39 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | Motor Run | - | - |
|
QXK2G334KTPTZHCAP FILM 0.33UF 10% 400VDC RAD |
21 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.339" W (20.50mm x 8.60mm) | 0.642" (16.30mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
B32682A7332K000CAP FILM 3300PF 10% 1.25KVDC RAD |
8 |
|
Datasheet |
Radial | 3300 pF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|

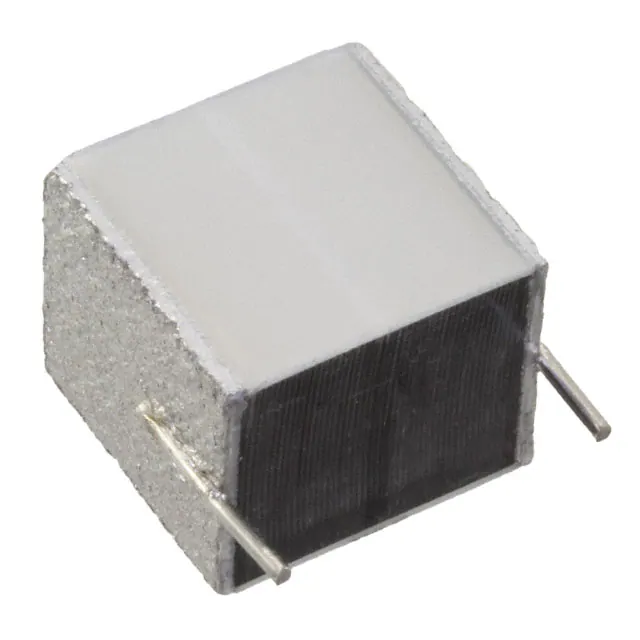

B32562H8474K000CAP FILM 0.47UF 10% 630VDC 2DIP |
3,543 |
|
Datasheet |
2-DIP | 0.47 µF | ±10% | 350V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.531" W (16.50mm x 13.50mm) | 0.642" (16.30mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
F863BW474K310ZCAP FILM 0.47UF 10% 630VDC RAD |
25 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R60MN32204030KCAP FILM 0.22UF 10% 400VDC RAD |
1 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
B32621A4473K000CAP FILM 0.047UF 10% 400VDC RAD |
2,178 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
R75MN415050H3JCAP FILM 1.5UF 5% 400VDC RADIAL |
6,260 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
890324027006CSCAP FILM 0.68UF 10% 275VAC RAD |
8 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.413" W (31.00mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-F6243HLCAP FILM 0.024UF 3% 630VDC RAD |
6,766 |
|
Datasheet |
Radial | 0.024 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.252" W (12.50mm x 6.40mm) | 0.421" (10.70mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
C4AQPLU4110M11JCAP FILM 1.1UF 5% 1.2KVDC RADIAL |
5,052 |
|
Datasheet |
Radial | 1.1 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 28.9 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
ECW-F4434HLCAP FILM 0.43UF 3% 400VDC RADIAL |
2,964 |
|
Datasheet |
Radial | 0.43 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.421" W (18.00mm x 10.70mm) | 0.673" (17.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-F6274HLCAP FILM 0.27UF 3% 630VDC RADIAL |
5,661 |
|
Datasheet |
Radial | 0.27 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.409" W (20.50mm x 10.40mm) | 0.717" (18.20mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F6563JLCAP FILM 0.056UF 5% 630VDC RAD |
9,415 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.268" W (15.50mm x 6.80mm) | 0.500" (12.70mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F6623JLCAP FILM 0.062UF 5% 630VDC RAD |
4,091 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.280" W (15.50mm x 7.10mm) | 0.512" (13.00mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
