Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

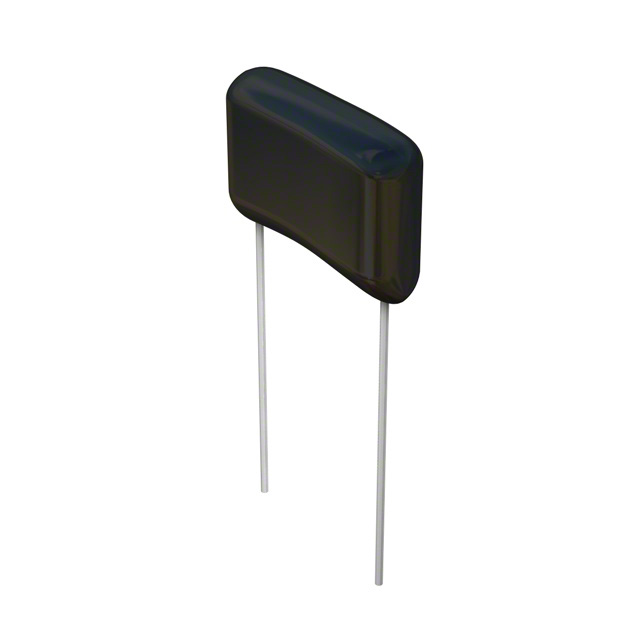

DME2P39K-FCAP FILM 0.39UF 10% 250VDC RAD |
8,952 |
|
Datasheet |
Radial | 0.39 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.193" W (18.50mm x 4.90mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R75GF310050H3JCAP FILM 0.1UF 5% 160VDC RADIAL |
9 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 15.9 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
333MKP275KCAP FILM 0.033UF 10% 310VAC RAD |
9,378 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.366" (9.30mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R60MF3100506AKCAP FILM 0.1UF 10% 400VDC RADIAL |
10 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
B32621A3682J000CAP FILM 6800PF 5% 250VDC RADIAL |
2,034 |
|
Datasheet |
Radial | 6800 pF | ±5% | 140V | 250V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
ECW-H6184HCBCAP FILM 0.18UF 3% 630VDC RADIAL |
4,037 |
|
Datasheet |
Radial | 0.18 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.453" W (20.70mm x 11.50mm) | 0.839" (21.30mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R75QN3220AA00KCAP FILM 0.22UF 10% 1KVDC RADIAL |
4,085 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FG2J155Q1CAP FILM 1.5UF 10% 630VDC RADIAL |
6,312 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.472" W (27.00mm x 12.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
 Series Straight 26x14.jpg)
|
ECW-FA2J185JCAP FILM 1.8UF 5% 630VDC RADIAL |
9,306 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.583" W (26.00mm x 14.80mm) | 0.780" (19.80mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
R73QN23304030JCAP FILM 0.033UF 5% 1KVDC RADIAL |
9,596 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75PI2470AA30JCAP FILM 0.047UF 5% 630VDC RAD |
2,063 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

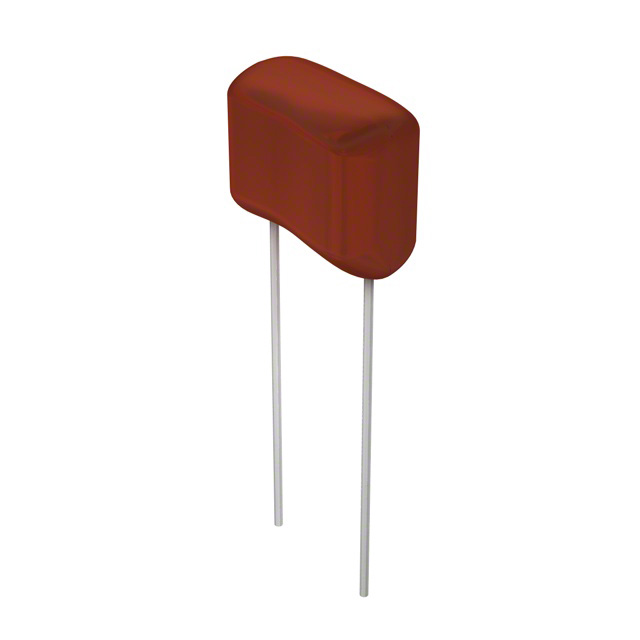

DPM2P1K-FCAP FILM 0.1UF 10% 250VDC RADIAL |
3,527 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.315" W (13.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

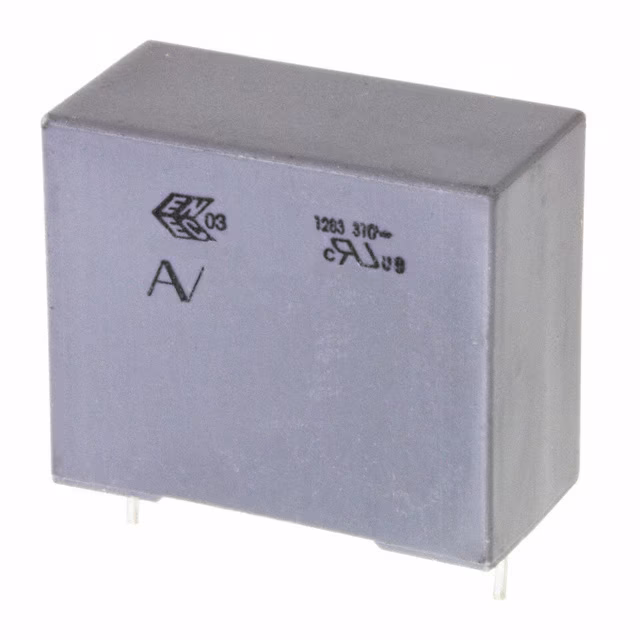

R49AN368000B1MCAP FILM 0.68UF 20% 800VDC RAD |
9,446 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
ECW-FD2W125JCAP FILM 1.2UF 5% 450VDC RADIAL |
1 |
|
Datasheet |
Radial | 1.2 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.457" (11.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
121MPE273JCAP FILM 0.027UF 5% 1.25KVDC RAD |
2,651 |
|
Datasheet |
Radial | 0.027 µF | ±5% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R76MN3470SE30JCAP FILM 0.47UF 5% 400VDC RADIAL |
6,916 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E6824JFCAP FILM 0.82UF 5% 630VDC RADIAL |
8,629 |
|
Datasheet |
Radial | 0.82 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.445" W (31.00mm x 11.30mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECW-F4394JLCAP FILM 0.39UF 5% 400VDC RADIAL |
4,398 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.406" W (18.00mm x 10.30mm) | 0.654" (16.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R79MC2470Z340JCAP FILM 0.047UF 5% 400VDC RAD |
22 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
R474I268050A1KV057CAP FILM 0.068UF 10% 1KVDC RAD |
2,101 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
