Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32776E9206K000CAP FILM 20UF 10% 900VDC RADIAL |
4,574 |
|
Datasheet |
Radial | 20 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
940C6W1P5K-FCAP FILM 1.5UF 10% 600VDC AXIAL |
3,528 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.984" Dia x 1.339" L (25.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B33331V7166J080CAP FILM 16UF 5% 460VAC RADIAL |
4 |
|
Datasheet |
Radial, Can | 16 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Chassis Mount | 1.594" Dia (40.50mm) | 3.031" (77.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
B32526T3156K000CAP FILM 15UF 10% 250VDC RADIAL |
9,920 |
|
Datasheet |
Radial | 15 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
932C4W10J-FCAP FILM 10UF 5% 400VDC AXIAL |
5,015 |
|
Datasheet |
Axial | 10 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.8 mOhms | -55°C ~ 105°C | Through Hole | 1.181" Dia x 1.654" L (30.00mm x 42.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
940C12P47K-FCAP FILM 0.47UF 1.2KVDC AXIAL |
9,316 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.906" Dia x 1.811" L (23.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
C274ACF5100SA0JCAP FILM 10UF 5% 470VAC RADIAL |
5,534 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
|
B33331V7256J080CAP FILM 25UF 5% 460VAC RADIAL |
5 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Chassis Mount | 1.772" Dia (45.00mm) | 3.425" (87.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
C4AF3BW5100T3MKFILM, POWER, METALLIZED POLYPROP |
5,724 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
C4AQNBW5300M3MJCAP FILM 30UF 5% 1KVDC RADIAL |
2,017 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
B32778Z4117K000CAP FILM 110UF 500VDC RDL 4 LEAD |
6,914 |
|
Datasheet |
Radial - 4 Leads | 110 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
C4AQIBW5400M3OJCAP FILM 40UF 5% 800VDC RADIAL |
2,518 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
EZP-V80406MTTCAP FILM 40UF 10% 800V RADIAL |
5,851 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.106" (53.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C4AQIBW5450M3MJCAP FILM 45UF 5% 800VDC RADIAL |
3,700 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C276CC35500AA0JCAP FILM 50UF 5% 470VAC RADIAL |
6,948 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.803" (122.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
B32656S7684K565CAP FILM 0.68UF 1.25KVDC SCREW |
5,641 |
|
Datasheet |
Rectangular Box | 0.68 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
B32320I4886K00088MFD 450V PP 50X57 PBT 5 PIN |
5,360 |
|
Datasheet |
Radial, Can - 5 Lead | 88 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 2.244" (57.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
F340X152248MPP2T0CAP FILM 2.2UF 20% 800VDC RADIAL |
1 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|

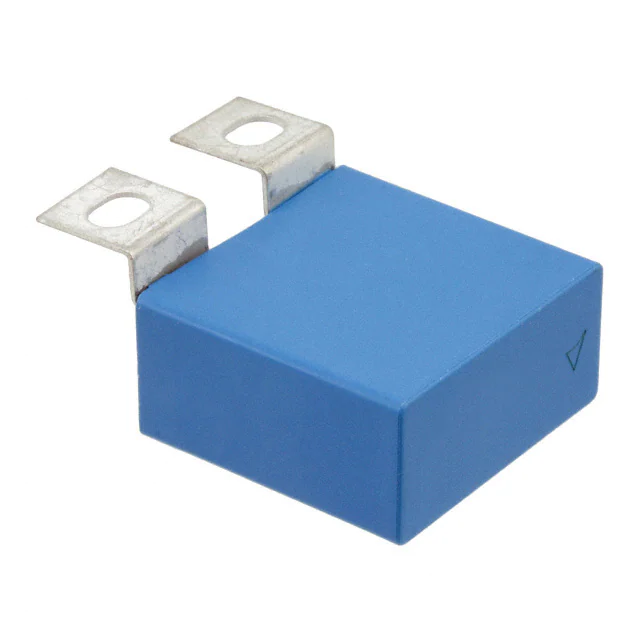

B32656S1334K561CAP FILM 0.33UF 10% 1.7KVDC SCRW |
7,878 |
|
Datasheet |
Rectangular Box | 0.33 µF | ±10% | 750V | 1700V (1.7kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 1.004" (25.50mm) | Snubber | AEC-Q200 | Low ESL |
|
EZP-E50506MTACAP FILM 50UF 10% 500VDC RADIAL |
5,309 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
