Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1U032206I00KSSDCAP FILM 0.22UF 10% 2KVDC RAD |
3,327 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.358" (34.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
ECW-FG80705JCAP FILM 7.0UF 800VDC RADIAL |
8,827 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
150105K63ECCAP FILM 1UF 10% 63VDC AXIAL |
8,155 |
|
Datasheet |
Axial | 1 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.315" Dia x 0.807" L (8.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - | - |
|
R76TR34704030JCAP FILM 0.47UF 5% 1.6KVDC RAD |
5 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4CAMUB3100AA0JCAP FILM 0.1UF 5% 850VDC AXIAL |
4,295 |
|
Datasheet |
Axial | 0.1 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 16.6 mOhms | -40°C ~ 85°C | Through Hole | 0.413" Dia x 1.299" L (10.50mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
R75MR433050H3JCAP FILM 3.3UF 5% 400VDC RADIAL |
3,009 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
F17724682260CAP FILM 0.68UF 20% 630VDC RAD |
8,160 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
QXK2E106KTPCAP FILM 10UF 10% 250VDC RADIAL |
5,775 |
|
Datasheet |
Radial | 10 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.201" L x 0.614" W (30.50mm x 15.60mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
473PPA202KCAP FILM 0.047UF 10% 2KVDC AXIAL |
2,395 |
|
Datasheet |
Axial, Can | 0.047 µF | ±10% | 650V | 2000V (2kV) | Polypropylene (PP), Metallized | 16.8 mOhms | -55°C ~ 85°C | Through Hole | 0.650" Dia x 1.142" L (16.50mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
715P10356KD3CAP FILM 10000PF 5% 600VDC RAD |
8,652 |
|
Datasheet |
Radial | 10000 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.358" Dia x 0.902" L (9.10mm x 22.90mm) | 0.654" (16.60mm) | PC Pins | 0.374" (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
ALH505K251A072CAP FILM 5UF 10% 250VAC RADIAL |
2,074 |
|
Datasheet |
Radial | 5 µF | ±10% | 250V | - | Polypropylene (PP) | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.331" (33.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
104PPA122KCAP FILM 0.1UF 10% 1.2KVDC AXIAL |
24 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 550V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 10.7 mOhms | -55°C ~ 85°C | Through Hole | 0.551" Dia x 1.339" L (14.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
150474J400LFCAP FILM 0.47UF 5% 400VDC AXIAL |
16 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.453" Dia x 1.299" L (11.50mm x 33.00mm) | - | PC Pins | - | General Purpose | - | - |
|
MKP1O136807E00MSSDCAP FILM 0.68UF 20% 1KVDC RAD |
15 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
475MWR100KCAP FILM 4.7UF 10% 100VDC AXIAL |
22 |
|
Datasheet |
Axial | 4.7 µF | ±10% | 63V | 100V | Polyester, Metallized | 376 mOhms | -40°C ~ 105°C | Through Hole | 0.492" Dia x 1.339" L (12.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
C274AA24500AA0JCAP FILM 5UF 5% 470VAC RADIAL |
7 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
930C2P22K-FCAP FILM 0.22UF 10% 250VDC AXIAL |
6,413 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 175V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.335" Dia x 1.000" L (8.50mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
|

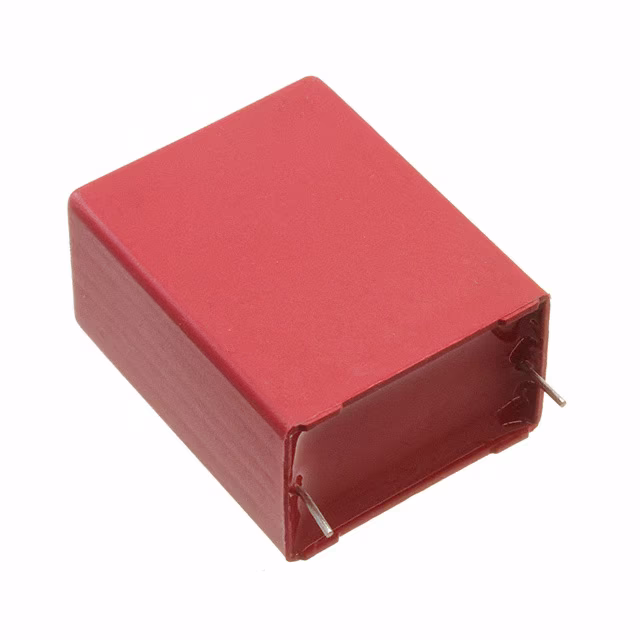

FKP4G041006J00JSSDCAP FILM 1UF 5% 400VDC RAD |
22 |
|
Datasheet |
Radial | 1 µF | ±5% | 250V | 400V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.787" W (31.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4AQOBU5100M12JCAP FILM 10UF 5% 900VDC RADIAL |
7,846 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
930C2P47K-FCAP FILM 0.47UF 10% 250VDC AXIAL |
9,991 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 175V | 250V | Polypropylene (PP), Metallized | 35 mOhms | -55°C ~ 105°C | Through Hole | 0.421" Dia x 1.000" L (10.70mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
