Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-UAAF155MCAP FILM 1.5UF 20% 275VAC RADIAL |
3,982 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.472" W (31.00mm x 12.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

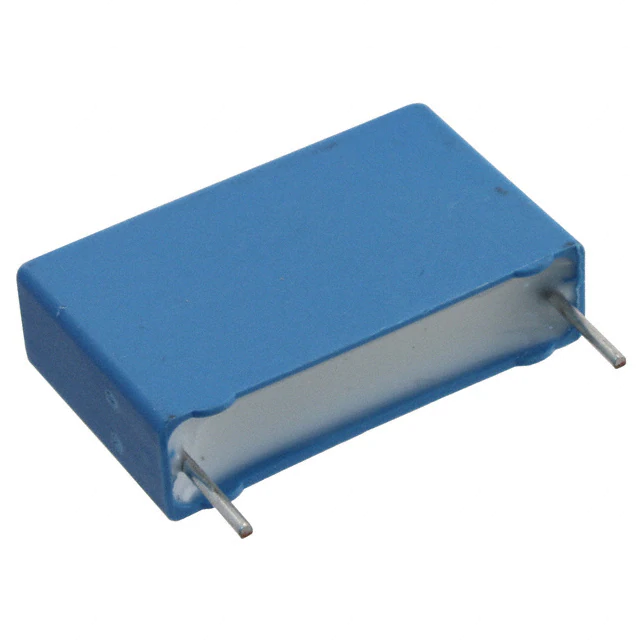

PHE840MD6330KD17R06L2CAP FILM 0.33UF 10% 760VDC RAD |
7,124 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
QXK2E684KTPCAP FILM 0.68UF 10% 250VDC RAD |
1 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.622" (15.80mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-F4683HLCAP FILM 0.068UF 3% 400VDC RAD |
9 |
|
Datasheet |
Radial | 0.068 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.449" (11.40mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R76TN282050H4JCAP FILM 0.08UF 5% 1.6KVDC RAD |
5,676 |
|
Datasheet |
Radial | 0.08 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 31 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-H12153JVCAP FILM 0.015UF 5% 1.25KVDC RAD |
5,009 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.374" W (18.00mm x 9.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R46KR410000M1MCAP FILM 1UF 20% 560VDC RADIAL |
6,018 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE840MD6470KD15R06L2CAP FILM 0.47UF 10% 760VDC RAD |
5,062 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC237353154CAP FILM 0.15UF 10% 400VDC RAD |
5,256 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
R463R410040M1KCAP FILM 1UF 10% 630VDC RAD |
9,093 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-F6183HLCAP FILM 0.018UF 3% 630VDC RAD |
3,700 |
|
Datasheet |
Radial | 0.018 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.417" (10.60mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
QXK2G474KTPTZHCAP FILM 0.47UF 10% 400VDC RAD |
5,220 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.398" W (20.50mm x 10.10mm) | 0.705" (17.90mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
155MWR100KCAP FILM 1.5UF 10% 100VDC AXIAL |
5,003 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 63V | 100V | Polyester, Metallized | 1.179 Ohms | -40°C ~ 105°C | Through Hole | 0.354" Dia x 1.063" L (9.00mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
ECQ-UAAV105S1CAP FILM 1.0UF 20% 310VAC RAD |
7,353 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.551" W (26.00mm x 14.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE426MD6330JR06L2CAP FILM 0.33UF 5% 630VDC RAD |
10 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32924C3155M000CAP FILM 1.5UF 20% 630VDC RADIAL |
3,759 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
121MPE223JCAP FILM 0.022UF 5% 1.25KVDC RAD |
2,736 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PME261KB6100KR30CAP FILM 0.1UF 10% 400VDC RADIAL |
8,403 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 220V | 400V | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | General Purpose | - | - |
|
PHC1403680KJCAP FILM 0.68UF 10% 400VDC AXIAL |
1 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 8.9 mOhms | -40°C ~ 85°C | Through Hole | 0.394" Dia x 1.260" L (10.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
QXK2G105KTPCAP FILM 1UF 10% 400VDC RADIAL |
7,806 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.004" L x 0.343" W (25.50mm x 8.70mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
