Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R474I31005001KCAP FILM 0.1UF 10% 1KVDC RADIAL |
8,748 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECW-H12472JVCAP FILM 4700PF 5% 1.25KVDC RAD |
4,460 |
|
Datasheet |
Radial | 4700 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
QXP2E473KRPTCAP FILM 0.047UF 10% 250VDC RAD |
2,057 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.630" L x 0.220" W (16.00mm x 5.60mm) | 0.437" (11.10mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
R49AN32204001MCAP FILM 0.22UF 20% 800VDC RAD |
2,906 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
QXK2J333KTPTZHCAP FILM 0.033UF 10% 630VDC RAD |
6,358 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.280" W (15.50mm x 7.10mm) | 0.524" (13.30mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|
R73UI11504000JCAP FILM 1500PF 5% 2KVDC RADIAL |
11 |
|
Datasheet |
Radial | 1500 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDEEA1470JA0N00CAP FILM 4700PF 5% 100VDC 1206 |
5,072 |
|
Datasheet |
1206 (3216 Metric) | 4700 pF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
QXK2G104KTPTZHCAP FILM 0.1UF 10% 400VDC RADIAL |
4,289 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.287" W (15.50mm x 7.30mm) | 0.508" (12.90mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|

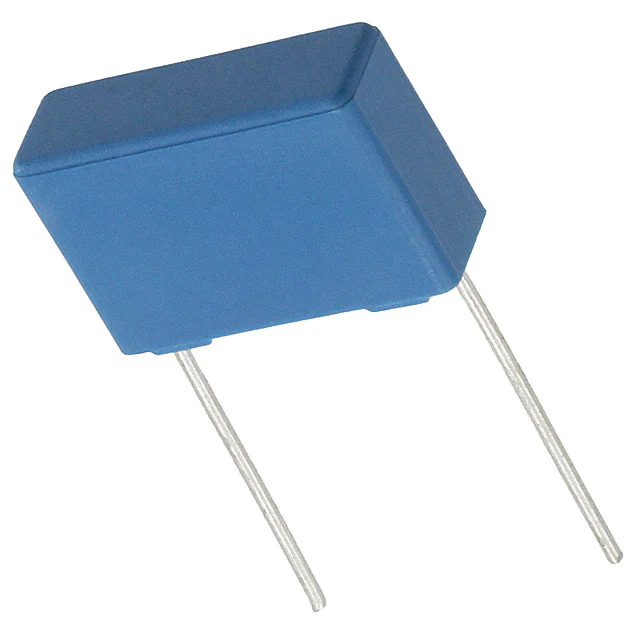

B32672P4684K000CAP FILM 0.68UF 10% 450VDC RAD |
4,227 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32562H3155K000CAP FILM 1.5UF 10% 250VDC 2DIP |
6,268 |
|
Datasheet |
2-DIP | 1.5 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.343" W (16.50mm x 8.70mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32652A0154J000CAP FILM 0.15UF 5% 1KV RADIAL |
8,659 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
R533I347050P0KCAP FILM 0.47UF 10% 630VDC RAD |
6,494 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.583" (14.80mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R76QI31205050JFILM, RADIAL, PULSE, DOUBLE META |
4,493 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
BFC247036103CAP FILM 10000PF 5% 250VDC RAD |
10 |
|
Datasheet |
Radial | 10000 pF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
|
B32924C3275K000CAP FILM 2.7UF 10% 630VDC RADIAL |
5 |
|
Datasheet |
Radial | 2.7 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PFR5101J63J11L4BULKCAP FILM 100PF 5% 63VDC RADIAL |
8,982 |
|
Datasheet |
Radial | 100 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
684MMR400KCAP FILM 0.68UF 10% 400VDC RAD |
5,432 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R60IN41005030JCAP FILM 1UF 5% 250VDC RADIAL |
6,215 |
|
Datasheet |
Radial | 1 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
ECQ-E6564JFCAP FILM 0.56UF 5% 630VDC RADIAL |
4,778 |
|
Datasheet |
Radial | 0.56 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
BFC238350183CAP FILM 0.018UF 5% 1.6KVDC RAD |
3,246 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
