Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44UUGT6270M85KCAP FILM 270UF 10% 1.3KVDC RAD |
3 |
|
Datasheet |
Radial, Can | 270 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.827" (148.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT6450M82KCAP FILM 450UF 10% 900VDC RADIAL |
22 |
|
Datasheet |
Radial, Can | 450 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.646" (118.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT6375M81KCAP FILM 375UF 10% 900VDC RADIAL |
9 |
|
Datasheet |
Radial, Can | 375 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.055" (103.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C44PKGR6133RBSJCAP FILM 133UF 5% 1KVDC RADIAL |
6 |
|
Datasheet |
Radial, Can | 133 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.835" (199.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|

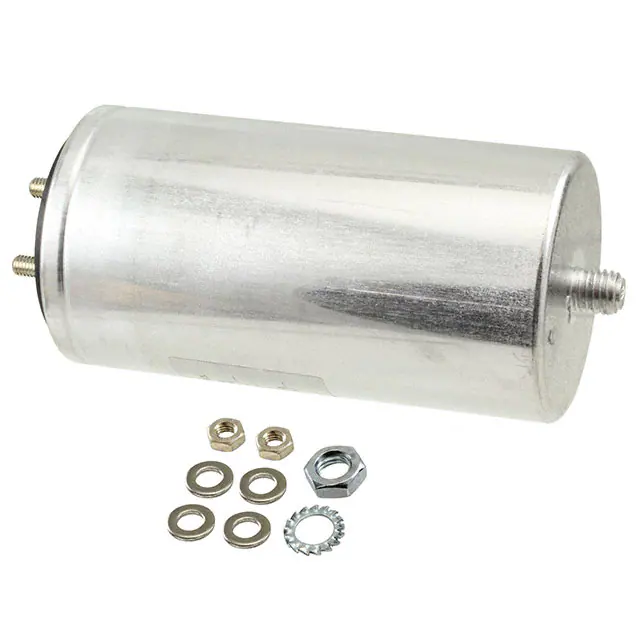

C44AFGP6150ZA0JCAP FILM 150UF 5% 400VDC RADIAL |
12 |
|
Datasheet |
Radial, Can | 150 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.756" Dia (70.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
|
C44PMGR5700RASJCAP FILM 70UF 5% 1.1KVDC RADIAL |
4,542 |
|
Datasheet |
Radial, Can | 70 µF | ±5% | 480V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.866" (149.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44HLGP6100AASJCAP FILM 100UF 5% 700VDC RADIAL |
20 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 3.937" (100.00mm) | Threaded, Male | 0.886" (22.50mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
SFT37T80K391B-FCAP FILM 80UF 10% 370VAC RADIAL |
25 |
|
Datasheet |
Radial, Can | 80 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.620" Dia (66.55mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
C44USGT6230M86KCAP FILM 230UF 10% 1.5KVDC RAD |
9 |
|
Datasheet |
Radial, Can | 230 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6400M85KCAP FILM 400UF 10% 1.1KVDC RAD |
24 |
|
Datasheet |
Radial, Can | 400 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.827" (148.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C44HKGR6150AASJCAP FILM 150UF 5% 1KVDC RADIAL |
15 |
|
Datasheet |
Radial, Can | 150 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.717" (196.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
|
C44UUGT6250M84KCAP FILM 250UF 10% 1.3KVDC RAD |
4 |
|
Datasheet |
Radial, Can | 250 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
B25620B0447K883CAP FILM 440UF 10% 900VDC RADIAL |
2 |
|
Datasheet |
Radial, Can | 440 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 0.8 mOhms | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 3.071" (78.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
MKP1848720454Y5CAP FILM 200UF 5% 450VDC RADIAL |
20 |
|
Datasheet |
Radial - 6 Leads | 200 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 2.756" W (57.50mm x 70.00mm) | 2.362" (60.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
C44USGT6145M82KCAP FILM 145UF 10% 1.5KVDC RAD |
13 |
|
Datasheet |
Radial, Can | 145 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.646" (118.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT6500M83KCAP FILM 500UF 10% 900VDC RADIAL |
10 |
|
Datasheet |
Radial, Can | 500 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.039" (128.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
B32374A6107J000CAP FILM 100UF 5% 1.5KVDC RADIAL |
20 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 600V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.780" Dia (96.00mm) | 7.776" (197.50mm) | Terminal Block | 0.591" (15.00mm) | General Purpose | - | - |
|
|
C44UQGT6460M86KCAP FILM 460UF 10% 1.1KVDC RAD |
17 |
|
Datasheet |
Radial, Can | 460 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UVGT6300M87KCAP FILM 300UF 10% 1.8KVDC RAD |
2 |
|
Datasheet |
Radial, Can | 300 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.709" (272.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6910M31KC44U_M, FILM, METALLIZED POLYPRO |
10 |
|
Datasheet |
Radial, Can | 910 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 0.85 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 5.236" (133.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
