Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44AJFP4500ZA0JCAP FILM 5UF 5% 700VDC RADIAL |
93 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
DCP4H161309FD4JSSDCAP FILM 130UF 5% 500VDC RAD |
36 |
|
Datasheet |
Radial - 4 Leads | 130 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 3.1 mOhms | -55°C ~ 105°C | Through Hole | 2.244" L x 1.378" W (57.00mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MHBS355750KRSDCAP FILM 75UF 10% 575VDC RADIAL |
78 |
|
Datasheet |
Radial - 4 Leads | 75 µF | ±10% | - | 575V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

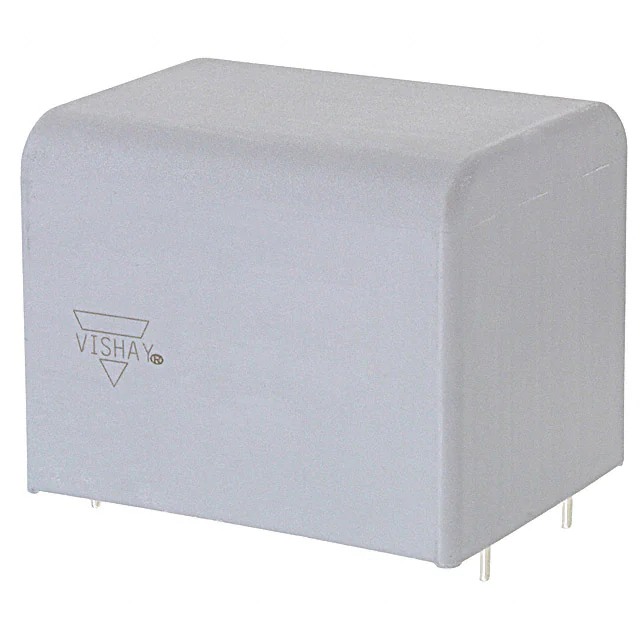

MKP1847630354Y5CAP FILM 30UF 5% 700VDC RADIAL |
6 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
SCD105K102D3Z25-FCAP FILM 1UF 10% 1KVDC SCREW |
15 |
|
Datasheet |
Rectangular Box | 1 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 85°C | Chassis Mount | 1.850" L x 1.142" W (47.00mm x 29.00mm) | 1.051" (26.70mm) | Screw Terminals | 1.000" (25.40mm) | Snubber | - | - |
|
C44AHFP5250ZB0JCAP FILM 25UF 5% 600VDC RADIAL |
100 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
MKP1847C630275Y5MKP 30F 10% 275VAC PITCH 52,5 |
92 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
B32778G0406J000CAP FILM 40UF 1.1KVDC RAD 4 LEAD |
92 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
23FD3730A-FCAP FILM 30UF 10% 370VAC RADIAL |
35 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.125" Dia (53.98mm), Lip | 3.160" (80.26mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
|
B32371A4506J020CAP FILM 50UF 5% 1.05KVDC RADIAL |
90 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 420V | 1050V (1.05kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 3.937" (100.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
23FB4430A-FCAP FILM 30UF 10% 440VAC RADIAL |
19 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.125" Dia (53.98mm), Lip | 4.090" (103.88mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
|
B32371A3306J030CAP FILM 30UF 5% 900VDC RADIAL |
59 |
|
Datasheet |
Radial, Can | 30 µF | ±5% | 330V | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 2.874" (73.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
MKP1847H57048JY5CAP FILM 7UF 5% 1KVDC RADIAL |
45 |
|
Datasheet |
Radial - 4 Leads | 7 µF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.988" (50.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
32FD3710A-FCAP FILM 10UF 10% 370VAC RADIAL |
19 |
|
Datasheet |
Radial, Can | 10 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.156" L x 1.313" W (54.76mm x 33.35mm), Lip | 3.130" (79.50mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
|
C44AJGP5400ZA0JCAP FILM 40UF 5% 700VDC RAD |
83 |
|
Datasheet |
Radial, Can | 40 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
SFA66T10K475B-FCAP FILM 10UF 10% 660VAC RADIAL |
48 |
|
Datasheet |
Radial, Can | 10 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 4.870" (123.70mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
B32375A4106J080CAP FILM 10UF 5% 680V RADIAL |
21 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 480V | 680V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.118" (130.00mm) | Quick Connect, Disconnect | 0.787" (20.00mm) | 3 Phase | - | - |
|
SCD305K122C3Z25-FCAP FILM 3UF 10% 1.2KVDC SCREW |
5,125 |
|
Datasheet |
Rectangular Box | 3 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 85°C | Chassis Mount | 2.476" L x 3.000" W (62.90mm x 76.20mm) | 1.500" (38.10mm) | Screw Terminals | 1.000" (25.40mm) | Snubber | - | - |
|
|
B32374A4506J080CAP FILM 50UF 5% 1.2KVDC RAD |
30 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 480V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 4.311" (109.50mm) | Terminal Block | 0.591" (15.00mm) | General Purpose | - | - |
|
|
B32375A3206J030CAP FILM 20UF 5% 460V RADIAL |
99 |
|
Datasheet |
Radial, Can | 20 µF | ±5% | 330V | 460V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.118" (130.00mm) | Quick Connect, Disconnect | 0.787" (20.00mm) | 3 Phase | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
