Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
940C6W3P3K-FCAP FILM 3.3UF 10% 600VDC AXIAL |
63 |
|
Datasheet |
Axial | 3.3 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 1.063" Dia x 2.126" L (27.00mm x 54.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|

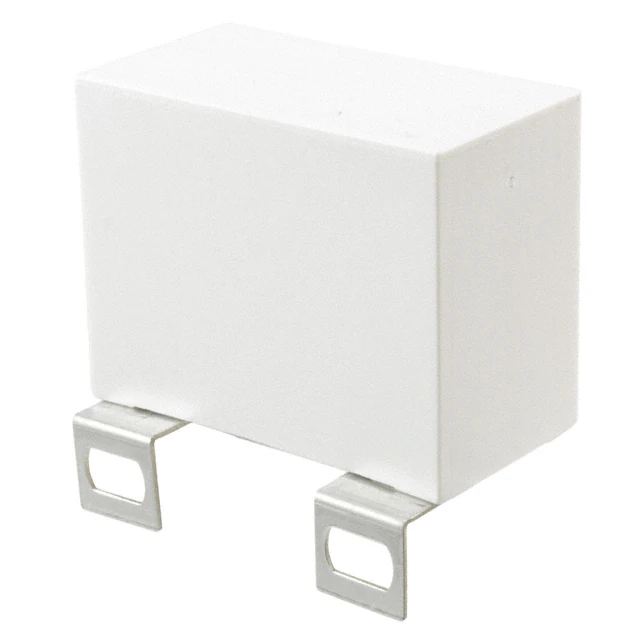

C4BSPBX4200ZAMJCAP FILM 2UF 5% 1.2KVDC SCREW |
84 |
|
Datasheet |
Rectangular Box | 2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
PHC1405250KSCAP FILM 25UF 10% 400VDC AXIAL |
22 |
|
Datasheet |
Axial | 25 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 1.457" Dia x 2.244" L (37.00mm x 57.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
MKP386M510160JT4CAP FILM 1UF 5% 1.6KVDC SCREW |
13 |
|
Datasheet |
Rectangular Box | 1 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 0.866" W (44.00mm x 22.00mm) | 1.496" (38.00mm) | Screw Terminals | - | Snubber | - | Low ESR |
|
Z93S5226NNCAP FILM 26UF 3% 525VAC RADIAL |
22 |
|
Datasheet |
Radial, Can | 26 µF | ±3% | 525V | - | - | - | -40°C ~ 105°C | Chassis Mount | 2.910" L x 1.910" W (73.91mm x 48.51mm) | 4.370" (111.00mm) | Threaded, Male | 0.810" (20.57mm) | General Purpose | - | Long Life |
|
B32656S8225K561CAP FILM 2.2UF 10% 850VDC SCREW |
34 |
|
Datasheet |
Rectangular Box | 2.2 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.102" (28.00mm) | Snubber | AEC-Q200 | Low ESL |
|
C4BTHBX4500ZAFJCAP FILM 5UF 5% 600VDC SCREW |
61 |
|
Datasheet |
Rectangular Box | 5 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4BSPBX4100ZBJJCAP FILM 1UF 5% 1.2KVDC SCREW |
32 |
|
Datasheet |
Rectangular Box | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
EZP-V80506MTSCAP FILM 50UF 10% 800V RADIAL |
100 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.047" (52.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
R76PW433050H3JCAP FILM 3.3UF 5% 630VDC RAD |
47 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 1.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4ATJBU4220A3EJCAP FILM 2.2UF 5% 700VDC RADIAL |
21 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

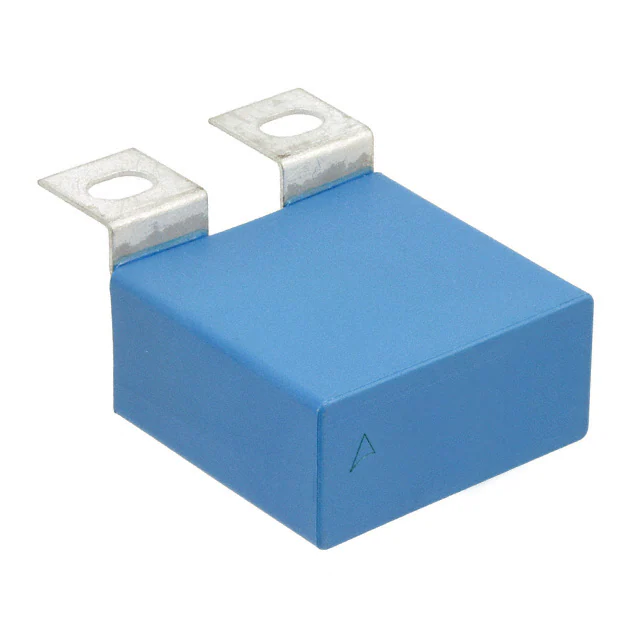

B32656S8225J561CAP FILM 2.2UF 5% 850VDC SCREW |
40 |
|
Datasheet |
Rectangular Box | 2.2 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | Snubber | AEC-Q200 | Low ESL |
|
R75GW533050H0JCAP FILM 33UF 5% 160VDC RADIAL |
35 |
|
Datasheet |
Radial | 33 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AQIBW5550A3NJCAP FILM 55UF 5% 800VDC RADIAL |
9,902 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
942C10W1K-FCAP FILM 1UF 10% 1KVDC AXIAL |
14 |
|
Datasheet |
Axial | 1 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.181" Dia x 2.126" L (30.00mm x 54.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
C4AF9EW5500F3BKFILM CAP AC, 1 UF, 10%, 310 VAC |
53 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
PMB2203560KVRCAP FILM 0.56UF 10% 2KVDC SCREW |
68 |
|
Datasheet |
Rectangular Box | 0.56 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
B32320I0107K000100MFD 1100V PP 50X120 PBT 5 PIN |
12 |
|
Datasheet |
Radial, Can - 5 Lead | 100 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 4.724" (120.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
|
B32320I1107K000100MFD 1300V PP 60X120 PBT 5 PIN |
30 |
|
Datasheet |
Radial, Can - 5 Lead | 100 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Through Hole | 2.362" Dia (60.00mm) | 4.724" (120.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
|
EZP-V80406MTCCAP FILM 40UF 10% 800V RADIAL |
53 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.047" (52.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
