Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Z93S4024PNCAP FILM 24UF 3% 400VAC RADIAL |
92 |
|
Datasheet |
Radial, Can | 24 µF | ±3% | 400V | - | - | - | -40°C ~ 105°C | Chassis Mount | 2.910" L x 1.910" W (73.91mm x 48.51mm) | 3.250" (82.55mm) | Threaded, Male | 0.810" (20.57mm) | General Purpose | - | Long Life |
|
B32776E8206K000CAP FILM 20UF 10% 800VDC RADIAL |
40 |
|
Datasheet |
Radial | 20 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
C878AF35300AA0JCAP FILM 30UF 5% 470VAC RADIAL |
53 |
|
Datasheet |
Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.937" (100.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
SFA37T4K156B-FCAP FILM 4UF 10% 370VAC RADIAL |
62 |
|
Datasheet |
Radial, Can | 4 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
C4ATFBW5100A3FJCAP FILM 10UF 5% 400VDC RADIAL |
75 |
|
Datasheet |
Radial | 10 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
Z93S4824PNCAP FILM 24UF 3% 480VAC RADIAL |
57 |
|
Datasheet |
Radial, Can | 24 µF | ±3% | 480V | - | - | - | -40°C ~ 105°C | Chassis Mount | 2.910" L x 1.910" W (73.91mm x 48.51mm) | 4.000" (101.60mm) | Threaded, Male | 0.810" (20.57mm) | General Purpose | - | Long Life |
|
|
B32656S7684K561CAP FILM 0.68UF 1.25KVDC SCREW |
72 |
|
Datasheet |
Rectangular Box | 0.68 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 1.004" (25.50mm) | Snubber | - | Low ESL |
|
DCP4G054006JD2KSSDCAP FILM 40UF 10% 400VDC RADIAL |
79 |
|
Datasheet |
Radial | 40 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.787" W (31.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32678G4356K000CAP FILM 35UF 10% 450VDC RADIAL |
8 |
|
Datasheet |
Radial | 35 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
C4AQCBW5500A3OJCAP FILM 50UF 5% 650VDC RADIAL |
41 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

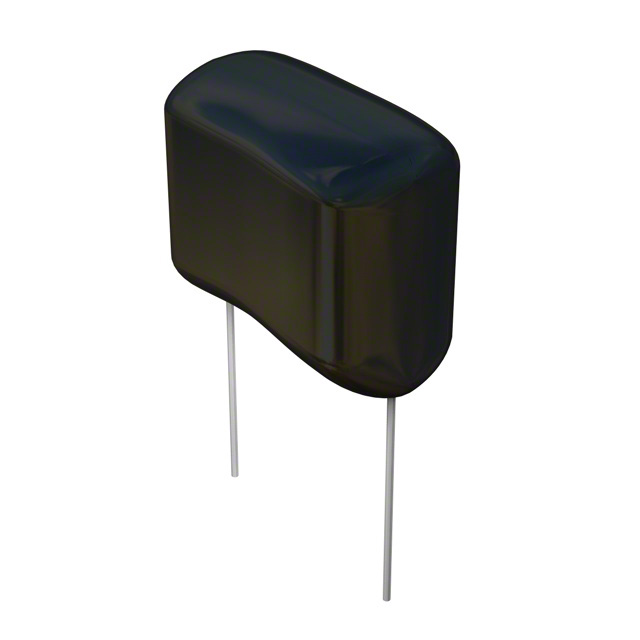

DME2W10K-FCAP FILM 10UF 10% 250VDC RADIAL |
100 |
|
Datasheet |
Radial | 10 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
C4AQNEW5330M3CJCAP FILM 33UF 5% 1KVDC RADIAL |
41 |
|
Datasheet |
Radial - 4 Leads | 33 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.256" (57.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
B32332I6256J080CAP FILM 25UF 5% 450VAC RADIAL |
43 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.780" (96.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
|
C870CF35400AA0JCAP FILM 40UF 5% 470VAC RADIAL |
50 |
|
Datasheet |
Radial, Can | 40 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.937" (100.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
MKP1W036807J00KSSDCAP FILM 0.68UF 10% 3KVDC RADIAL |
35 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 700V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 1.378" W (41.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
EZP-Q33206MTBCAP FILM 20UF 5% 330VAC RADIAL |
50 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
SFA66T6K388B-FCAP FILM 6UF 10% 660VAC RADIAL |
10 |
|
Datasheet |
Radial, Can | 6 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.870" (98.30mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
PMB2203560KSPCAP FILM 0.56UF 10% 2KVDC SCREW |
100 |
|
Datasheet |
Rectangular Box | 0.56 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
B32778Z9706K000CAP FILM 70UF 900VDC RDL 4 LEAD |
90 |
|
Datasheet |
Radial - 4 Leads | 70 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.244" (57.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32686S7474K561CAP FILM 0.47UF 1.25KVDC SCREW |
48 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.102" (28.00mm) | Snubber | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
