Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

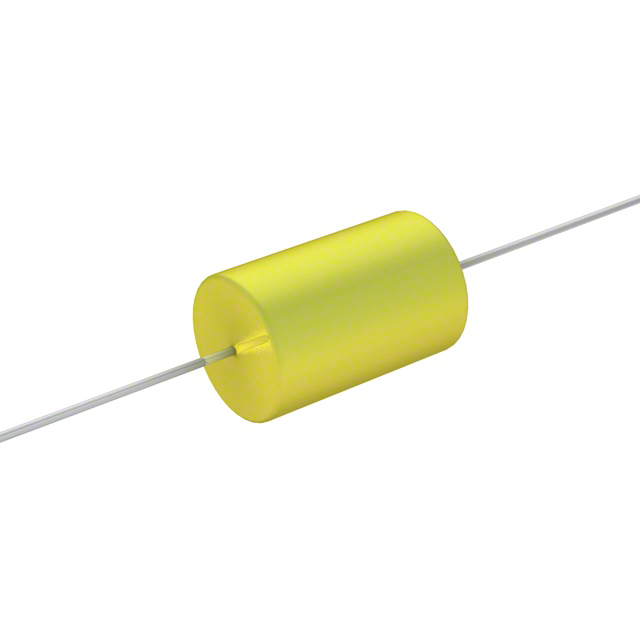

WMC08P1K-FCAP FILM 0.1UF 10% 80VDC AXIAL |
56 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.343" Dia x 0.531" L (8.70mm x 13.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B32774H4106K000CAP FILM 10UF 10% 450VDC RADIAL |
58 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|

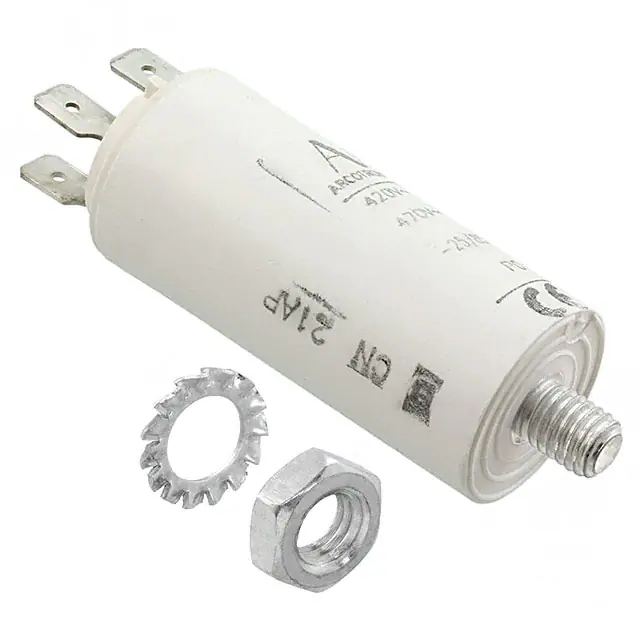

C274AC34300AA0JCAP FILM 3UF 5% 470VAC RADIAL |
54 |
|
Datasheet |
Radial, Can | 3 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
R76UW3100SE30KCAP FILM 0.1UF 10% 2KVDC RADIAL |
55 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R533R456050P0MCAP FILM 5.6UF 20% 630VDC RADIAL |
30 |
|
Datasheet |
Radial | 5.6 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.630" W (32.00mm x 16.00mm) | 1.193" (30.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE844RF6680MR06L2CAP FILM 0.68UF 20% 1KVDC RAD |
26 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
940C30S1K-FCAP FILM 10000PF 10% 3KVDC AXIAL |
89 |
|
Datasheet |
Axial | 10000 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 60 mOhms | -55°C ~ 105°C | Through Hole | 0.453" Dia x 1.339" L (11.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
C274AC34400AA0JCAP FILM 4UF 5% 470VAC RADIAL |
48 |
|
Datasheet |
Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4CAYUB2100AA0JCAP FILM 10000PF 5% 3KVDC AXIAL |
98 |
|
Datasheet |
Axial | 10000 pF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 90.3 mOhms | -40°C ~ 85°C | Through Hole | 0.472" Dia x 1.299" L (12.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
B33331I6305J0803UF 450V AL 30*55 S2 2+2 |
34 |
|
Datasheet |
Radial, Can | 3 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
R75UW333050L3JCAP FILM 0.33UF 5% 2KVDC RADIAL |
50 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.752" (19.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32656S0474K565CAP FILM 0.47UF 10% 1KVDC SCREW |
30 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.551" W (42.00mm x 14.00mm) | 0.984" (25.00mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
PHE426HF7470JR06L2CAP FILM 4.7UF 5% 250VDC RADIAL |
74 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
405PHC250KCAP FILM 4UF 10% 250VDC AXIAL |
83 |
|
Datasheet |
Axial | 4 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.669" Dia x 1.339" L (17.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
R474W422050A1KCAP FILM 2.2UF 10% 1KVDC RADIAL |
47 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
C4AQCBW5200A3FJCAP FILM 20UF 5% 650VDC RADIAL |
66 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
940C10P22K-FCAP FILM 0.22UF 10% 1KVDC AXIAL |
35 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.689" Dia x 1.339" L (17.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
C4GAMUD4220AA1JCAP FILM 2.2UF 5% 850VDC AXIAL |
58 |
|
Datasheet |
Axial | 2.2 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Through Hole | 1.161" Dia x 1.732" L (29.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
PHC1255100KJCAP FILM 10UF 10% 250VDC AXIAL |
52 |
|
Datasheet |
Axial | 10 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Through Hole | 0.866" Dia x 1.260" L (22.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
R46KW510050P0MCAP FILM 10UF 20% 560VDC RADIAL |
98 |
|
Datasheet |
Radial | 10 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
