Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFDKS60K405D032LHCAP FILM 4UF 10% 600VDC RAD |
1,261 |
|
Datasheet |
Radial | 4 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.819" (20.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
MKT1813422254CAP FILM 0.22UF 5% 250VDC AXIAL |
994 |
|
Datasheet |
Axial | 0.22 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
|
R46KR34704001KCAP FILM 0.47UF 10% 560VDC RAD |
398 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKT1813447015CAP FILM 0.47UF 10% 100VDC AXIAL |
258 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.256" Dia x 0.748" L (6.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
|
185822J100RAB-FCAP FILM 8200PF 5% 100VDC RADIAL |
5,000 |
|
Datasheet |
Radial | 8200 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
167103K400A-FCAP FILM 10000PF 10% 400VDC RAD |
2,998 |
|
Datasheet |
Radial | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.138" W (10.50mm x 3.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|

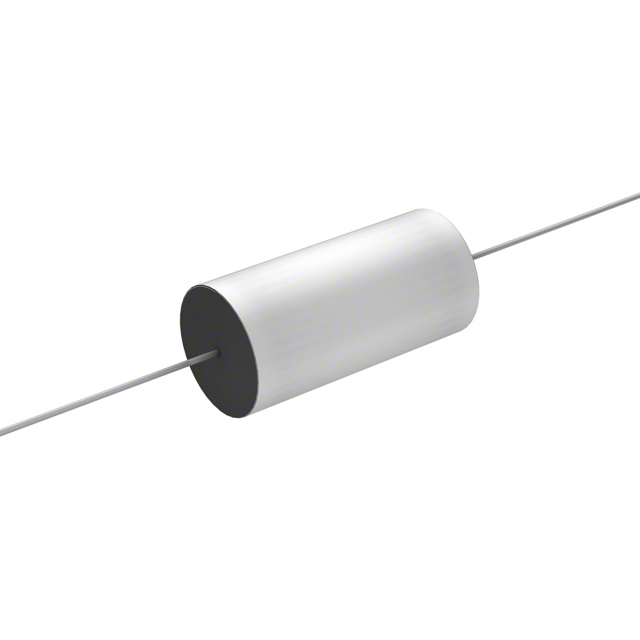

WMF05P68K-FCAP FILM 0.68UF 10% 50VDC AXIAL |
2,742 |
|
Datasheet |
Axial | 0.68 µF | ±10% | - | 50V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.524" Dia x 1.063" L (13.30mm x 27.00mm) | - | PC Pins | - | General Purpose | - | - |
|
FCP1210C823J-G3CAP FILM 0.082UF 5% 16VDC 1210 |
1,690 |
|
Datasheet |
1210 (3225 Metric) | 0.082 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
DME2P27K-FCAP FILM 0.27UF 10% 250VDC RAD |
990 |
|
Datasheet |
Radial | 0.27 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.453" (11.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
R76PR3220SE30JCAP FILM AUTO POLYPROP RAD |
816 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R474R356050A1KV057CAP FILM 0.56UF 10% 1KVDC RADIAL |
556 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
 Series.jpg)
|
ECW-FE2J155JACAP FILM 1.5UF 5% 630VDC RADIAL |
398 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32521C0335K189CAP FILM 3.3UF 10% 63VDC RADIAL |
4,100 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
BFC236646223CAP FILM 0.022UF 5% 250VDC RAD |
2,000 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.532" (13.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
B32673Z5105K000CAP FILM 1UF 10% 520VDC RADIAL |
1,878 |
|
Datasheet |
Radial | 1 µF | ±10% | 277V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | Power Factor Correction (PFC) | - | - |
|
B32653A8472J189CAP FILM 4700PF 5% 2KVDC RADIAL |
1,849 |
|
Datasheet |
Radial | 4700 pF | ±5% | 1000V (1kV) | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | Low ESL |
|
|
MKT1813410405RCAP FILM 0.1UF 10% 400VDC AXIAL |
1,468 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
R474N32200001KCAP FILM 0.22UF 10% 1KVDC RADIAL |
717 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
MXH105K305H20CAP FILM 1UF 10% 305VAC RADIAL |
570 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.819" (20.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|

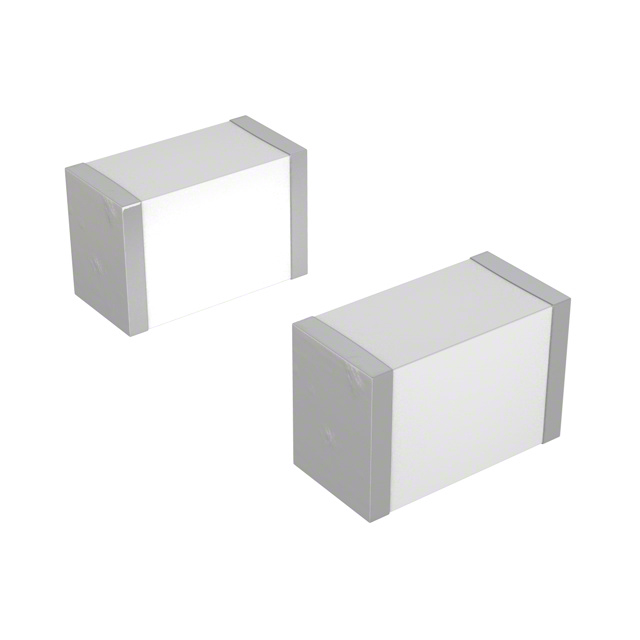

FCN1210A103J-G3CAP FILM 10000PF 5% 100VDC 1210 |
1,909 |
|
Datasheet |
1210 (3225 Metric) | 10000 pF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
