Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFDKA1BK105D032LHCAP FILM 1UF 10% 1100VDC RAD |
274 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 65 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.819" (20.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
R76UN2220SE40JCAP FILM AUTO POLYPROP RAD |
240 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 29 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R46KI347000P3MCAP FILM SAFETY/EMI SUPP RAD |
898 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
MKX2AW34705F00KSSDCAP FILM 0.47UF 10% 305VAC RAD |
818 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32912A5563MCAP FILM 0.056UF 20% 1KVDC RAD |
750 |
|
Datasheet |
Radial | 0.056 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
R46KN4100DQP1MCAP FILM SAFETY/EMI SUPP RAD |
559 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
EFDKA60K205D022LHCAP FILM 2UF 10% 600VDC RAD |
330 |
|
Datasheet |
Radial | 2 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 40 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.740" (18.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F863DS105K310ZV047CAP FILM 1UF 10% 630VDC RADIAL |
241 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC237534681CAP FILM 680PF 5% 1.6KVDC RADIAL |
1,837 |
|
Datasheet |
Radial | 680 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
168223K100A-FCAP FILM 0.022UF 10% 100VDC RAD |
5,000 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
168104K50A-FCAP FILM 0.1UF 10% 50VDC RADIAL |
4,950 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
F861BR684M310ZCAP FILM POLYPROP RAD X2 |
2,534 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32653A2153K000CAP FILM 0.015UF 10% 2KVDC RAD |
2,029 |
|
Datasheet |
Radial | 0.015 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
BFC236645223CAP FILM 0.022UF 10% 250VDC RAD |
1,999 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.532" (13.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
DME4S15K-FCAP FILM 0.015UF 10% 400VDC RAD |
1,000 |
|
Datasheet |
Radial | 0.015 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.295" (7.50mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
R75PN3330AA30KCAP FILM 0.33UF 10% 630VDC RAD |
356 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFX2S30K225D052LHCAP FILM 2.2UF 10% 630VDC RADIAL |
190 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 0.976" (24.80mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
LDEID2680KA5N00CAP FILM SMD PEN |
3,000 |
|
Datasheet |
2220 (5750 Metric) | 0.068 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.110" (2.80mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

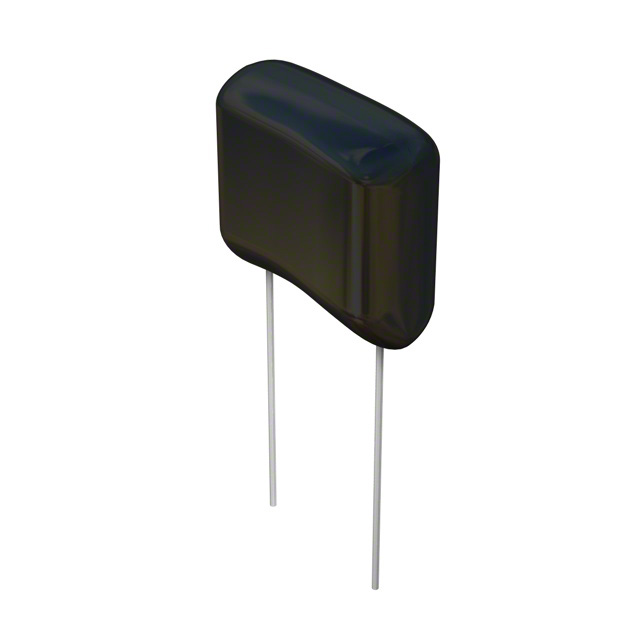

DME10S68K-FCAP FILM 0.068UF 10% 1KVDC RAD |
2,516 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.827" L x 0.335" W (21.00mm x 8.50mm) | 0.768" (19.50mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
B32652A4684K189CAP FILM 0.68UF 10% 400VDC RAD |
2,178 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | Low ESL |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
