Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQOLW5140P38JCAP FILM 14UF 5% 900VDC RADIAL |
144 |
|
Datasheet |
Radial - 4 Leads | 14 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 5.9 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
MKP1848C61280JP2CAP FILM 12UF 5% 800VDC RADIAL |
105 |
|
Datasheet |
Radial | 12 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
B32656T2104K000CAP FILM 0.1UF 10% 2KVDC RADIAL |
1,009 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
EZP-V1B475LTBCAP FILM 4.7UF 10% 1100V RADIAL |
271 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 21.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
R75PW456050H3JCAP FILM 5.6UF 5% 630VDC RADIAL |
199 |
|
Datasheet |
Radial | 5.6 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PSB2103470KHSDCAP FILM 0.47UF 10% 1KVDC RADIAL |
265 |
|
Datasheet |
Radial - 4 Leads | 0.47 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

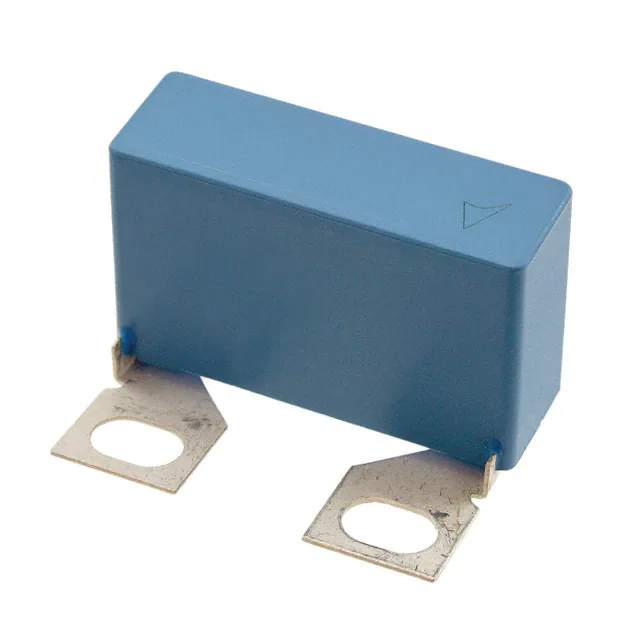

B32656S0474K564CAP FILM 0.47UF 10% 1KVDC SCREW |
264 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.551" W (42.00mm x 14.00mm) | 0.984" (25.00mm) | Screw Terminals | 1.102" (28.00mm) | Snubber | AEC-Q200 | Low ESL |
|
B32676G4156K000CAP FILM 15UF 10% 450VDC RADIAL |
131 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
EZP-V60406MTSCAP FILM 40UF 10% 600V RADIAL |
136 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 8.4 mOhms | -40°C ~ 105°C | Through Hole | 2.244" L x 0.984" W (57.00mm x 25.00mm) | 1.614" (41.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4ATGBW5150A3LJCAP FILM 15UF 5% 450VDC RADIAL |
207 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32776Z8256K000FILM CAP MKP DC FILTERING - 800V |
366 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
EZP-Q38455LTACAP FILM 4.5UF 5% 380VAC RADIAL |
146 |
|
Datasheet |
Radial | 4.5 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 16.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
B32776Z0226K000FILM CAP MKP DC FILTERING - 1000 |
103 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32778Z0256K000CAP FILM 25UF 1KVDC RDL 4 LEAD |
265 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 8.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
PMB2103470KVPCAP FILM 0.47UF 10% 1KVDC SCREW |
200 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.669" W (42.50mm x 17.00mm) | 1.102" (28.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
C4AQQLW4850M36JCAP FILM 8.5UF 5% 1.1KVDC RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 8.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 0.953" (24.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
715P333516MA3CAP FILM 0.033UF 5% 1.6KVDC RAD |
127 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.811" Dia x 1.650" L (20.60mm x 41.90mm) | 1.102" (28.00mm) | PC Pins | 1.406" (35.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
F17725222230CAP FILM 2.2UF 20% 630VDC RADIAL |
140 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC237353125CAP FILM 1.2UF 10% 400VDC RADIAL |
1,961 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
EZP-Q38106LTBCAP FILM 10UF 5% 380VAC RADIAL |
575 |
|
Datasheet |
Radial | 10 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 13.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.594" (40.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
