Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FG70205KCAP FILM 2.0UF 700VDC RADIAL |
200 |
|
Datasheet |
Radial | 2 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
ECW-FE2J225Q5CAP FILM 2.2UF 10% 630VDC RADIAL |
172 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R463R410050H7KCAP FILM 1UF 10% 630VDC RADIAL |
313 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | High Temperature |
|
R60EI42205030KCAP FILM 2.2UF 10% 100VDC RADIAL |
310 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
ECW-H12183JVCAP FILM 0.018UF 5% 1.25KVDC RAD |
245 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.295" W (23.00mm x 7.50mm) | 0.689" (17.50mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
R60EI4220AA30KCAP FILM 2.2UF 10% 100VDC RAD |
1,194 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
MMK15225J63B05L4BULKCAP FILM 2.2UF 5% 63VDC RAD |
795 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R586N256050T0KCAP FILM 600VAC(X1) 0.056 UF 10% |
500 |
|
Datasheet |
Radial | 0.056 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.602" (15.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
ECW-FG70155KCAP FILM 1.5UF 700VDC RADIAL |
265 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
QXK2G684KTPCAP FILM 0.68UF 10% 400VDC RAD |
199 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.004" L x 0.283" W (25.50mm x 7.20mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-F4363HLCAP FILM 0.036UF 3% 400VDC RAD |
896 |
|
Datasheet |
Radial | 0.036 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.224" W (12.50mm x 5.70mm) | 0.386" (9.80mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-U2823JC9CAP FILM 0.082UF 5% 250VDC 2420 |
9,813 |
|
Datasheet |
2420 (6050 Metric) | 0.082 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.134" (3.40mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U2563V16CAP FILM 0.056UF 5% 250VDC 2416 |
2,179 |
|
Datasheet |
2416 (6041 Metric) | 0.056 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.122" (3.10mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PHE448SB4220JR06CAP FILM 2200PF 5% 2KVDC RADIAL |
610 |
|
Datasheet |
Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PHE450SB5220JR06CAP FILM 0.022UF 5% 2KVDC RADIAL |
600 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-U2823V16CAP FILM 0.082UF 5% 250VDC 2420 |
2,421 |
|
Datasheet |
2420 (6050 Metric) | 0.082 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.138" (3.50mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
150102K630BBCAP FILM 1000PF 10% 630VDC AXIAL |
997 |
|
Datasheet |
Axial | 1000 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
ECW-F6124HLCAP FILM 0.12UF 3% 630VDC RADIAL |
249 |
|
Datasheet |
Radial | 0.12 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.327" W (18.00mm x 8.30mm) | 0.559" (14.20mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
160223K400C-FCAP FILM 0.022UF 10% 400VDC RAD |
248 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|

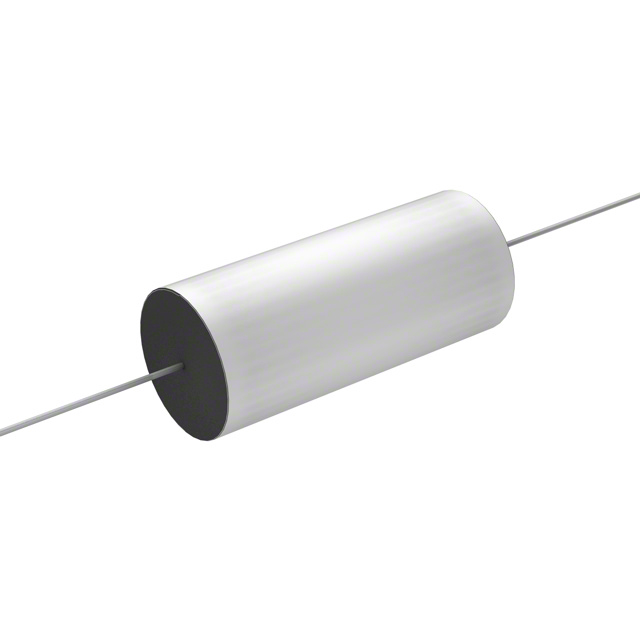

WMF2P47K-FCAP FILM 0.47UF 10% 250VDC AXIAL |
2,820 |
|
Datasheet |
Axial | 0.47 µF | ±10% | - | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.610" Dia x 1.311" L (15.50mm x 33.30mm) | - | PC Pins | - | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
