Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E6153JFCAP FILM 0.015UF 5% 630VDC RAD |
149,041 |
|
Datasheet |
Radial | 0.015 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 0.362" (9.20mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
ECH-U1C101JX5CAP FILM 100PF 5% 16VDC 0603 |
101,026 |
|
Datasheet |
0603 (1608 Metric) | 100 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | Solder Pads | - | General Purpose | - | - |
|
R82EC3470DQ70KCAP FILM 0.47UF 10% 100VDC RAD |
61,559 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.378" (9.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32520C1224K000CAP FILM 0.22UF 10% 100VDC RAD |
57,819 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32529C8152K289CAP FILM 1500PF 10% 630VDC RAD |
12,797 |
|
Datasheet |
Radial | 1500 pF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32921C3473K000CAP FILM 0.047UF 10% 630VDC RAD |
8,491 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
B32529C8472J000CAP FILM 4700PF 5% 630VDC RADIAL |
7,048 |
|
Datasheet |
Radial | 4700 pF | ±5% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.138" W (7.30mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R82EC3680AA70JCAP FILM 0.68UF 5% 100VDC RADIAL |
6,567 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.398" (10.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PHE426DJ5150JR05CAP FILM 0.015UF 5% 100VDC RAD |
6,460 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E4333JFCAP FILM 0.033UF 5% 400VDC RAD |
4,354 |
|
Datasheet |
Radial | 0.033 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.394" (10.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
PHE426DJ4820JR05CAP FILM 8200PF 5% 100VDC RADIAL |
2,897 |
|
Datasheet |
Radial | 8200 pF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
104MSR100KCAP FILM 0.1UF 10% 100VDC RADIAL |
2,008 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" L x 0.217" W (12.50mm x 5.50mm) | 0.335" (8.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
.jpg)
|
223MMR630KCAP FILM 0.022UF 10% 630VDC RAD |
1,970 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
473MKP275KCAP FILM 0.047UF 10% 310VAC RAD |
1,546 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
PHE426DJ5120JR05CAP FILM 0.012UF 5% 100VDC RAD |
1,200 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

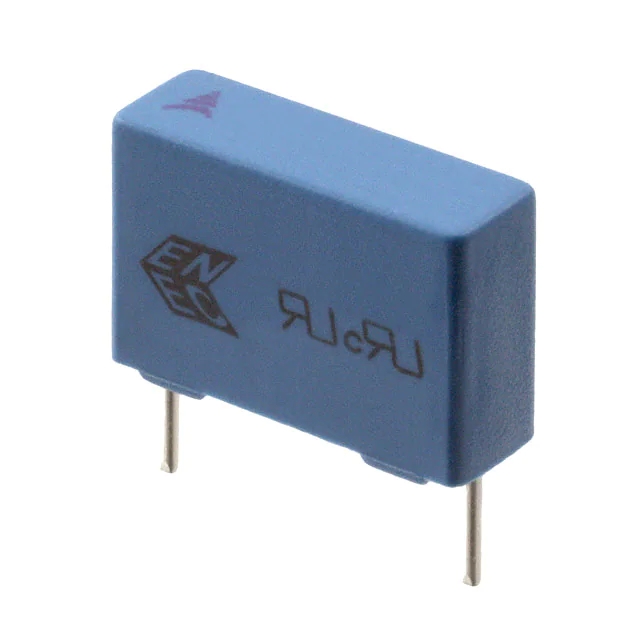

B32922C3154M000CAP FILM 0.15UF 20% 630VDC RAD |
38,342 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KI3100JBM1KCAP FILM 0.1UF 10% 560VDC RADIAL |
27,116 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32671L0562J000CAP FILM 5600PF 5% 1KVDC RADIAL |
23,542 |
|
Datasheet |
Radial | 5600 pF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32921C3103K289CAP FILM 10000PF 10% 630VDC RAD |
22,318 |
|
Datasheet |
Radial | 10000 pF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
MMK5104J100J01L16.5TR18CAP FILM 0.1UF 5% 100VDC RADIAL |
18,821 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
