Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32520C1154J000CAP FILM 0.15UF 5% 100VDC RADIAL |
20,541 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32672Z4104K000CAP FILM 0.1UF 10% 450VDC RADIAL |
15,874 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 220V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
R71MF31004030KCAP FILM 0.1UF 10% 420VDC RADIAL |
7,026 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 220V | 420V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|

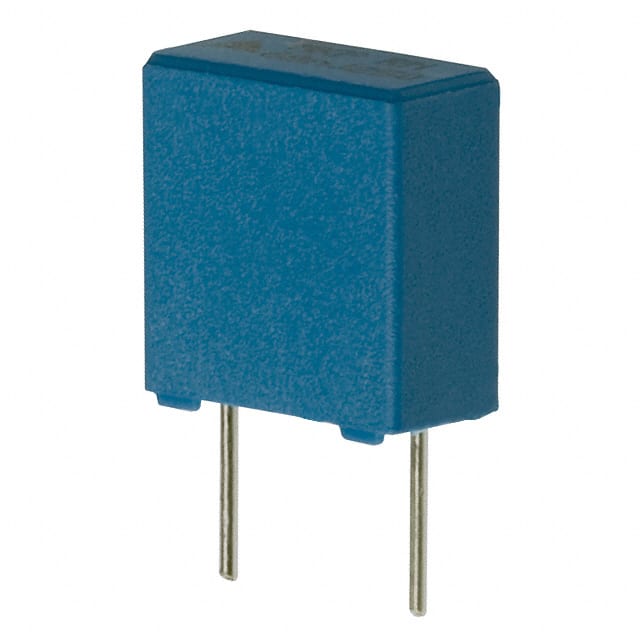

B32620J0102J000CAP FILM 1000PF 5% 1KVDC RADIAL |
5,030 |
|
Datasheet |
Radial | 1000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
890324023028CAP FILM 0.22UF 10% 275VAC RAD |
2,758 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.315" W (13.00mm x 8.00mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2104JBCAP FILM 0.1UF 5% 250VDC RADIAL |
2,674 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311" L x 0.232" W (7.90mm x 5.90mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
MMK5102J50J01L4BULKCAP FILM 1000PF 5% 50VDC RADIAL |
1,391 |
|
Datasheet |
Radial | 1000 pF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
890324025027CAP FILM 0.22UF 10% 275VAC RAD |
1,022 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32922X2224M000FILM CAP MKP X2 - COMPACT, 0.22U |
22,710 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 275V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
.jpg)
|
334MMR250KCAP FILM 0.33UF 10% 250VDC RAD |
19,827 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R82EC3330AA70KCAP FILM 0.33UF 10% 100VDC RAD |
17,217 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.378" (9.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32529C1474J189CAP FILM 0.47UF 5% 100VDC RADIAL |
11,972 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R474F147050A1KCAP FILM 4700PF 10% 1KVDC RADIAL |
10,513 |
|
Datasheet |
Radial | 4700 pF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
BFC237076104CAP FILM 0.1UF 5% 63VDC RADIAL |
9,844 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
ECQ-E2224KFCAP FILM 0.22UF 10% 250VDC RAD |
6,680 |
|
Datasheet |
Radial | 0.22 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.453" (11.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
ECQ-E6103KFCAP FILM 10000PF 10% 630VDC RAD |
6,455 |
|
Datasheet |
Radial | 10000 pF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.335" (8.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
PHE426MJ4220JR05CAP FILM 2200PF 5% 630VDC RADIAL |
6,424 |
|
Datasheet |
Radial | 2200 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R82IC3100SH55JCAP FILM 0.1UF 5% 250VDC RADIAL |
5,513 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.398" (10.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
ECQ-E2223JBCAP FILM 0.022UF 5% 250VDC RAD |
3,316 |
|
Datasheet |
Radial | 0.022 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.323" (8.20mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECQ-E4473JFCAP FILM 0.047UF 5% 400VDC RAD |
3,147 |
|
Datasheet |
Radial | 0.047 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 0.366" (9.30mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
