Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
150104K630FECAP FILM 0.1UF 10% 630VDC AXIAL |
861 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335" Dia x 1.102" L (8.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | - |
|
B32654A2473J000CAP FILM 0.047UF 5% 2KVDC RADIAL |
383 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
R73UR2220SE00JCAP FILM 0.022UF 5% 2KVDC RADIAL |
513 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
890324027025CAP FILM 3.3UF 10% 275VAC RADIAL |
122 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.610" W (31.00mm x 15.50mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

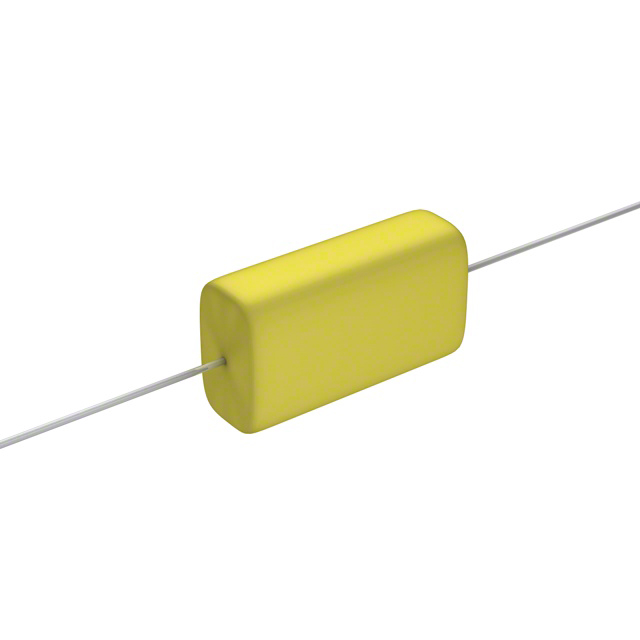

MMP6P1K-FCAP FILM 0.1UF 10% 630VDC AXIAL |
959 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" W, 0.315" T x 0.906" L (13.00mm, 8.00mm x 23.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
160105J100H-FCAP FILM 1UF 5% 100VDC RADIAL |
912 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
PME271YE6100MR30CAP FILM 0.1UF 20% 1KVDC RADIAL |
325 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.201" L x 0.476" W (30.50mm x 12.10mm) | 0.748" (19.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | Y2 | - |
|
F17724152160CAP FILM 0.15UF 10% 630VDC RAD |
1,156 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

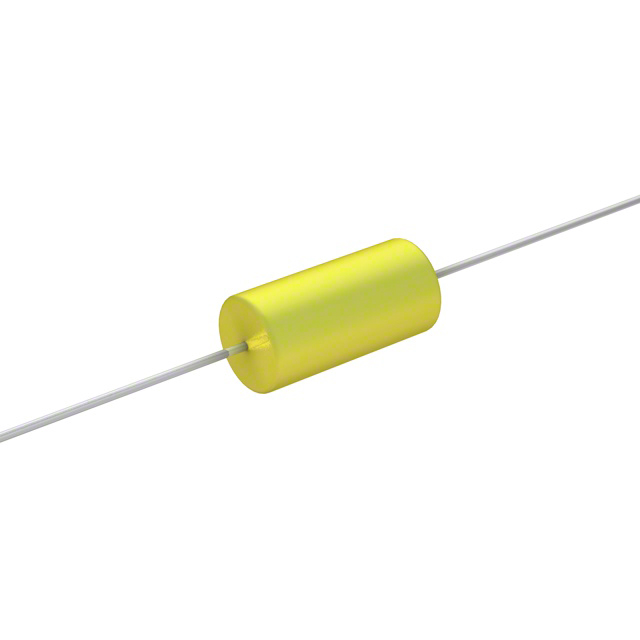

WMC08S33K-FCAP FILM 0.033UF 10% 80VDC AXIAL |
1,008 |
|
Datasheet |
Axial | 0.033 µF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.228" Dia x 0.469" L (5.80mm x 11.90mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
ECW-F4245JLCAP FILM 2.4UF 5% 400VDC RADIAL |
535 |
|
Datasheet |
Radial | 2.4 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.689" W (28.00mm x 17.50mm) | 1.035" (26.30mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
C4AQCBU4700A1YJCAP FILM 7UF 5% 650VDC RADIAL |
288 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.110" (28.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
_06x00KSSD.jpg)
|
MKP4G042206F00KSSDCAP FILM 2.2UF 10% 400VDC RAD |
3,129 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
C878BF34350SA4JCAP FILM 3.5UF 5% 470VAC RADIAL |
281 |
|
Datasheet |
Radial, Can | 3.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
715P15256JD3CAP FILM 1500PF 5% 600VDC RADIAL |
1,948 |
|
Datasheet |
Radial | 1500 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.319" Dia x 0.701" L (8.10mm x 17.80mm) | 0.610" (15.50mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
890493427007CSCAP FILM 0.47UF 10% 1KVDC RADIAL |
501 |
|
Datasheet |
Radial | 0.47 µF | ±10% | - | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PPA1853220KJCAP FILM 0.22UF 10% 850VDC AXIAL |
321 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 85°C | Through Hole | 0.512" Dia x 1.260" L (13.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
SMC10.2474J50A31TR16CAP FILM 0.47UF 5% 50VDC SMD |
731 |
|
Datasheet |
Nonstandard | 0.47 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
R75RR327050H4JCAP FILM 0.27UF 5% 1.25KVDC RAD |
511 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
MKP1848C55050JK2CAP FILM 5UF 5% 500VDC RADIAL |
426 |
|
Datasheet |
Radial | 5 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
R586R339050T0KCAP FILM 600VAC(X1) 0.39 UF 10% |
132 |
|
Datasheet |
Radial | 0.39 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.114" (28.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
