Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PME261JC5680KR30CAP FILM 0.068UF 10% 1KVDC RAD |
235 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | General Purpose | - | - |
|
BFC233840683CAP FILM 0.068UF 20% 800VDC RAD |
4,910 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R60DN5100AA30JCAP FILM 10UF 5% 63VDC RADIAL |
390 |
|
Datasheet |
Radial | 10 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
WMC08S22K-FCAP FILM 0.022UF 10% 80VDC AXIAL |
358 |
|
Datasheet |
Axial | 0.022 µF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185" Dia x 0.531" L (4.70mm x 13.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
BFC237547181CAP FILM 180PF 3.5% 2KVDC RADIAL |
806 |
|
Datasheet |
Radial | 180 pF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
KP1830222251CAP FILM 2200PF 1% 250VDC RADIAL |
1,579 |
|
Datasheet |
Radial | 2200 pF | ±1% | 160V | 250V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FKP1O126807B00JSSDCAP FILM 0.068UF 5% 1KVDC RAD |
598 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.433" W (41.50mm x 11.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FCP2416H224G-D4CAP FILM 0.22UF 2% 50VDC 2416 |
8,789 |
|
Datasheet |
2416 (6041 Metric) | 0.22 µF | ±2% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.110" (2.80mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
PHE450SF5470JR06L2CAP FILM 0.047UF 5% 2KVDC RADIAL |
824 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
C4AQQBU4270A1XJCAP FILM 2.7UF 5% 1.1KVDC RADIAL |
645 |
|
Datasheet |
Radial | 2.7 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 15.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R463R433050H7KCAP FILM 3.3UF 10% 630VDC RADIAL |
328 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | High Temperature |
|
BFC233926474CAP FILM 0.47UF 20% 630VDC RAD |
1,693 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

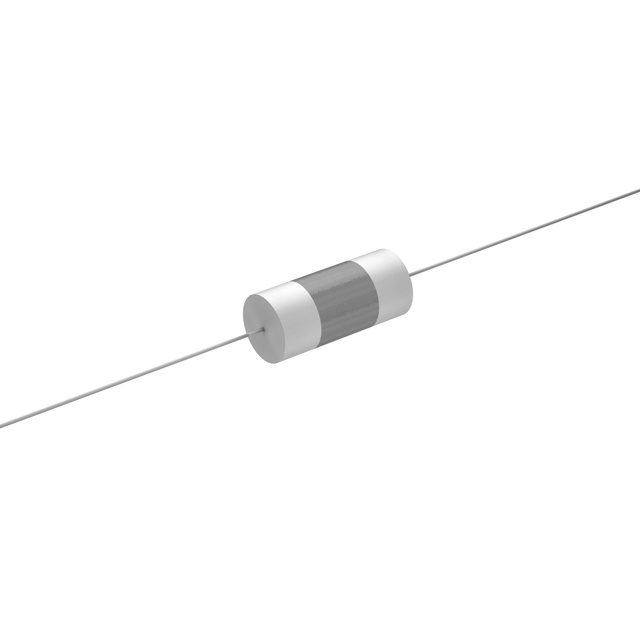

150155J250MECAP FILM 1.5UF 5% 250VDC AXIAL |
1,616 |
|
Datasheet |
Axial | 1.5 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" Dia x 1.102" L (12.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | - |
|
R73TR2470SE00JCAP FILM 0.047UF 5% 1.6KVDC RAD |
459 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-FG1B335JACAP FILM 3.3UF 5% 1.1KVDC RAD |
294 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
PHE450MD6220JR06L2CAP FILM 0.22UF 5% 630VDC RADIAL |
266 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
B32776Z9156K000FILM CAP MKP DC FILTERING - 900V |
258 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 9.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
MKY22W34706F00KSSDCAP FILM 0.47UF 10% 300VAC RAD |
187 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
B32654A0684J000CAP FILM 0.68UF 5% 1KVDC RADIAL |
3,475 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32654A4225J000CAP FILM 2.2UF 5% 400VDC RADIAL |
1,163 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
