Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R474N333050A1KV057CAP FILM 0.33UF 10% 1KVDC RADIAL |
393 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
150103J400BBCAP FILM 10000PF 5% 400VDC AXIAL |
353 |
|
Datasheet |
Axial | 10000 pF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
168102K100A-FCAP FILM 1000PF 10% 100VDC RAD |
6,909 |
|
Datasheet |
Radial | 1000 pF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
B32933A3684K000CAP FILM 0.68UF 10% 305VAC RAD |
4,026 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
B32522C3225K000CAP FILM 2.2UF 10% 250V RADIAL |
1,901 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32529D5335K289CAP FILM 3.3UF 10% 50VDC RADIAL |
1,849 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 32V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
BFC237510911CAP FILM 910PF 5% 630VDC RADIAL |
1,808 |
|
Datasheet |
Radial | 910 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.571" L x 0.217" W (14.50mm x 5.50mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237545471CAP FILM 470PF 3.5% 2KVDC RADIAL |
1,578 |
|
Datasheet |
Radial | 470 pF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
ECW-H6104HCCCAP FILM 0.1UF 3% 630VDC RADIAL |
1,055 |
|
Datasheet |
Radial | 0.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.339" W (20.70mm x 8.60mm) | 0.591" (15.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
|
B32032A4683K000CAP FILM 0.068UF 400VDC RAD |
1,045 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|

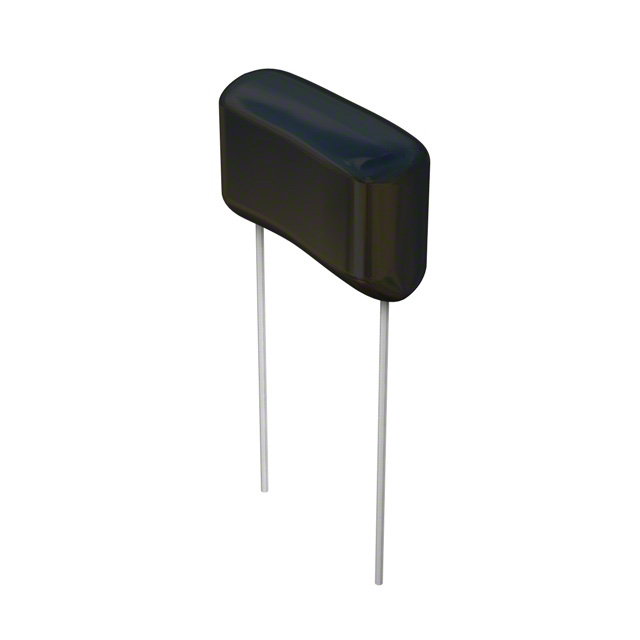

DME2P68K-FCAP FILM 0.68UF 10% 250VDC RAD |
674 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

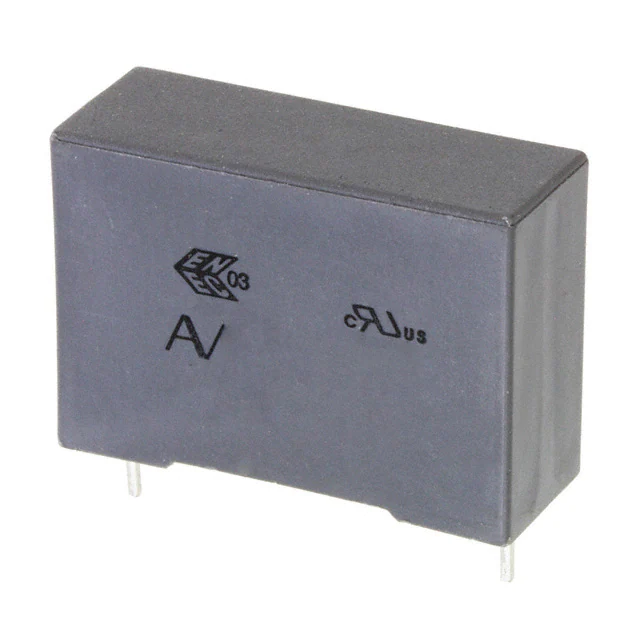

R49AN34700001MCAP FILM 0.47UF 20% 800VDC RAD |
538 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
ECW-FG2J105P1CAP FILM 1UF 5% 630VDC RADIAL |
524 |
|
Datasheet |
Radial | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.413" W (27.00mm x 10.50mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
FKP1O124706B00KSSDCAP FILM 0.047UF 10% 1KVDC RAD |
1,724 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F871DO474M330ZCAP FILM 0.47UF 20% 330VAC RAD |
1,168 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC237241563CAP FILM 0.056UF 10% 250VDC RAD |
4,641 |
|
Datasheet |
Radial | 0.056 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
F861DJ105M310ZCAP FILM 1UF 20% 630VDC RADIAL |
1,827 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE844RD6100MR30L2CAP FILM 0.1UF 20% 1KVDC RADIAL |
1,758 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
PHE844RD6100MR06L2CAP FILM 0.1UF 20% 1KVDC RADIAL |
1,756 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
 Series.jpg)
|
ECW-FE2W475KCAP FILM 4.7UF 10% 450VDC RADIAL |
1,291 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
