Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32923P3155K000FILM CAP MKP X2 - 125C, 1.5UF 10 |
1,022 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
160104K250D-FCAP FILM 0.1UF 10% 250VDC RADIAL |
643 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|

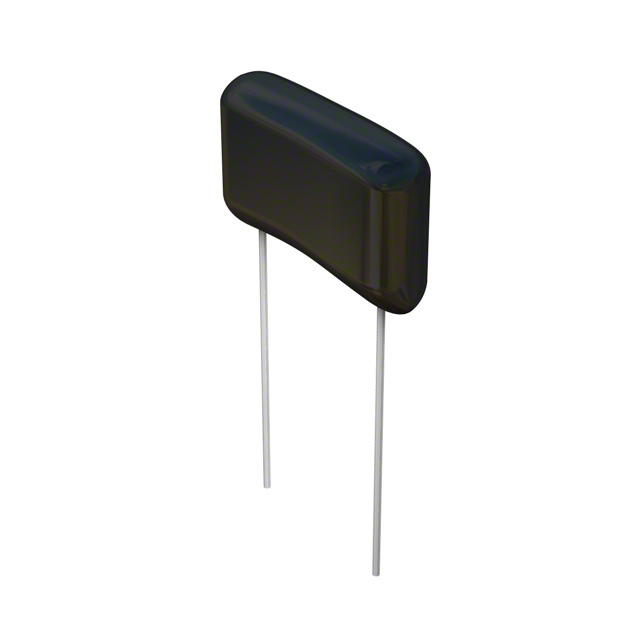

DME10S47K-FCAP FILM 0.047UF 10% 1KVDC RAD |
484 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.827" L x 0.295" W (21.00mm x 7.50mm) | 0.669" (17.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
ECW-F6393JLCAP FILM 0.039UF 5% 630VDC RAD |
270 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.299" W (13.00mm x 7.60mm) | 0.469" (11.90mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
F862DU125K310ZV054CAP FILM 1.2UF 10% 630VDC RADIAL |
178 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KI347040P3MCAP FILM 0.47UF 20% 560VDC RAD |
35,330 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-F4683JLCAP FILM 0.068UF 5% 400VDC RAD |
5,779 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.449" (11.40mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R82CC4220AA70JCAP FILM 2.2UF 5% 50VDC RADIAL |
3,877 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32924C3684M000CAP FILM 0.68UF 20% 630VDC RAD |
2,395 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R533N347050P0KCAP FILM 0.47UF 10% 630VDC RAD |
1,882 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.642" (16.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R76UN1220SE00JCAP FILM 2200PF 5% 2KVDC RADIAL |
1,234 |
|
Datasheet |
Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KR368000M1KCAP FILM 0.68UF 10% 560VDC RAD |
779 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE840MD6330MD17R06L2CAP FILM 0.33UF 20% 760VDC RAD |
538 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC233921474CAP FILM 0.47UF 20% 630VDC RAD |
411 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R60GI4100AA30JCAP FILM 1UF 5% 160VDC RADIAL |
355 |
|
Datasheet |
Radial | 1 µF | ±5% | 90V | 160V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
ECW-F4913JLCAP FILM 0.091UF 5% 400VDC RAD |
161 |
|
Datasheet |
Radial | 0.091 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.307" W (13.00mm x 7.80mm) | 0.480" (12.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
F340Y234730MFM2B0CAP FILM 0.047UF 20% 1KVDC RAD |
2,584 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
|
BFC233910224CAP FILM 0.22UF 10% 630VDC RAD |
1,427 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R523N415050P1MCAP FILM 1.5UF 20% 630VDC RADIAL |
1,056 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200, X2 | - |
|
R463N415050H7KCAP FILM 1.5UF 10% 630VDC RADIAL |
749 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | High Temperature |
