Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E1155JFCAP FILM 1.5UF 5% 100VDC RADIAL |
480 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.567" (14.40mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
FKP1G024705D00KSSDCAP FILM 0.047UF 10% 400VDC RAD |
280 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R71VN41004030KCAP FILM 1UF 10% 520VDC RADIAL |
272 |
|
Datasheet |
Radial | 1 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
ECW-F6153JLCAP FILM 0.015UF 5% 630VDC RAD |
176 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.232" W (12.50mm x 5.90mm) | 0.402" (10.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
DME10S1K-FCAP FILM 10000PF 10% 1KVDC RAD |
9,893 |
|
Datasheet |
Radial | 10000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.610" L x 0.236" W (15.50mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|
B32520C0225J000CAP FILM 2.2UF 5% 63VDC RADIAL |
7,998 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32924C3155K000CAP FILM 1.5UF 10% 630VDC RADIAL |
3,587 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-U1C124JC9CAP FILM 0.12UF 5% 16VDC 1913 |
1,620 |
|
Datasheet |
1913 (4833 Metric) | 0.12 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
BFC236845474CAP FILM 0.47UF 10% 250VDC RAD |
826 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.217" W (26.00mm x 5.50mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
ECW-H6124HCCAP FILM 0.12UF 3% 630VDC RADIAL |
797 |
|
Datasheet |
Radial | 0.12 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.370" W (20.70mm x 9.40mm) | 0.622" (15.80mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
R79GC3220Z340JCAP FILM 0.22UF 5% 160VDC RADIAL |
332 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 70V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|

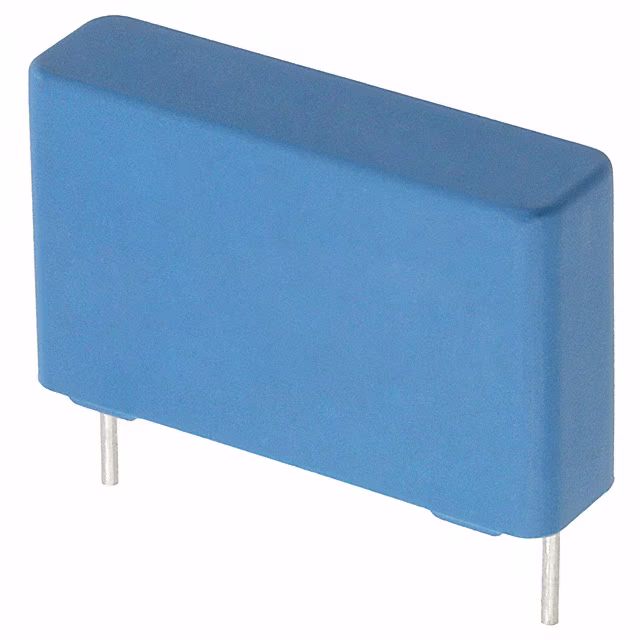

B32023A3683M000CAP FILM 0.068UF 20% 1.5KVDC RAD |
23,453 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
SMR5224J63J03L16.5CBULKCAP FILM 0.22UF 5% 63VDC RADIAL |
7,783 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
|
ECW-U1683JC9CAP FILM 0.068UF 5% 100VDC 1913 |
4,318 |
|
Datasheet |
1913 (4833 Metric) | 0.068 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U1823JC9CAP FILM 0.082UF 5% 100VDC 1913 |
3,349 |
|
Datasheet |
1913 (4833 Metric) | 0.082 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
B32642B0683JCAP FILM 0.068UF 5% 1KVDC RADIAL |
1,571 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
FKP1U016805H00KSSDCAP FILM 6800PF 10% 2KVDC RAD |
940 |
|
Datasheet |
Radial | 6800 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E1395JFCAP FILM 3.9UF 5% 100VDC RADIAL |
750 |
|
Datasheet |
Radial | 3.9 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.685" (17.40mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R76QN312050H3JCAP FILM 0.12UF 5% 1KVDC RAD |
750 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 21 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60PR34705040JCAP FILM 0.47UF 5% 630VDC RADIAL |
3,650 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
