Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC233620104CAP FILM 0.1UF 20% 630VDC RADIAL |
455 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-HC3F822JDCAP FILM 8200PF 5% 3KVDC RADIAL |
411 |
|
Datasheet |
Radial | 8200 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.295" W (25.80mm x 7.50mm) | 0.602" (15.30mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
PHE850ED5680MD17R06L2CAP FILM 0.068UF 20% 1250VDC RAD |
404 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
QXP2J333KRPTCAP FILM 0.033UF 10% 630VDC RAD |
324 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.630" L x 0.295" W (16.00mm x 7.50mm) | 0.500" (12.70mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
B32683A1103K000CAP FILM 10000PF 10% 1.6KVDC RAD |
157 |
|
Datasheet |
Radial | 10000 pF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
QXP2E334KRPTCAP FILM 0.33UF 10% 250VDC RAD |
156 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.827" L x 0.335" W (21.00mm x 8.50mm) | 0.555" (14.10mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
BFC237012474CAP FILM 0.47UF 5% 63VDC RADIAL |
8,905 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
B32652A4474J189CAP FILM 0.47UF 5% 400VDC RADIAL |
4,806 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
FKP1U012205D00JSSDCAP FILM 2200PF 5% 2KVDC RAD |
1,701 |
|
Datasheet |
Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
105MSR100KCAP FILM 1UF 10% 100VDC RADIAL |
1,571 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
F339X141033MFP2B0CAP FILM 0.1UF 20% 800VDC RADIAL |
1,487 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
F862BS394K310ALR0LCAP FILM 0.39UF 10% 630VDC RAD |
1,385 |
|
Datasheet |
Radial | 0.39 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KI333040H2MCAP FILM 0.33UF 20% 560VDC RAD |
1,275 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAF105S1CAP FILM 1UF 20% 275VAC RAD |
563 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
 Series.jpg)
|
ECW-FE2W335JCAP FILM 3.3UF 5% 450VDC RADIAL |
487 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R60GI41004030KCAP FILM 1UF 10% 160VDC RADIAL |
424 |
|
Datasheet |
Radial | 1 µF | ±10% | 90V | 160V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R75PN347050H3JCAP FILM 0.47UF 5% 630VDC RADIAL |
307 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 8.5 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32672P5155J000CAP FILM 1.5UF 5% 520VDC RADIAL |
2,872 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; Power Factor Correction (PFC) | AEC-Q200 | - |
|
|
B32022A3473M003CAP FILM 0.047UF 300VAC RAD |
1,817 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|

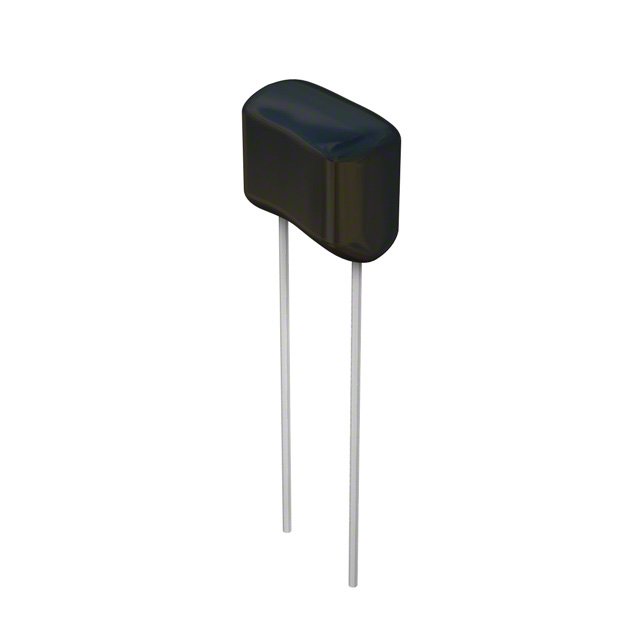

DME2P1K-FCAP FILM 0.1UF 10% 250VDC RADIAL |
1,354 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.228" W (10.30mm x 5.80mm) | 0.406" (10.30mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
