Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFR5331J630J11L4BULKCAP FILM 330PF 5% 630VDC RADIAL |
2,666 |
|
Datasheet |
Radial | 330 pF | ±5% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
PFR5331J63J11L4BULKCAP FILM 330PF 5% 63VDC RADIAL |
2,229 |
|
Datasheet |
Radial | 330 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PHE450RB5150JR06CAP FILM 0.015UF 5% 1.6KVDC RAD |
2,203 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
PFR5102J250J11L4BULKCAP FILM 1000PF 5% 250VDC RADIAL |
1,955 |
|
Datasheet |
Radial | 1000 pF | ±5% | 160V | 250V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R60EI4100AA30JCAP FILM 1UF 5% 100VDC RADIAL |
1,655 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
LDBAA2220JC5N0CAP FILM 0.022UF 5% 16VDC 1206 |
1,433 |
|
Datasheet |
1206 (3216 Metric) | 0.022 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
R60DF4330506AKCAP FILM 3.3UF 10% 63VDC RADIAL |
943 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
PFR5331J100J11L4BULKCAP FILM 330PF 5% 100VDC RADIAL |
882 |
|
Datasheet |
Radial | 330 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
PFR5221H100J11L4BULKCAP FILM 220PF 2.5% 100VDC RAD |
638 |
|
Datasheet |
Radial | 220 pF | ±2.5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PFR5152J63J11L4BULKCAP FILM 1500PF 5% 63VDC RADIAL |
558 |
|
Datasheet |
Radial | 1500 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

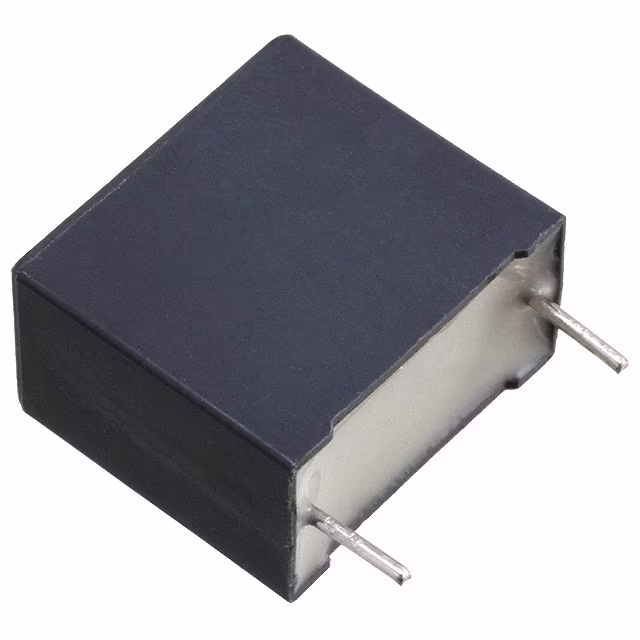

R49AI322000B2MCAP FILM 0.22UF 20% 800VDC RAD |
380 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.630" (16.00mm) | EMI, RFI Suppression | X1 | - |
|
R76UN256050H4JCAP FILM 0.056UF 5% 2KVDC RAD |
247 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 45 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
PFR5102J63J11L4BULKCAP FILM 1000PF 5% 63VDC RADIAL |
188 |
|
Datasheet |
Radial | 1000 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KN347050N0KCAP FILM 0.47UF 10% 560VDC RAD |
9,430 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1H223GB5CAP FILM 0.022UF 2% 50VDC 1210 |
3,864 |
|
Datasheet |
1210 (3225 Metric) | 0.022 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
LDECA1100JA0N00CAP FILM 1000PF 5% 50VDC 1206 |
3,370 |
|
Datasheet |
1206 (3216 Metric) | 1000 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
.jpg)
|
ECH-U1H823JX9CAP FILM 0.082UF 5% 50VDC 1913 |
1,270 |
|
Datasheet |
1913 (4833 Metric) | 0.082 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
PME271M515MR30CAP FILM 0.015UF 20% 630VDC RAD |
1,207 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
R46KN347000N0KCAP FILM 0.47UF 10% 560VDC RAD |
647 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

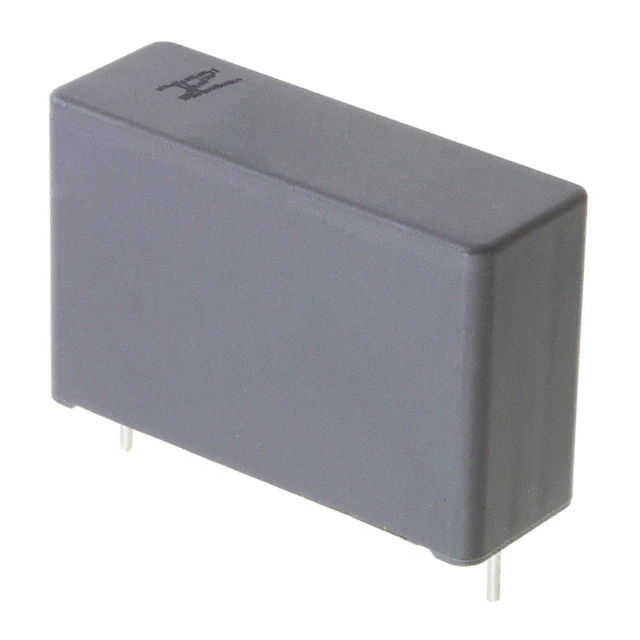

R463R410000M1MCAP FILM 1UF 20% 630VDC RADIAL |
468 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
