Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32521C3334K000CAP FILM 0.33UF 10% 250VDC RAD |
1,769 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R46KF3100DQM1MCAP FILM 0.1UF 20% 560VDC RADIAL |
1,692 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
MMK10103K630A01L4BULKCAP FILM 10000PF 10% 630VDC RAD |
1,514 |
|
Datasheet |
Radial | 10000 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R66DD3470AA6AJCAP FILM 0.47UF 5% 63VDC RADIAL |
1,500 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
ECQ-UAAF104S1CAP FILM 0.1UF 20% 275VAC RAD |
1,289 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
B32620A6682J000CAP FILM 6800PF 5% 630VDC RADIAL |
1,173 |
|
Datasheet |
Radial | 6800 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
R75PF2220AA30JCAP FILM 0.022UF 5% 630VDC RAD |
1,062 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE450PK3470JR05CAP FILM 470PF 5% 1KVDC RADIAL |
1,008 |
|
Datasheet |
Radial | 470 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
R46KF233000M1KCAP FILM 0.033UF 10% 560VDC RAD |
13,681 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
 H1.jpg)
|

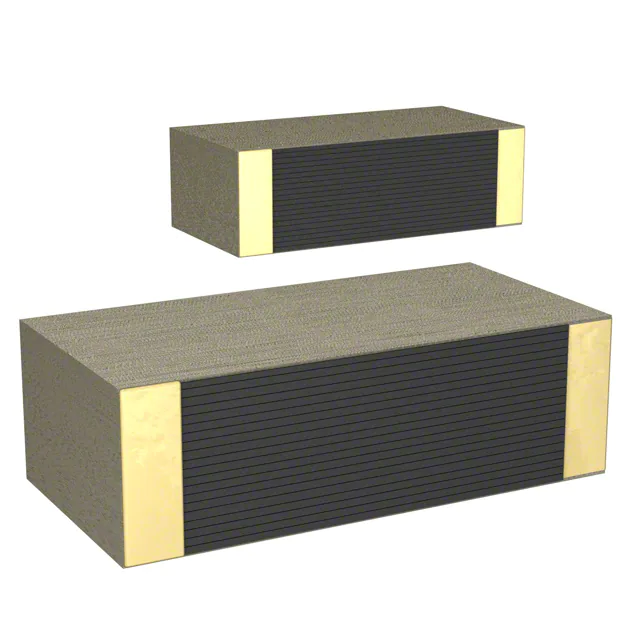

ECH-U1C123JB5CAP FILM 0.012UF 5% 16VDC 1206 |
5,690 |
|
Datasheet |
1206 (3216 Metric) | 0.012 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
B32021A3102M289CAP FILM 1000PF 20% 1.5KVDC RAD |
4,932 |
|
Datasheet |
Radial | 1000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
FKP4J021004B00MSSDCAP FILM 10000PF 20% 630VDC RAD |
4,107 |
|
Datasheet |
Radial | 10000 pF | ±20% | 350V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32672L8822K000CAP FILM 8200PF 10% 2KVDC RADIAL |
3,794 |
|
Datasheet |
Radial | 8200 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F861KJ333M310ACAP FILM 0.033UF 20% 630VDC RAD |
3,790 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression | X2 | - |
|
R76QI222050H4JCAP FILM 0.022UF 5% 1KVDC RAD |
2,700 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 87 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R413F1330CK00MCAP FILM 3300PF 20% 1KVDC RADIAL |
2,476 |
|
Datasheet |
Radial | 3300 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R474F14705001KCAP FILM 4700PF 10% 1KVDC RADIAL |
2,171 |
|
Datasheet |
Radial | 4700 pF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECQ-UBAF472MCAP FILM 0.0047UF 20% 300VAC RAD |
1,974 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1, Y2 | - |
|
R747I1470AA00JCAP FILM 4700PF 5% 2KVDC RADIAL |
1,958 |
|
Datasheet |
Radial | 4700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
PHE426KJ4820JR05CAP FILM 8200PF 5% 400VDC RADIAL |
1,532 |
|
Datasheet |
Radial | 8200 pF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
