Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R413I215050T0KCAP FILM 0.015UF 10% 1.5KVDC RAD |
1,030 |
|
Datasheet |
Radial | 0.015 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
B32529C0684J189CAP FILM 0.68UF 5% 63VDC RADIAL |
18,144 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.177" W (7.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECW-U2562V16CAP FILM 5600PF 5% 250VDC 1913 |
15,971 |
|
Datasheet |
1913 (4833 Metric) | 5600 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75PF21004030JCAP FILM 10000PF 5% 630VDC RAD |
11,580 |
|
Datasheet |
Radial | 10000 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
FKS3D021002B00JSSDCAP FILM 10000PF 5% 100VDC RAD |
8,699 |
|
Datasheet |
Radial | 10000 pF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 100°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|

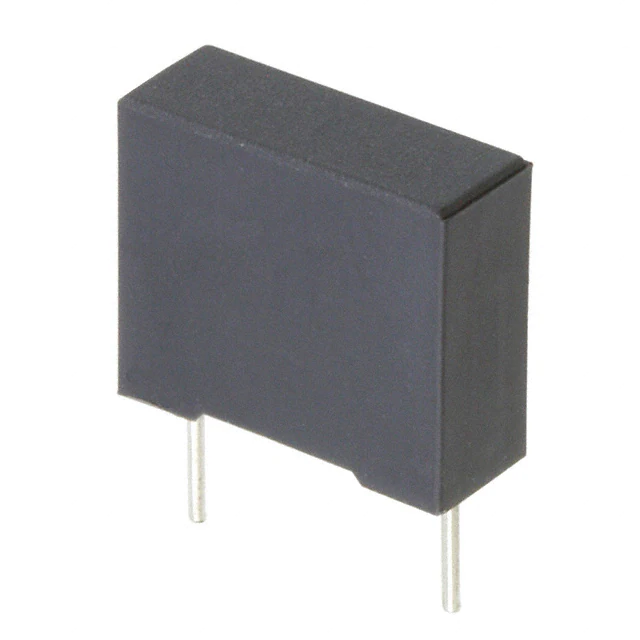

R745F1220AA00JCAP FILM 2200PF 5% 1.6KVDC RAD |
3,830 |
|
Datasheet |
Radial | 2200 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
.jpg)
|
ECH-U1C563JX5CAP FILM 0.056UF 5% 16VDC 1210 |
5,975 |
|
Datasheet |
1210 (3225 Metric) | 0.056 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECH-U1H471JB5CAP FILM 470PF 5% 50VDC 0805 |
5,117 |
|
Datasheet |
0805 (2012 Metric) | 470 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
FKP1U001504B00KSSDCAP FILM 150PF 10% 2KVDC RAD |
4,281 |
|
Datasheet |
Radial | 150 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32620A3473J000CAP FILM 0.047UF 5% 250VDC RAD |
3,623 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 140V | 250V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
B32672L8222J289CAP FILM 2200PF 5% 2KVDC RADIAL |
3,510 |
|
Datasheet |
Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
-H-1.jpg)
|
ECW-U1392JX5CAP FILM 3900PF 5% 100VDC 1206 |
2,763 |
|
Datasheet |
1206 (3216 Metric) | 3900 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
B32672Z6104K000CAP FILM 0.1UF 10% 630VDC RADIAL |
2,740 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | - | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32521C1474K000CAP FILM 0.47UF 10% 100VDC RAD |
2,383 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32621A3104K000CAP FILM 0.1UF 10% 250VDC RADIAL |
2,337 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 140V | 250V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
B32932A3473K000CAP FILM 0.047UF 10% 305VAC RAD |
1,691 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
ECQ-UBAF272MCAP FILM 0.0027UF 20% 300VAC RAD |
1,494 |
|
Datasheet |
Radial | 2700 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1, Y2 | - |
|
|
ECQ-UBAF332MCAP FILM 0.0033UF 20% 300VAC RAD |
1,420 |
|
Datasheet |
Radial | 3300 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1, Y2 | - |
|
B32529C0684J289CAP FILM 0.68UF 5% 63VDC RADIAL |
1,363 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.177" W (7.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
MPX474K305ECAP FILM 0.47UF 10% 305VAC RAD |
20,710 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.768" (19.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
