FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AOD11S60MOSFET N-CH 600V 11A TO252 |
10,126 |
|
Datasheet |
aMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 399mOhm @ 3.8A, 10V | 4.1V @ 250µA | 11 nC @ 10 V | ±30V | 545 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
IXTP80N10TMOSFET N-CH 100V 80A TO220AB |
9,910 |
|
Datasheet |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 10V | 14mOhm @ 25A, 10V | 5V @ 100µA | 60 nC @ 10 V | ±20V | 3040 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDMS007N08LCMOSFET N-CH 80V 14A/84A 8PQFN |
5,456 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 14A (Ta), 84A (Tc) | 4.5V, 10V | 6.7mOhm @ 21A, 10V | 2.5V @ 120µA | 46 nC @ 10 V | ±20V | 3100 pF @ 40 V | - | 2.5W (Ta), 92.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
STL90N10F7MOSFET N-CH 100V 70A POWERFLAT |
1,889 |
|
Datasheet |
DeepGATE™, STripFET™ VII | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 70A (Tc) | 10V | 10.5mOhm @ 8A, 10V | 4V @ 250µA | 39 nC @ 10 V | ±20V | 3550 pF @ 50 V | - | 5W (Ta), 100W (Tc) | 175°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
|
IPP032N06N3GXKSA1MOSFET N-CH 60V 120A TO220-3 |
1,626 |
|
Datasheet |
OptiMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.2mOhm @ 100A, 10V | 4V @ 118µA | 165 nC @ 10 V | ±20V | 13000 pF @ 30 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
STP5NK52ZDMOSFET N-CH 520V 4.4A TO220AB |
1,321 |
|
Datasheet |
SuperMESH™ | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 520 V | 4.4A (Tc) | 10V | 1.5Ohm @ 2.2A, 10V | 4.5V @ 50µA | 16.9 nC @ 10 V | ±30V | 529 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
IQE006NE2LM5CGATMA1MOSFET N-CH 25V 41A/298A PQFN |
9,485 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 41A (Ta), 298A (Tc) | - | 0.65mOhm @ 20A, 10V | 2V @ 250µA | 82.1 nC @ 10 V | ±16V | 5453 pF @ 12 V | - | 2.1W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TTFN-9-1 |
|
SI4488DY-T1-E3MOSFET N-CH 150V 3.5A 8SO |
4,291 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 3.5A (Ta) | 10V | 50mOhm @ 5A, 10V | 2V @ 250µA (Min) | 36 nC @ 10 V | ±20V | - | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
;;2.jpg)
|
STD8NM50NMOSFET N-CH 500V 5A DPAK |
3,272 |
|
Datasheet |
MDmesh™ II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 790mOhm @ 2.5A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±25V | 364 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
NP36P06KDG-E1-AYMOSFET P-CH 60V 36A TO263 |
2,712 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 36A (Tc) | 4.5V, 10V | 29.5mOhm @ 18A, 10V | 2.5V @ 1mA | 54 nC @ 10 V | ±20V | 3100 pF @ 10 V | - | 1.8W (Ta), 56W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-263 |
|
IPA60R180P7XKSA1MOSFET N-CHANNEL 650V 18A TO220 |
696 |
|
Datasheet |
CoolMOS™ P7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Tc) | 10V | 180mOhm @ 5.6A, 10V | 4V @ 280µA | 25 nC @ 10 V | ±20V | 1081 pF @ 400 V | - | 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220 Full Pack |
|
RCX220N25MOSFET N-CH 250V 22A TO220FM |
500 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 22A (Tc) | 10V | 140mOhm @ 11A, 10V | 5V @ 1mA | 60 nC @ 10 V | ±30V | 3200 pF @ 25 V | - | 2.23W (Ta), 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
|
RCX100N25MOSFET N-CH 250V 10A TO220FM |
387 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 10A (Ta) | 10V | - | - | - | ±30V | - | - | 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|

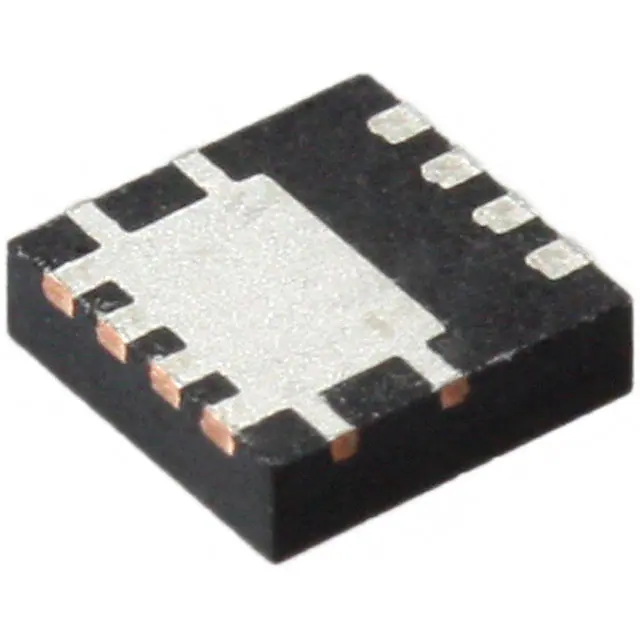

FDMC8321LDCMOSFET N-CH 40V 27A DLCOOL33 |
6,231 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 27A (Ta), 108A (Tc) | 4.5V, 10V | 2.5mOhm @ 27A, 10V | 3V @ 250µA | 60 nC @ 10 V | ±20V | 3965 pF @ 20 V | - | 2.9W (Ta), 56W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Dual Cool ™ 33 |
|
SIR846ADP-T1-GE3MOSFET N-CH 100V 60A PPAK SO-8 |
5,900 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 6V, 10V | 7.8mOhm @ 20A, 10V | 3V @ 250µA | 66 nC @ 10 V | ±20V | 2350 pF @ 50 V | - | 5.4W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SIR870ADP-T1-RE3MOSFET N-CH 100V 60A PPAK SO-8 |
2,583 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 4.5V, 10V | 6.6mOhm @ 20A, 10V | 3V @ 250µA | 80 nC @ 10 V | ±20V | 2866 pF @ 50 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
STB13N60M2MOSFET N-CH 600V 11A D2PAK |
7,590 |
|
Datasheet |
MDmesh™ II Plus | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±25V | 580 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
STP6NK60ZMOSFET N-CH 600V 6A TO220AB |
1,841 |
|
Datasheet |
SuperMESH™ | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 1.2Ohm @ 3A, 10V | 4.5V @ 100µA | 46 nC @ 10 V | ±30V | 905 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
IPP040N08NF2SAKMA1TRENCH 40<-<100V |
729 |
|
Datasheet |
StrongIRFET™ 2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 22A (Ta), 115A (Tc) | 6V, 10V | 4mOhm @ 80A, 10V | 3.8V @ 85µA | 81 nC @ 10 V | ±20V | 3800 pF @ 40 V | - | 3.8W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
PJMP210N65EC_T0_00601650V/ 390MOHM / 10A/ EASY TO DRI |
700 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 19A (Tc) | 10V | 210mOhm @ 9.5A, 10V | 4V @ 250µA | 34 nC @ 10 V | ±30V | 1412 pF @ 400 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB-L |
