FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF6613TRPBFMOSFET N-CH 40V 23A DIRECTFET |
8,349 |
|
Datasheet |
HEXFET® | DirectFET™ Isometric MT | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 23A (Ta), 150A (Tc) | 4.5V, 10V | 3.4mOhm @ 23A, 10V | 2.25V @ 250µA | 63 nC @ 4.5 V | ±20V | 5950 pF @ 15 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DIRECTFET™ MT |
|
NTP6412ANGMOSFET N-CH 100V 58A TO220AB |
3 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 58A (Tc) | 10V | 18.2mOhm @ 58A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 3500 pF @ 25 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
FQB19N20TMMOSFET N-CH 200V 19.4A D2PAK |
2,224 |
|
Datasheet |
QFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 19.4A (Tc) | 10V | 150mOhm @ 9.7A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1600 pF @ 25 V | - | 3.13W (Ta), 140W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
AOT410LMOSFET N-CH 100V 12A/150A TO220 |
988 |
|
Datasheet |
SDMOS™ | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Ta), 150A (Tc) | 7V, 10V | 6.5mOhm @ 20A, 10V | 4V @ 250µA | 129 nC @ 10 V | ±25V | 7950 pF @ 50 V | - | 1.9W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
RSH070P05GZETBMOSFET P-CH 45V 7A 8SOP |
6,100 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 45 V | 7A (Ta) | 4V, 10V | 27mOhm @ 7A, 10V | 2.5V @ 1mA | 47.6 nC @ 5 V | ±20V | 4100 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SI7110DN-T1-GE3MOSFET N-CH 20V 13.5A PPAK1212-8 |
5,255 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 13.5A (Ta) | 4.5V, 10V | 5.3mOhm @ 21.1A, 10V | 2.5V @ 250µA | 21 nC @ 4.5 V | ±20V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
R6006KND3TL1MOSFET N-CH 600V 6A TO252 |
2,633 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 830mOhm @ 3A, 10V | 5.5V @ 1mA | 12 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
IRFI9Z14GPBFMOSFET P-CH 60V 5.3A TO220-3 |
1,760 |
|
- |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 5.3A (Tc) | 10V | 500mOhm @ 3.2A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 27W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IRFI510GPBFMOSFET N-CH 100V 4.5A TO220-3 |
919 |
|
- |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.5A (Tc) | 10V | 540mOhm @ 2.7A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 27W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
;;2.jpg)
|
STD7NM60NMOSFET N-CH 600V 5A DPAK |
11,162 |
|
Datasheet |
MDmesh™ II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 900mOhm @ 2.5A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±25V | 363 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
TSM7ND60CIMOSFET N-CH 600V 7A ITO220 |
3,945 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 1.2Ohm @ 2A, 10V | 3.8V @ 250µA | 25 nC @ 10 V | ±30V | 1108 pF @ 50 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
SUD35N10-26P-GE3MOSFET N-CH 100V 35A TO252 |
1,914 |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 7V, 10V | 26mOhm @ 12A, 10V | 4.4V @ 250µA | 47 nC @ 10 V | ±20V | 2000 pF @ 12 V | - | 8.3W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
R6015KNXMOSFET N-CH 600V 15A TO220FM |
454 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 290mOhm @ 6.5A, 10V | 5V @ 1mA | 27.5 nC @ 10 V | ±20V | 1050 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
CSD18512Q5BTMOSFET N-CH 40V 211A 8VSON |
350 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 211A (Tc) | 4.5V, 10V | 1.6mOhm @ 30A, 10V | 2.2V @ 250µA | 98 nC @ 10 V | ±20V | 7120 pF @ 20 V | - | 139W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSON-CLIP (5x6) |
|
|
IXTP60N10TMOSFET N-CH 100V 60A TO220AB |
255 |
|
Datasheet |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 10V | 18mOhm @ 25A, 10V | 4.5V @ 50µA | 49 nC @ 10 V | ±30V | 2650 pF @ 25 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|

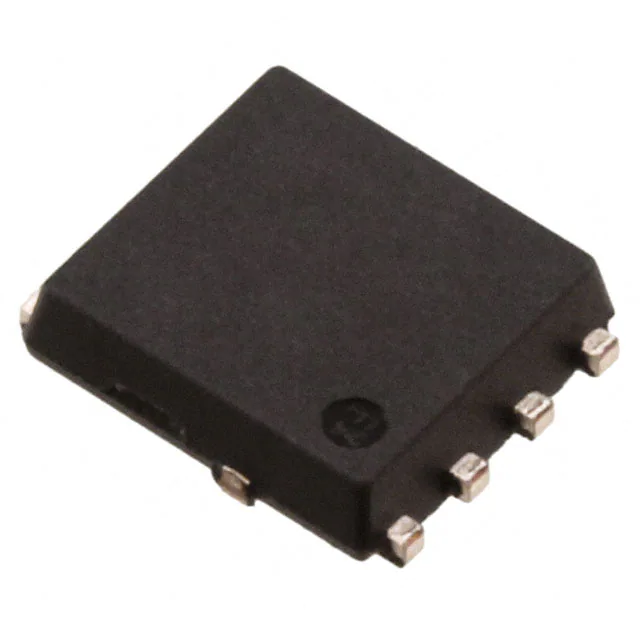

NP75N04YLG-E1-AYABU / MOSFET |
2,929 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Ta) | 4.5V, 10V | 4.8mOhm @ 38A, 10V | 2.5V @ 250µA | 116 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 138W (Ta) | 175°C | - | - | Surface Mount | 8-HSON (5x5.4) |
|
SIHB11N80AE-GE3MOSFET N-CH 800V 8A D2PAK |
972 |
|
Datasheet |
E | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 450mOhm @ 5.5A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±30V | 804 pF @ 100 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
R6520KNX3C16650V 20A, TO-220AB, HIGH-SPEED S |
865 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 205mOhm @9.5A, 10V | 5V @ 630µA | 40 nC @ 10 V | ±20V | 1550 pF @ 25 V | - | 220W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220AB |
,TO-263AB.jpg)
|
CSD18511KTTTMOSFET N-CH 40V 110A/194A DDPAK |
554 |
|
Datasheet |
NexFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Ta), 194A (Tc) | 4.5V, 10V | 2.6mOhm @ 100A, 10V | 2.4V @ 250µA | 64 nC @ 10 V | ±20V | 5940 pF @ 20 V | - | 188W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
STD6N80K5MOSFET N-CH 800V 4.5A DPAK |
10,455 |
|
Datasheet |
SuperMESH5™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.5A (Tc) | 10V | 1.6Ohm @ 2A, 10V | 5V @ 100µA | 7.5 nC @ 10 V | 30V | 255 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
