FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPH3206LSGBGANFET N-CH 650V 16A 3PQFN |
3,951 |
|
Datasheet |
- | 3-PowerDFN | Tray | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 16A (Tc) | 8V | 180mOhm @ 10A, 8V | 2.6V @ 500µA | 6.2 nC @ 4.5 V | ±18V | 720 pF @ 480 V | - | 81W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PQFN (8x8) |
|
SI3139KL3-TPMOSFET P-CH 20V 660MA DFN1006-3 |
9,873 |
|
Datasheet |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 660mA (Ta) | 1.8V, 4.5V | 500mOhm @ 150mA, 4.5V | 1.1V @ 250µA | - | ±12V | 113 pF @ 16 V | - | 100mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
|
SI3134KL3-TPMOSFET N-CH 20V 750MA DFN1006-3 |
3,511 |
|
Datasheet |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 750mA (Ta) | 1.8V, 4.5V | 500mOhm @ 150mA, 4.5V | 1.1V @ 250µA | - | ±12V | 120 pF @ 16 V | - | 100mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
|
IPC65SR048CFDAE8206X2SA2MOSFET N-CH |
9,939 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AON6405LMOSFET P-CH 30V 15A/30A 8DFN |
5,160 |
|
- |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 30A (Tc) | 4.5V, 10V | 7mOhm @ 20A, 10V | 1.6V @ 250µA | 105 nC @ 10 V | ±20V | 5500 pF @ 15 V | - | 2.5W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
AO6401MOSFET P-CH 30V 5A 6TSOP |
9,986 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 5A (Ta) | 2.5V, 10V | 47mOhm @ 5A, 10V | 1.3V @ 250µA | 17 nC @ 10 V | ±12V | 780 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
LSS050P03FP8TB1MOSFET P-CH 30V 5A SOP8 |
8,450 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RSS070P05TB1MOSFET P-CH 45V 7A 8SOP |
2,293 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 45 V | 7A (Ta) | 4V, 10V | 27mOhm @ 7A, 10V | 2.5V @ 1mA | 47.6 nC @ 5 V | ±20V | 4100 pF @ 10 V | - | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
RSS065N03TB1MOSFET N-CH 30V 6.5A 8SOP |
8,115 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4V, 10V | 27mOhm @ 6.5A, 10V | 2.5V @ 1mA | 8.6 nC @ 5 V | ±20V | 430 pF @ 10 V | - | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
RSS060P05TB1MOSFET P-CH 50V 6A 8SOP |
7,698 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSS070N05TB1MOSFET N-CH 45V 7A 8SOP |
4,144 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 45 V | 7A (Ta) | 4.5V, 10V | 25mOhm @ 7A, 10V | 2.5V @ 1mA | 16.8 nC @ 5 V | ±20V | 1000 pF @ 10 V | - | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
RRS075P03Z00TB1MOSFET P-CH 30V 7.5A 8SOP |
3,625 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSS100N03TB1MOSFET N-CH 30V 10A 8SOP |
3,695 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 13.3mOhm @ 10A, 10V | 2.5V @ 1mA | 20 nC @ 5 V | 20V | 1070 pF @ 10 V | - | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|

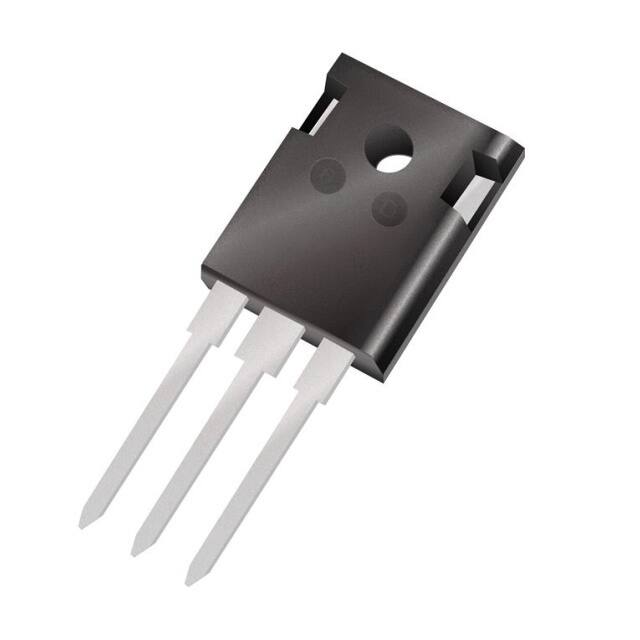

UF3C120150K3SSICFET N-CH 1200V 18.4A TO247-3 |
5,602 |
|
- |
- | TO-247-3 | Tube | Obsolete | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 18.4A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-247-3 |
|

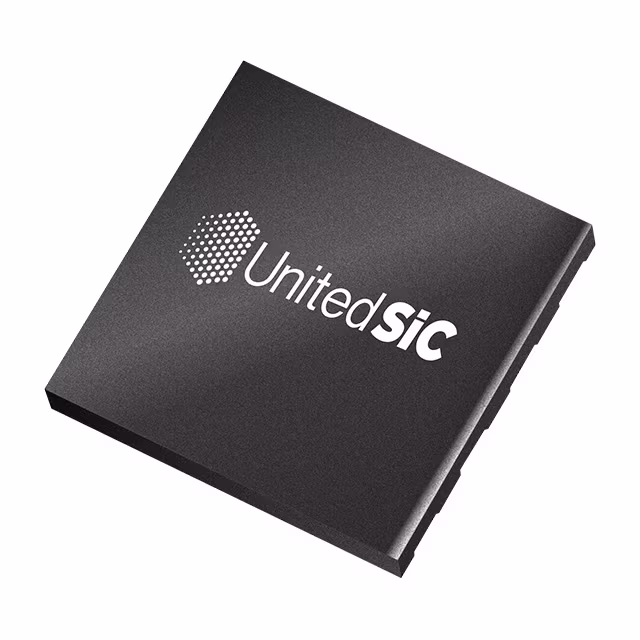

UF3SC065040D8SSICFET N-CH 650V 18A 4DFN |
6,925 |
|
Datasheet |
- | 4-PowerTSFN | Tape & Reel (TR) | Obsolete | N-Channel | SiCFET (Cascode SiCJFET) | 650 V | 18A (Tc) | 12V | 58mOhm @ 20A, 12V | 6V @ 10mA | 43 nC @ 12 V | ±25V | 1500 pF @ 100 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-DFN (8x8) |
|
|
UF3SC065030D8SSICFET N-CH 650V 18A 4DFN |
7,817 |
|
Datasheet |
- | 4-PowerTSFN | Tape & Reel (TR) | Obsolete | N-Channel | SiCFET (Cascode SiCJFET) | 650 V | 18A (Tc) | 12V | 42mOhm @ 20A, 12V | 6V @ 10mA | 43 nC @ 12 V | ±25V | 1500 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-DFN (8x8) |
|
BUK7908-40AIE127N-CHANNEL POWER MOSFET |
8,312 |
|
Datasheet |
TrenchMOS™ | TO-220-5 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 8mOhm @ 50A, 10V | 4V @ 1mA | 84 nC @ 10 V | ±20V | 3140 pF @ 25 V | Current Sensing | 221W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-5 |
|
BUK661R6-30C118N-CHANNEL POWER MOSFET |
8,109 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 10V | 1.6mOhm @ 25A, 10V | 2.8V @ 1mA | 229 nC @ 10 V | ±16V | 14964 pF @ 25 V | - | 306W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
BUK98180-100A/CU115N-CHANNEL POWER MOSFET |
5,611 |
|
Datasheet |
- | TO-261-4, TO-261AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.6A (Tc) | 4.5V, 10V | 173mOhm @ 5A, 10V | 2V @ 1mA | - | ±10V | 619 pF @ 25 V | - | 8W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
|
IPW80R290C3AN-CHANNEL AUTOMOTIVE MOSFET |
9,726 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Tc) | 10V | 290mOhm @ 11A, 10V | 3.9V @ 1mA | 117 nC @ 10 V | ±20V | 2300 pF @ 100 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3 |
