FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN2400UFB4-7BMOSFET N-CH X2-DFN1006-3 |
5,711 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 750mA (Ta) | 1.8V, 4.5V | 550mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.5 nC @ 4.5 V | ±12V | 36 pF @ 16 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-3 |
|
|
DMN2400UFB4-7RMOSFET N-CH X2-DFN1006-3 |
6,123 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 750mA (Ta) | 1.8V, 4.5V | 550mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.5 nC @ 4.5 V | ±12V | 36 pF @ 16 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-3 |
|
|
DMN2500UFB4-7BMOSFET N-CH X2-DFN1006-3 |
3,483 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 810mA (Ta) | 1.8V, 4.5V | 400mOhm @ 600mA, 4.5V | 1V @ 250µA | 0.737 nC @ 4.5 V | ±6V | 60.67 pF @ 16 V | - | 460mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-3 |
|
|
DMN62D0LFD-13MOSFET N-CH X1-DFN1212-3 |
5,047 |
|
- |
- | 3-UDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 310mA (Ta) | 1.8V, 4V | 2Ohm @ 100mA, 4V | 1V @ 250µA | 0.5 nC @ 4.5 V | ±20V | 31 pF @ 25 V | - | 480mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1212-3 |
|
|
DMS3014SFG-13MOSFET N-CH POWERDI3333-8 |
4,785 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 4.5V, 10V | 13mOhm @ 10.4A, 10V | 2.2V @ 250µA | 45.7 nC @ 10 V | ±12V | 4310 pF @ 15 V | Schottky Diode (Body) | 1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
NVD5807NT4G-VF01MOSFET N-CH 40V 23A DPAK |
6,786 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 23A (Tc) | 4.5V, 10V | 31mOhm @ 5A, 10V | 2.5V @ 250µA | 20 nC @ 10 V | ±20V | 603 pF @ 25 V | - | 33W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
NVD6416ANLT4GMOSFET N-CH 100V 19A DPAK |
9,575 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Tc) | 4.5V, 10V | 74mOhm @ 19A, 10V | 2.2V @ 250µA | 40 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK-3 |
|
NVD6495NLT4GMOSFET N-CH 100V 25A DPAK |
9,516 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A (Tc) | 4.5V, 10V | 50mOhm @ 10A, 10V | 2V @ 250µA | 35 nC @ 10 V | ±20V | 1024 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|

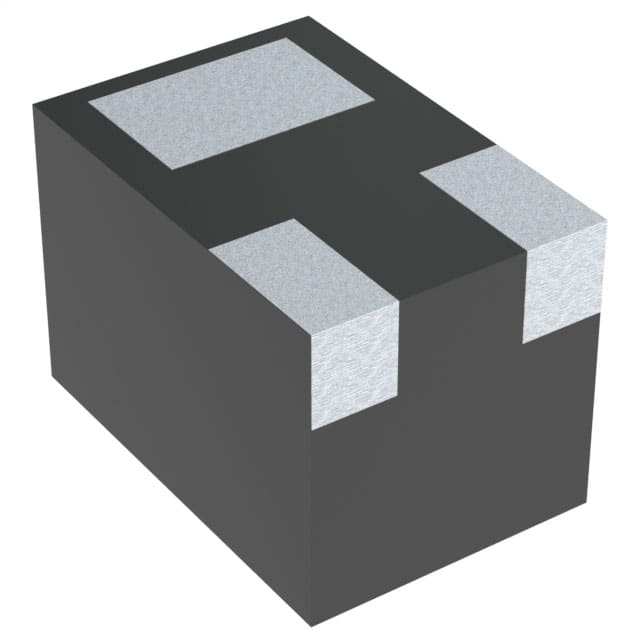

NTNS5K0P021ZTCGMOSFET P-CH 20V 127MA 3XDFN |
8,856 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 127mA (Ta) | 1.5V, 4.5V | 5Ohm @ 100mA, 4.5V | 1V @ 250µA | - | ±8V | 12.8 pF @ 15 V | - | 125mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-XDFN (0.42x0.62) |
|
|
TSM2311CX-01 RFGMOSFET P-CH 20V 4A SOT23 |
5,732 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 4.5V | 55mOhm @ 4A, 4.5V | 1.4V @ 250µA | 9 nC @ 4.5 V | ±8V | 640 pF @ 6 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
TSM10N60CZ C0GMOSFET N-CH 600V 10A TO220 |
8,092 |
|
Datasheet |
- | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 750mOhm @ 5A, 10V | 4V @ 250µA | 45.8 nC @ 10 V | ±30V | 1738 pF @ 25 V | - | 166W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TSM22P10CI C0GMOSFET P-CH 100V 22A ITO220 |
5,265 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 22A (Tc) | 4.5V, 10V | 140mOhm @ 20A, 10V | 3V @ 250µA | 42 nC @ 10 V | ±25V | 2250 pF @ 30 V | - | 48W (Tc) | 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
TSM22P10CZ C0GMOSFET P-CH 100V 22A TO220 |
8,050 |
|
Datasheet |
- | TO-220-3 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 22A (Tc) | 4.5V, 10V | 140mOhm @ 20A, 10V | 3V @ 250µA | 42 nC @ 10 V | ±25V | 2250 pF @ 30 V | - | 125W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TSM230N06CI C0GMOSFET N-CH 60V 50A ITO220 |
6,455 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 4.5V, 10V | 23mOhm @ 20A, 10V | 2.5V @ 250µA | 28 nC @ 10 V | ±20V | 1680 pF @ 25 V | - | 42W (Tc) | 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
TSM480P06CI C0GMOSFET P-CH 60V 20A ITO220 |
6,126 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 48mOhm @ 8A, 10V | 2.2V @ 250µA | 22.4 nC @ 10 V | ±20V | 1250 pF @ 30 V | - | 27W (Tc) | -50°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
TSM480P06CZ C0GMOSFET P-CH 60V 20A TO220 |
9,265 |
|
Datasheet |
- | TO-220-3 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 48mOhm @ 8A, 10V | 2.2V @ 250µA | 22.4 nC @ 10 V | ±20V | 1250 pF @ 30 V | - | 66W (Tc) | -50°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TSM680P06CI C0GMOSFET P-CH 60V 18A ITO220 |
9,949 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | 4.5V, 10V | 68mOhm @ 6A, 10V | 2.2V @ 250µA | 16.4 nC @ 10 V | ±20V | 870 pF @ 30 V | - | 17W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
TSM680P06CZ C0GMOSFET P-CH 60V 18A TO220 |
3,949 |
|
Datasheet |
- | TO-220-3 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | 4.5V, 10V | 68mOhm @ 6A, 10V | 2.2V @ 250µA | 16.4 nC @ 10 V | ±20V | 870 pF @ 30 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
2N7000-APMOSFET N-CH 60V 200MA TO92 |
3,899 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220mA (Ta) | 10V | 5Ohm @ 500mA, 10V | 3V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 625mW (Ta) | -55°C ~ 150°C | - | - | Through Hole | TO-92 |
|
MCMP06-TPMOSFET P-CH 2A DFN2020-6U |
5,647 |
|
- |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | - | - | 2A (Ta) | - | 110mOhm @ 2.8A, 4.5V | 1V @ 250µA | - | - | - | Schottky Diode (Isolated) | - | 150°C (TJ) | - | - | Surface Mount | DFN2020-6U |
