FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FK4B01100L1MOSFET N-CH 12V 3.4A XLGA004 |
6,465 |
|
Datasheet |
- | 4-XFLGA, CSP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 3.4A (Ta) | 1.5V, 4.5V | 30mOhm @ 1.5A, 4.5V | 1V @ 236µA | 5.8 nC @ 4.5 V | ±8V | 275 pF @ 10 V | - | 360mW (Ta) | -40°C ~ 85°C (TA) | - | - | Surface Mount | XLGA004-W-0808-RA01 |
|
FJ4B01110L1MOSFET P-CH 12V 1.4A ALGA004 |
9,063 |
|
Datasheet |
- | 4-XFLGA, CSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 1.4A (Ta) | 1.5V, 4.5V | 153mOhm @ 700mA, 4.5V | 1V @ 598µA | 3.3 nC @ 4.5 V | ±8V | 226 pF @ 10 V | - | 340mW (Ta) | -40°C ~ 85°C (TA) | - | - | Surface Mount | ALGA004-W-0606-RA01 |
|
|
FJ4B01100L1MOSFET P-CH 12V 2.2A XLGA004 |
7,918 |
|
Datasheet |
- | 4-XFLGA, CSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.2A (Ta) | 1.5V, 4.5V | 74mOhm @ 1.5A, 4.5V | 1V @ 1.2mA | 7 nC @ 4.5 V | ±8V | 459 pF @ 10 V | - | 360mW (Ta) | -40°C ~ 85°C (TA) | - | - | Surface Mount | XLGA004-W-0808-RA01 |
|
FJ4B01120L1MOSFET P-CH 12V 2.6A ULGA004 |
2,403 |
|
Datasheet |
- | 4-XFLGA, CSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.6A (Ta) | 1.5V, 4.5V | 51mOhm @ 2A, 4.5V | 1V @ 2mA | 10.7 nC @ 4.5 V | ±8V | 814 pF @ 10 V | - | 370mW (Ta) | -40°C ~ 85°C (TA) | - | - | Surface Mount | ULGA004-W-1010-RA01 |
|
CZDM1003N BKMOSFET N-CH 100V 3A SOT-223 |
2,260 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 3A (Ta) | 10V | 150mOhm @ 2A, 10V | 4V @ 250µA | 15 nC @ 10 V | 20V | 975 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
SIA430DJ-T4-GE3MOSFET N-CH 20V 12A/12A PPAK |
2,091 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 12A (Ta), 12A (Tc) | 4.5V, 10V | 13.5mOhm @ 7A, 10V | 3V @ 250µA | 18 nC @ 10 V | ±20V | 800 pF @ 10 V | - | 3.5W (Ta), 19.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
|
SIA444DJT-T4-GE3MOSFET N-CH 30V 11A/12A PPAK |
9,676 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 12A (Tc) | 4.5V, 10V | 17mOhm @ 7.4A, 10V | 2.2V @ 250µA | 15 nC @ 10 V | ±20V | 560 pF @ 15 V | - | 3.5W (Ta), 19W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
|
SIA462DJ-T4-GE3MOSFET N-CH 30V 12A/12A PPAK |
8,107 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 12A (Tc) | 4.5V, 10V | 18mOhm @ 9A, 10V | 2.4V @ 250µA | 17 nC @ 10 V | ±20V | 570 pF @ 15 V | - | 3.5W (Ta), 19W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
MCU04N60-TPMOSFET N-CH 600V 4A DPAK |
9,510 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Ta) | 10V | 3Ohm @ 2A, 10V | 4V @ 250µA | 10 nC @ 10 V | ±30V | 760 pF @ 25 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
SQM30010EL_GE3MOSFET N-CH 30V 120A TO263 |
5,229 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 10V | 1.35mOhm @ 40A, 10V | 2.5V @ 250µA | 450 nC @ 10 V | ±20V | 28000 pF @ 15 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
IRFC430MOSFET N-CH 500V TO PKG |
3,614 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AO4407MOSFET P-CH 30V 12A 8SOIC |
8,384 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 5V, 20V | 13mOhm @ 12A, 20V | 2.8V @ 250µA | 36 nC @ 10 V | ±25V | 2600 pF @ 15 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
PMN230ENEXMOSFET N-CH 60V 1.6A 6TSOP |
5,078 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.6A (Ta) | 4.5V, 10V | 222mOhm @ 1.6A, 10V | 2.7V @ 250µA | 5 nC @ 10 V | ±20V | 177 pF @ 30 V | - | 475mW (Ta), 3.9W (Tc) | 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
AOL1454GMOSFET N-CH 40V 25A/46A ULTRASO8 |
6,238 |
|
Datasheet |
AlphaSGT™ | 3-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 25A (Ta), 46A (Tc) | 4.5V, 10V | 5.9mOhm @ 20A, 10V | 2.5V @ 250µA | 30 nC @ 10 V | ±20V | 1480 pF @ 20 V | - | 6.2W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | UltraSO-8™ |
|

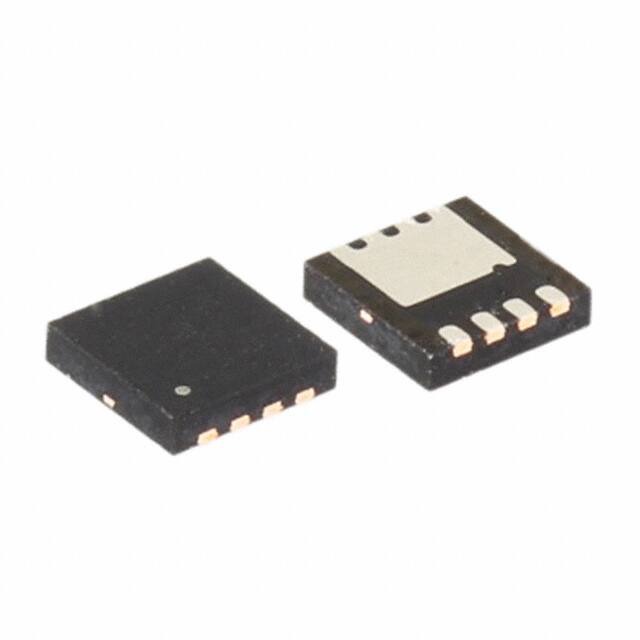

FDMC4436BZMOSFET P-CH |
5,956 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IPD350N06LGBUMA1MOSFET N-CH 60V 29A TO252-3 |
9,066 |
|
- |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 29A (Tc) | 4.5V, 10V | 35mOhm @ 29A, 10V | 2V @ 28µA | 13 nC @ 5 V | ±20V | 800 pF @ 30 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
DMN1023UCB4-7MOSFET N CH 5.1A U-WLB1010-4 |
9,463 |
|
- |
- | 4-UFBGA, WLBGA | Tape & Reel (TR) | Obsolete | N-Channel | - | 12 V | 5.1A (Ta) | 1.8V, 4.5V | 23mOhm @ 1A, 4.5V | 1.2V @ 250µA | 2.3 nC @ 4.5 V | ±8V | 288 pF @ 6 V | - | 800mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-WLB1010-4 (Type C) |
|
DMP3018SFVQ-13MOSFET P-CH 30V 11A PWRDI3333 |
2,119 |
|
- |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 35A (Tc) | 4.5V, 10V | 12mOhm @ 11.5A, 10V | 3V @ 250µA | 51 nC @ 10 V | ±25V | 2147 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI3333-8 (Type UX) |
|
|
DMP3018SFVQ-7MOSFET P-CH 30V 11A PWRDI3333 |
4,207 |
|
- |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 35A (Tc) | 4.5V, 10V | 12mOhm @ 11.5A, 10V | 3V @ 250µA | 51 nC @ 10 V | ±25V | 2147 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI3333-8 (Type UX) |
.jpg)
|
IRL40T209ATMA1MOSFET N-CH 40V 300A 8HSOF |
4,680 |
|
Datasheet |
StrongIRFET™ | 8-PowerSFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 4.5V, 10V | 0.72mOhm @ 100A, 10V | 2.4V @ 250µA | 269 nC @ 4.5 V | ±20V | 16000 pF @ 20 V | - | 500W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-8-1 |
