FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF630NLMOSFET N-CH 200V 9.3A TO262 |
2,202 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.3A (Tc) | 10V | 300mOhm @ 5.4A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±20V | 575 pF @ 25 V | - | 82W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
IRFR3708MOSFET N-CH 30V 61A DPAK |
9,096 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 61A (Tc) | 2.8V, 10V | 12.5mOhm @ 15A, 10V | 2V @ 250µA | 24 nC @ 4.5 V | ±12V | 2417 pF @ 15 V | - | 87W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
;;3.jpg)
|
IRFU12N25DMOSFET N-CH 250V 14A IPAK |
4,875 |
|
Datasheet |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 260mOhm @ 8.4A, 10V | 5V @ 250µA | 35 nC @ 10 V | ±30V | 810 pF @ 25 V | - | 144W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
|
IRF3709LMOSFET N-CH 30V 90A TO262 |
3,087 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 4.5V, 10V | 9mOhm @ 15A, 10V | 3V @ 250µA | 41 nC @ 5 V | ±20V | 2672 pF @ 16 V | - | 3.1W (Ta), 120W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262 |
|
|
IRF3708LMOSFET N-CH 30V 62A TO262 |
6,811 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 62A (Tc) | 2.8V, 10V | 12mOhm @ 15A, 10V | 2V @ 250µA | 24 nC @ 4.5 V | ±12V | 2417 pF @ 15 V | - | 87W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
IRF6601MOSFET N-CH 20V 26A DIRECTFET |
6,794 |
|
Datasheet |
HEXFET® | DirectFET™ Isometric MT | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 26A (Ta), 85A (Tc) | 4.5V, 10V | 3.8mOhm @ 26A, 10V | 2.2V @ 250µA | 45 nC @ 4.5 V | ±20V | 3440 pF @ 15 V | - | 3.6W (Ta), 42W (Tc) | - | - | - | Surface Mount | DIRECTFET™ MT |
|
|
IRF6602MOSFET N-CH 20V 11A DIRECTFET |
3,539 |
|
Datasheet |
HEXFET® | DirectFET™ Isometric MQ | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 11A (Ta), 48A (Tc) | 4.5V, 10V | 13mOhm @ 11A, 10V | 2.3V @ 250µA | 18 nC @ 4.5 V | ±20V | 1420 pF @ 10 V | - | 2.3W (Ta), 42W (Tc) | - | - | - | Surface Mount | DIRECTFET™ MQ |
|
IRF7453MOSFET N-CH 250V 2.2A 8SO |
3,313 |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 2.2A (Ta) | 10V | 230mOhm @ 1.3A, 10V | 5.5V @ 250µA | 38 nC @ 10 V | ±30V | 930 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|

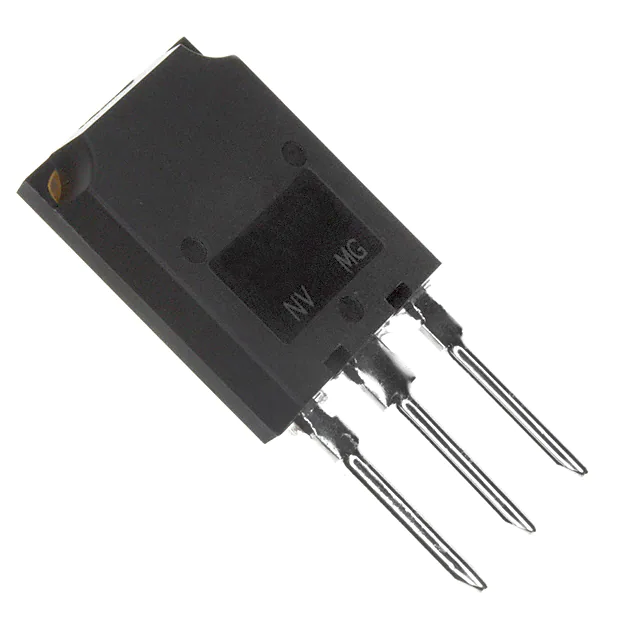

IRFPS43N50KMOSFET N-CH 500V 47A SUPER247 |
3,949 |
|
- |
- | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 47A (Tc) | 10V | 90mOhm @ 28A, 10V | 5V @ 250µA | 350 nC @ 10 V | ±30V | 8310 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
IRFB18N50KMOSFET N-CH 500V 17A TO220AB |
7,808 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 17A (Tc) | 10V | 290mOhm @ 10A, 10V | 5V @ 250µA | 120 nC @ 10 V | ±30V | 2830 pF @ 25 V | - | 220W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRFP23N50LMOSFET N-CH 500V 23A TO247-3 |
9,193 |
|
- |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 23A (Tc) | 10V | 235mOhm @ 14A, 10V | 5V @ 250µA | 150 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 370W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
IRF7701MOSFET P-CH 12V 10A 8TSSOP |
4,540 |
|
Datasheet |
HEXFET® | 8-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 10A (Tc) | 1.8V, 4.5V | 11mOhm @ 10A, 4.5V | 1.2V @ 250µA | 100 nC @ 4.5 V | ±8V | 5050 pF @ 10 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
IRF644NSMOSFET N-CH 250V 14A D2PAK |
9,121 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IRF7707MOSFET P-CH 20V 7A 8TSSOP |
5,985 |
|
Datasheet |
HEXFET® | 8-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 7A (Ta) | 2.5V, 4.5V | 22mOhm @ 7A, 4.5V | 1.2V @ 250µA | 47 nC @ 4.5 V | ±12V | 2361 pF @ 15 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
IRF644NMOSFET N-CH 250V 14A TO220AB |
8,563 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRF1407STRRMOSFET N-CH 75V 100A D2PAK |
6,861 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 100A (Tc) | 10V | 7.8mOhm @ 78A, 10V | 4V @ 250µA | 250 nC @ 10 V | ±20V | 5600 pF @ 25 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRF630NSTRRMOSFET N-CH 200V 9.3A D2PAK |
6,614 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.3A (Tc) | 10V | 300mOhm @ 5.4A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±20V | 575 pF @ 25 V | - | 82W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRF644NSTRLMOSFET N-CH 250V 14A D2PAK |
2,491 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IRF644NSTRRMOSFET N-CH 250V 14A D2PAK |
6,612 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IRF7822TRLMOSFET N-CH 30V 18A 8SO |
7,587 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V | 6.5mOhm @ 15A, 4.5V | 1V @ 250µA | 60 nC @ 5 V | ±12V | 5500 pF @ 16 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
