FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN2005UPS-13MOSFET N-CH 20V 20A POWERDI5060 |
2,292 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 20A (Ta), 100A (Tc) | 2.5V, 4.5V | 4.6mOhm @ 13.5A, 4.5V | 1.2V @ 250µA | 142 nC @ 10 V | ±12V | 5337 pF @ 10 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
CSD13381F4TMOSFET N-CH 12V 2.1A 3PICOSTAR |
2,084 |
|
Datasheet |
FemtoFET™ | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 2.1A (Ta) | 1.8V, 4.5V | 180mOhm @ 500mA, 4.5V | 1.1V @ 250µA | 1.4 nC @ 4.5 V | 8V | 200 pF @ 6 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
;;2.jpg)
|
STD5N60DM2MOSFET N-CH 600V 3.5A DPAK |
1,037 |
|
Datasheet |
MDmesh™ DM2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.5A (Tc) | 10V | 1.55Ohm @ 1.75A, 10V | 5V @ 250µA | 8.6 nC @ 10 V | ±30V | 375 pF @ 100 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
MCU20N06A-TPMOSFET N-CH 60V 20A DPAK |
21,485 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tj) | 10V | 45mOhm @ 20A, 10V | 3V @ 250µA | 12 nC @ 10 V | ±20V | 500 pF @ 30 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
SI3493BDV-T1-BE3P-CHANNEL 20-V (D-S) MOSFET |
8,402 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7A (Ta), 8A (Tc) | 1.8V, 4.5V | 27.5mOhm @ 7A, 4.5V | 900mV @ 250µA | 43.5 nC @ 5 V | ±8V | 1805 pF @ 10 V | - | 2.08W (Ta), 2.97W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SISH617DN-T1-GE3MOSFET P-CH 30V 13.9A/35A PPAK |
8,132 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8SH | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 13.9A (Ta), 35A (Tc) | 4.5V, 10V | 12.3mOhm @ 13.9A, 10V | 2.5V @ 250µA | 59 nC @ 10 V | ±25V | 1800 pF @ 15 V | - | 3.7W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8SH |
|

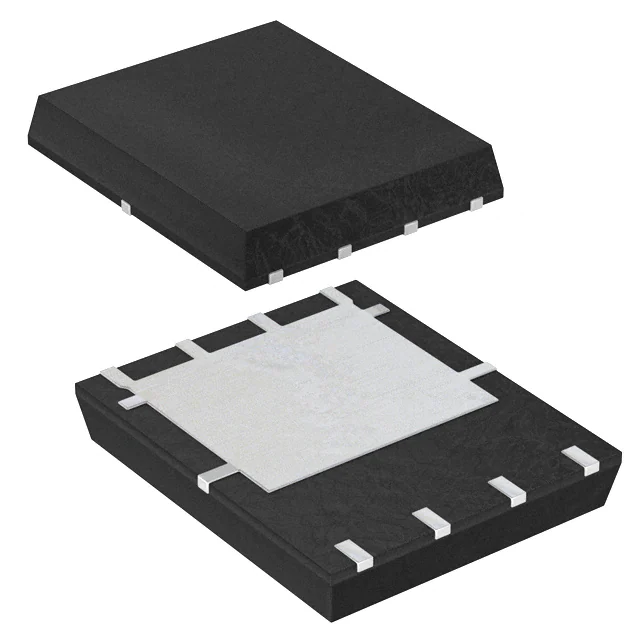

RS1E240GNTBMOSFET N-CH 30V 24A 8HSOP |
8,128 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 72A (Tc) | 4.5V, 10V | 3.3mOhm @ 24A, 10V | 2.5V @ 1mA | 23 nC @ 10 V | ±20V | 1500 pF @ 15 V | - | 3W (Ta), 27W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSOP |
|
DMTH4005SK3Q-13MOSFET N-CH 40V 95A TO252 |
6,923 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 10V | 4.5mOhm @ 50A, 10V | 4V @ 250µA | 49.1 nC @ 10 V | ±20V | 3062 pF @ 20 V | - | 2.1W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
SI3493BDV-T1-GE3MOSFET P-CH 20V 8A 6TSOP |
5,540 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Tc) | 1.8V, 4.5V | 27.5mOhm @ 7A, 4.5V | 900mV @ 250µA | 43.5 nC @ 5 V | ±8V | 1805 pF @ 10 V | - | 2.08W (Ta), 2.97W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
ECH8420-TL-HMOSFET N-CH 20V 14A 8ECH |
4,470 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 14A (Ta) | 1.8V, 4.5V | 6.8mOhm @ 7A, 4.5V | - | 29 nC @ 4.5 V | ±12V | 2430 pF @ 10 V | - | 1.6W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-ECH |
|
ISC058N04NM5ATMA140V 5.8M OPTIMOS MOSFET SUPERSO8 |
27,664 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 17A (Ta), 63A (Tc) | 7V, 10V | 5.8mOhm @ 31A, 10V | 3.4V @ 13µA | 16 nC @ 10 V | ±20V | 1100 pF @ 20 V | - | 3W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TDSON-8 FL |
|
SQS486CENW-T1_GE3AUTOMOTIVE N-CHANNEL 40 V (D-S) |
17,918 |
|
- |
TrenchFET® Gen IV | PowerPAK® 1212-8W | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Tc) | 4.5V, 10V | 5.1mOhm @ 10A, 10V | 2.2V @ 250µA | 53 nC @ 10 V | ±20V | 2950 pF @ 25 V | - | 62.5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 1212-8W |
|
SUD80460E-GE3MOSFET N-CH 150V 42A TO252AA |
11,833 |
|
Datasheet |
ThunderFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 42A (Tc) | 10V | 44.7mOhm @ 8.3A, 10V | 4V @ 250µA | 16 nC @ 10 V | ±20V | 560 pF @ 50 V | - | 65.2W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
STQ2HNK60ZR-APMOSFET N-CH 600V 500MA TO92-3 |
7,663 |
|
Datasheet |
SuperMESH™ | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 500mA (Tc) | 10V | 4.8Ohm @ 1A, 10V | 4.5V @ 50µA | 15 nC @ 10 V | ±30V | 280 pF @ 25 V | - | 3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
SIJA74DP-T1-GE3MOSFET N-CH 40V 24A/81.2A PPAK |
3,121 |
|
Datasheet |
- | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 24A (Ta), 81.2A (Tc) | - | 3.99mOhm @ 10A, 10V | 2.4V @ 250µA | 41 nC @ 10 V | +20V, -16V | 2000 pF @ 20 V | - | 4.1W (Ta), 46.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
,TO-226_straightlead.jpg)
|
TN0110N3-G-P002MOSFET N-CH 100V 350MA TO92-3 |
1,864 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 350mA (Tj) | 4.5V, 10V | 3Ohm @ 500mA, 10V | 2V @ 500µA | - | ±20V | 60 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
BUK9Y25-60E,115MOSFET N-CH 60V 34A LFPAK56 |
48,908 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 34A (Tc) | 5V | 21.5mOhm @ 10A, 10V | 2.1V @ 1mA | 12 nC @ 5 V | ±10V | 1500 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
MCU20N10-TPMOSFET N-CH 100V DPAK |
15,447 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A | 4.5V, 10V | 48mOhm @ 10A, 10V | 3V @ 250µA | 53 nC @ 10 V | ±20V | 2014 pF @ 50 V | - | 47W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
TPN7R006PL,L1QMOSFET N-CH 60V 54A 8TSON |
9,946 |
|
Datasheet |
U-MOSIX-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 54A (Tc) | 4.5V, 10V | 7mOhm @ 27A, 10V | 2.5V @ 200µA | 20 nC @ 10 V | ±20V | 1875 pF @ 30 V | - | 630mW (Ta), 75W (Tc) | 175°C | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
TPN3300ANH,LQMOSFET N-CH 100V 9.4A 8TSON |
7,306 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.4A (Tc) | 10V | 33mOhm @ 4.7A, 10V | 4V @ 100µA | 11 nC @ 10 V | ±20V | 880 pF @ 50 V | - | 700mW (Ta), 27W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.3x3.3) |
